Kabel Audio Balanced | Federal Stereo Elite EM222 [100m]

Detail Kabel Audio Balanced | Federal Stereo Elite EM222 [100m]

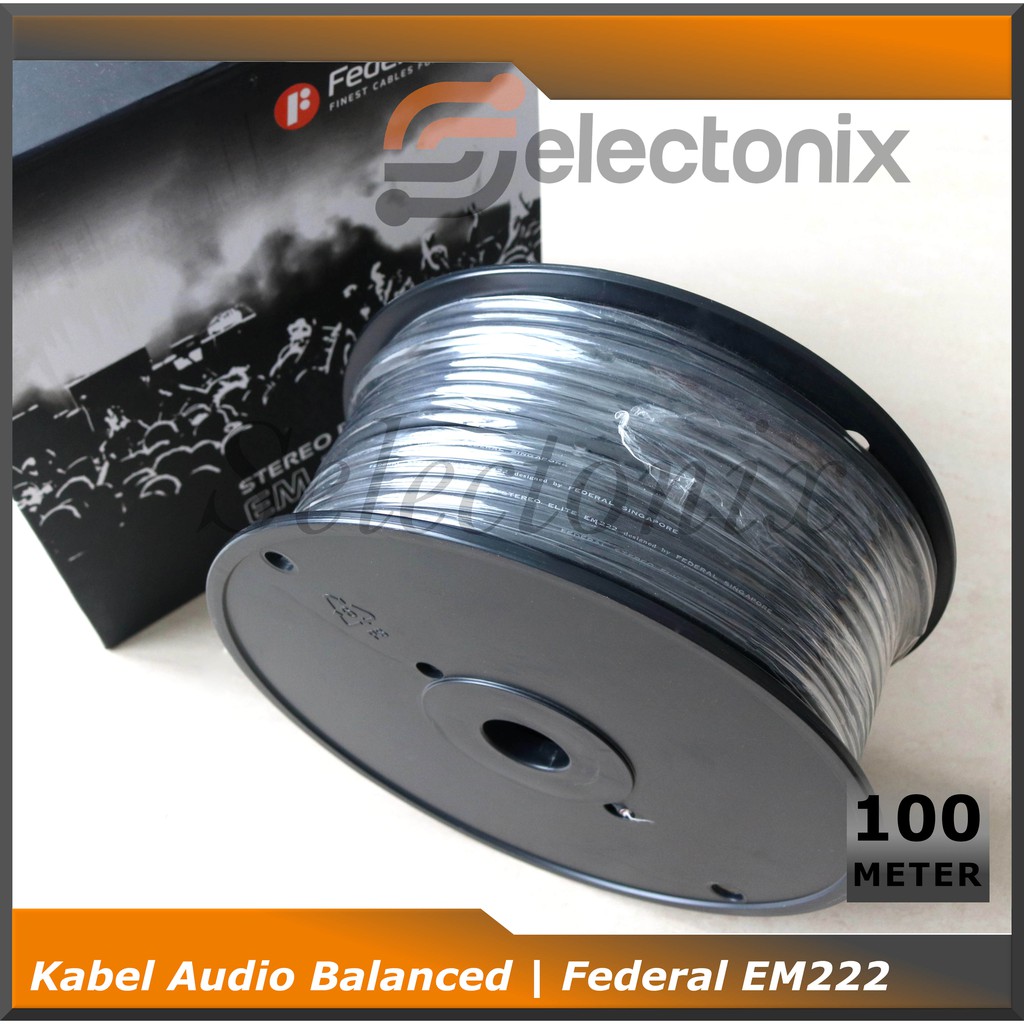

Harga per roll = 100 Meter.

Product Information :
Conductor :Stereo Elite Cable EM 222 is manufactured with 99.99% high conductivity annealed bunched copper wires. The higher number of strands improves flexibility of the cable.
Insulation : Features water resistance PVC compounds that provides protection to high voltage breakdown. These insulation are twisted with short precise pitch to improve noise cancellation and flexibility.
Cable Filler : Cotton fibers are filled in-between insulations for reliable impact absorption.
Armor : The stranded insulations are amored with special paper separator tape and addtionally shielded with 95% coverage tinned copper wires for superior strenght, durability, in addition to excellent protection to various sources of signal interferences.
Jacket : The cable's outer layer is sheathed with HD68 PVC compound with provides excellent flexibility and protection from mechanical damages.

Product Properties
Conductor Dimension 39x0.10mm
Insulation Thickness 0.55mm
Shield Braid 16x8x0.10mm
Sheath Thickness 1.10mm
Overall Diameter 6.00mm
DC resistance conductor 50.60 Ohm/km
Insulation 100 M•Ohm•km

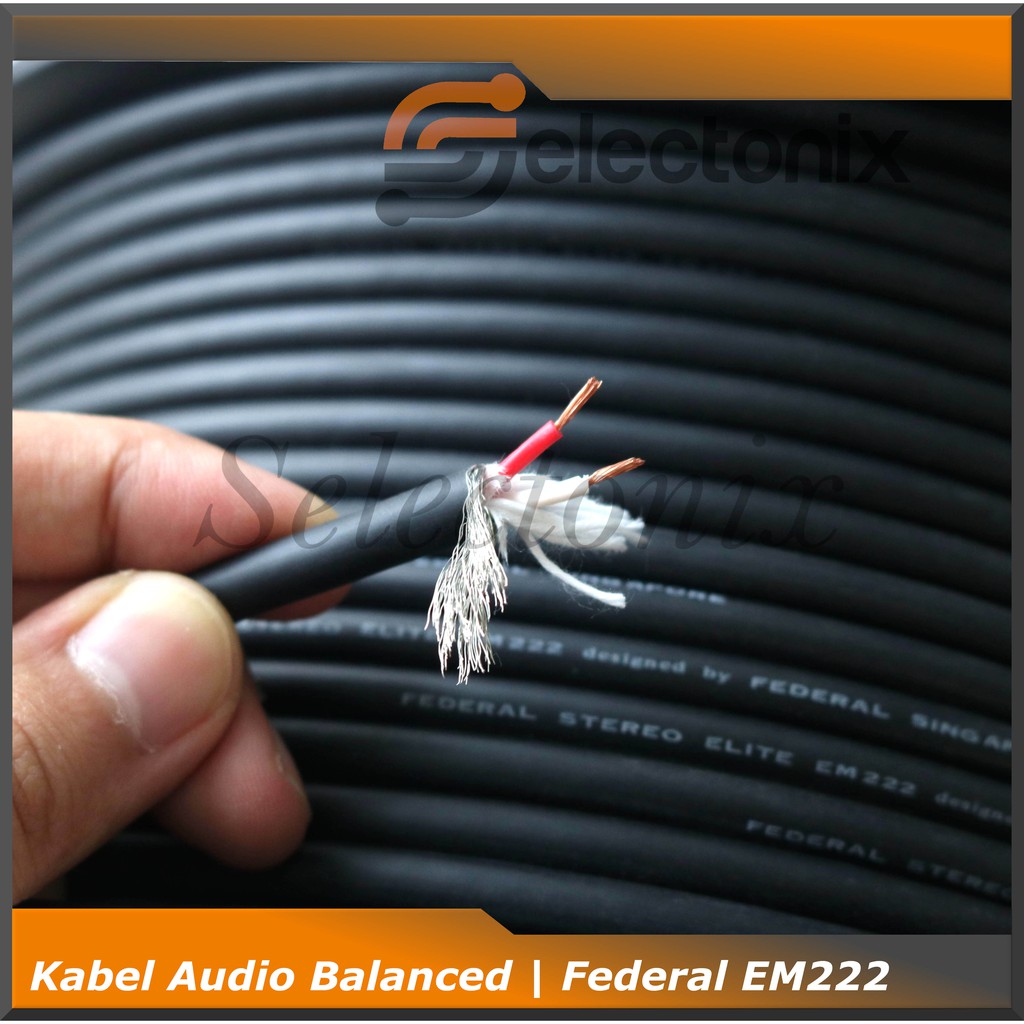

Cable Construction :
1. Conductor : Annealed Bunched Copper Wires
2. Insulation : PVC (Polyvinyl Chloride)
3. Cable Filler : Cotton Fibers
4. Tape : Paper Separator Tape
5. Shield : Tinned Copper Wires
6. Jacket : PVC (Polyvinyo Chloride)

-------------------------------------------------------
Silahkan lihat gambar produk untuk melihat produk dengan lebih detail.
Gambar produk tertera adalah foto yang kami ambil sendiri menggunakan barang yang kami jual dan berikan kepada customer.

Gambar produk
