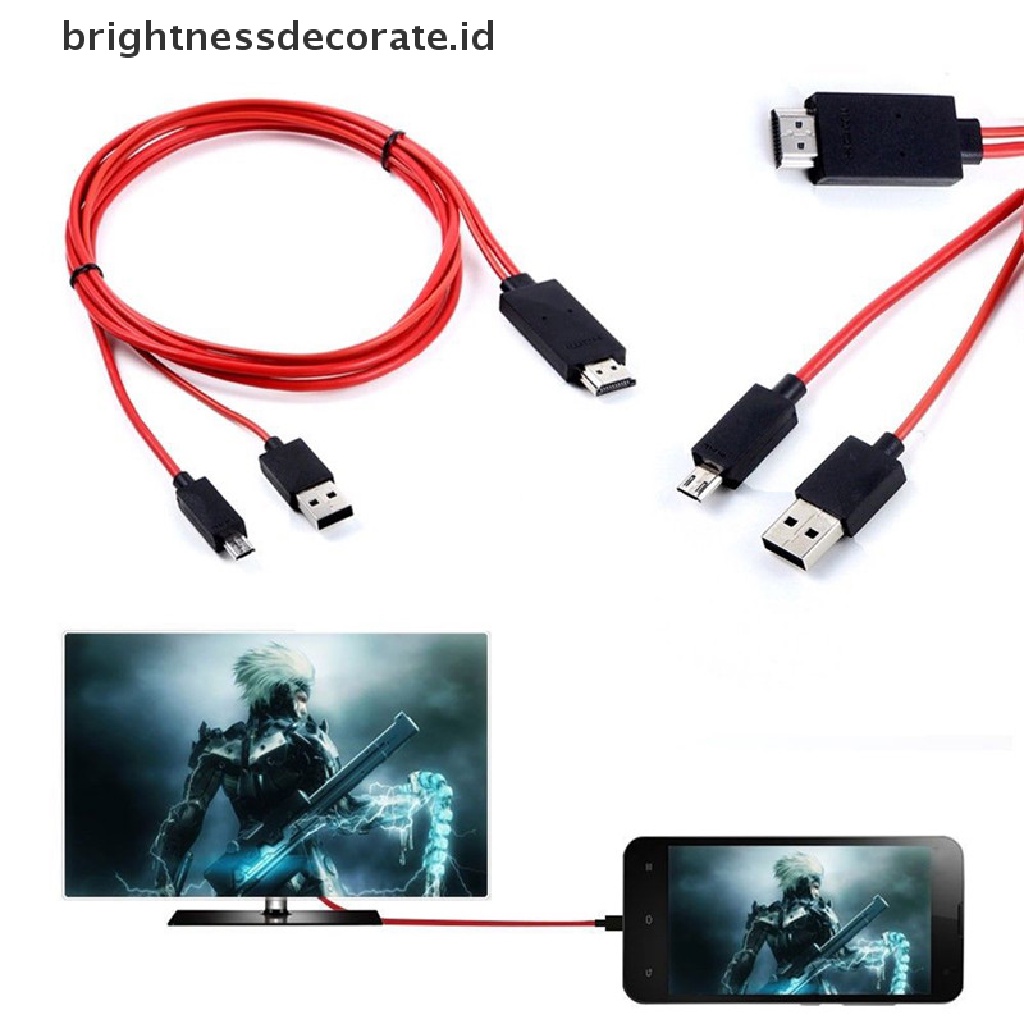

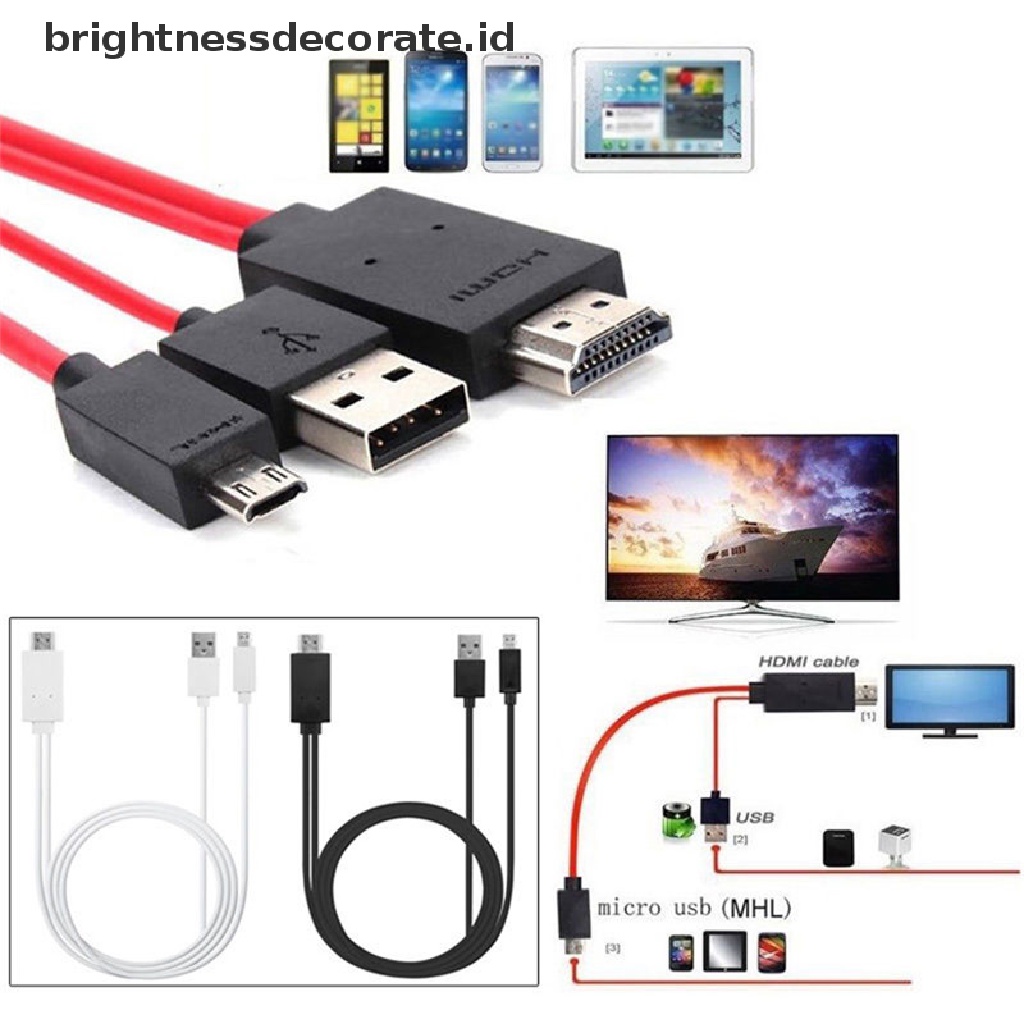

Detail Kabel Adapter Micro USB Ke HDMI 1080P HD TV Untuk Android Samsung
For Samsung S3 / S4 / S5 HDMI HD line HDTV Cable
Compatible Models:
Samsung Galaxy Samsung Galaxy S5, S4, S3, Note 3, Note 2, Galaxy Tab 3 8.0, Tab 3 10.1, Tab Pro, Galaxy Note 8, Note Pro 12.2.

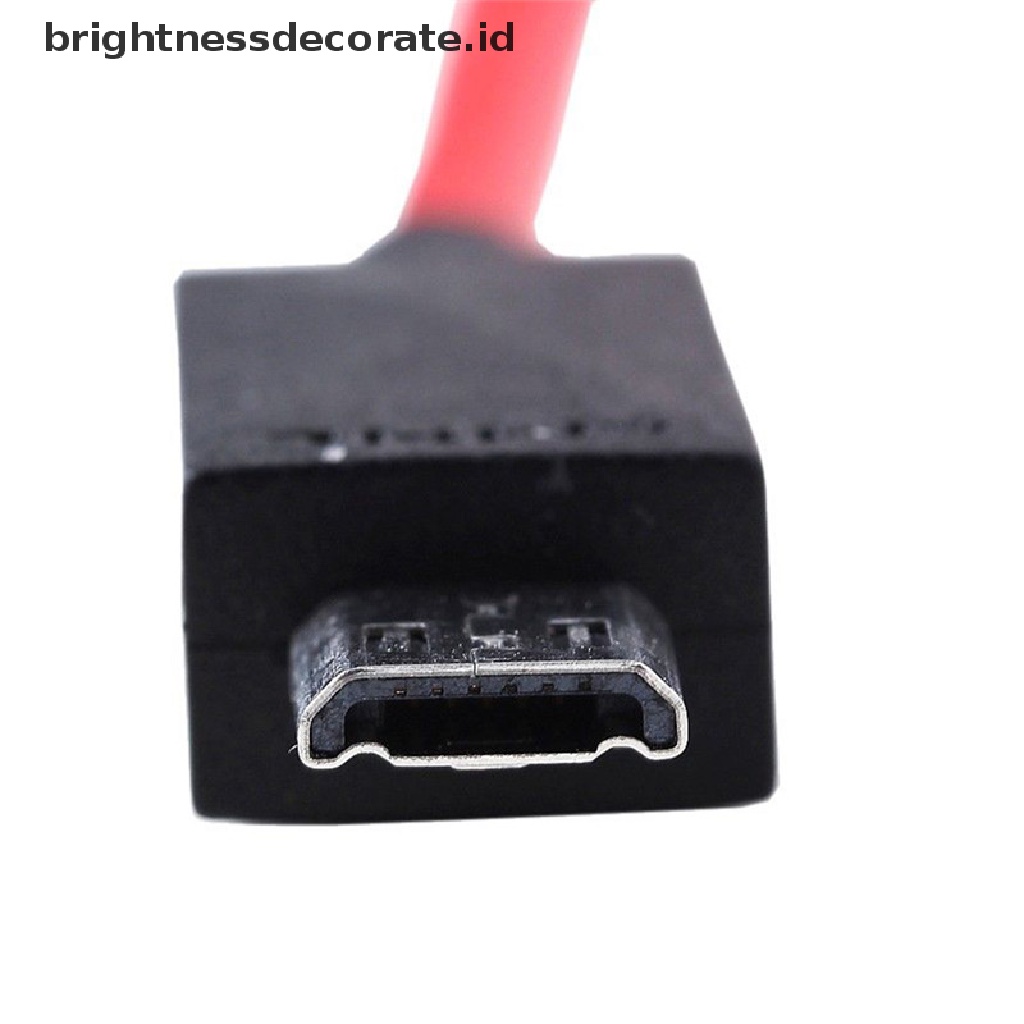

notice:This MHL(micro USB)connector with 11 pin,only fit for Samsung Galaxy S5, S4, S3, Note 3, Note 2, Galaxy Tab 3 8.0, Tab 3 10.1, Tab Pro,
Galaxy Note 8, Note Pro 12.2(NOT for Tab 3 7.0, Note 10.1) ,not compatible with other cellphones.
Product Features:
1.Supports content with High-bandwidth Digital Content Protection (HDCP)
2.Turns your phone's USB port into a standard HDMI port
3.Use the TV'S remote to control and access content on your phone
4.Upgade vision, the length of both MHL to HDMI cable and USB cable are 6.5 feet
5.Support 1080P Full HD video resolutions.Video Resolution: 480i, 480P, 720i, 720P, 1080i, 1080P (1920x1080/60Hz)

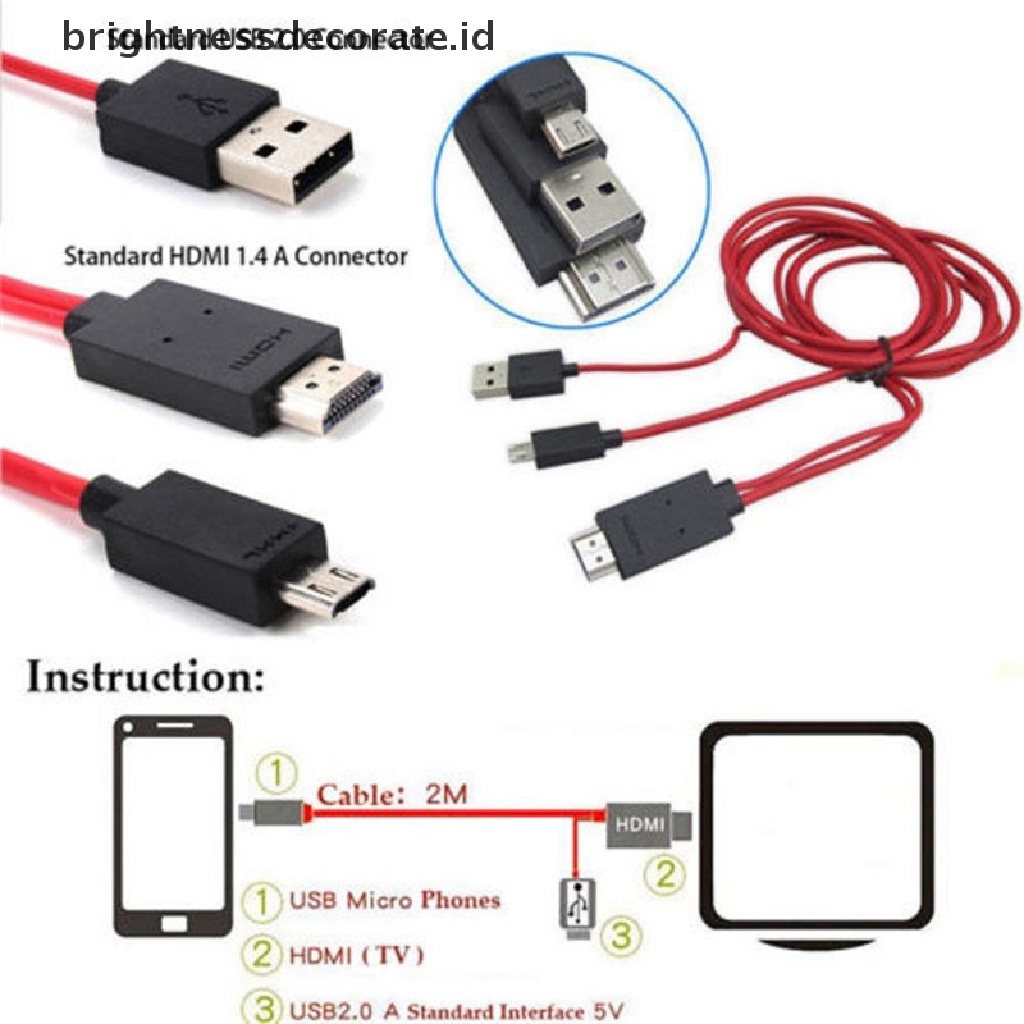

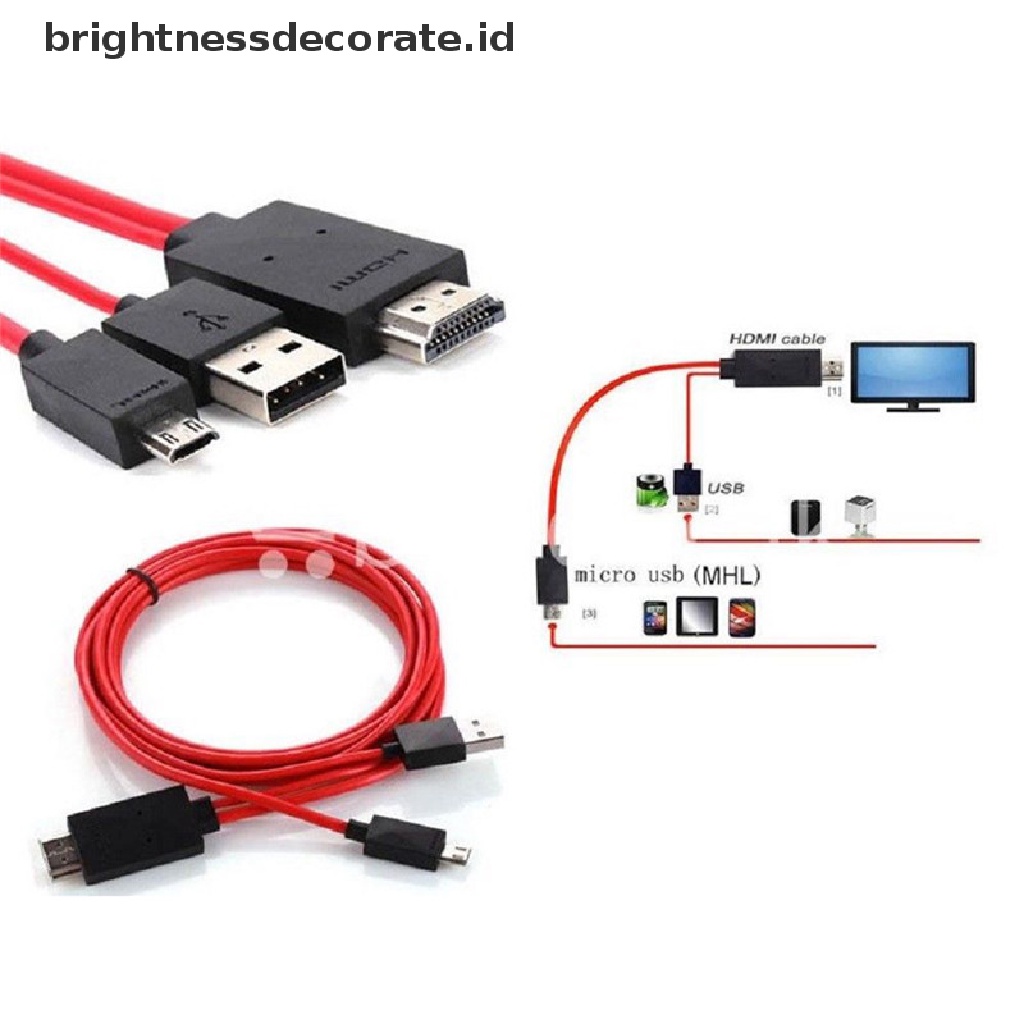

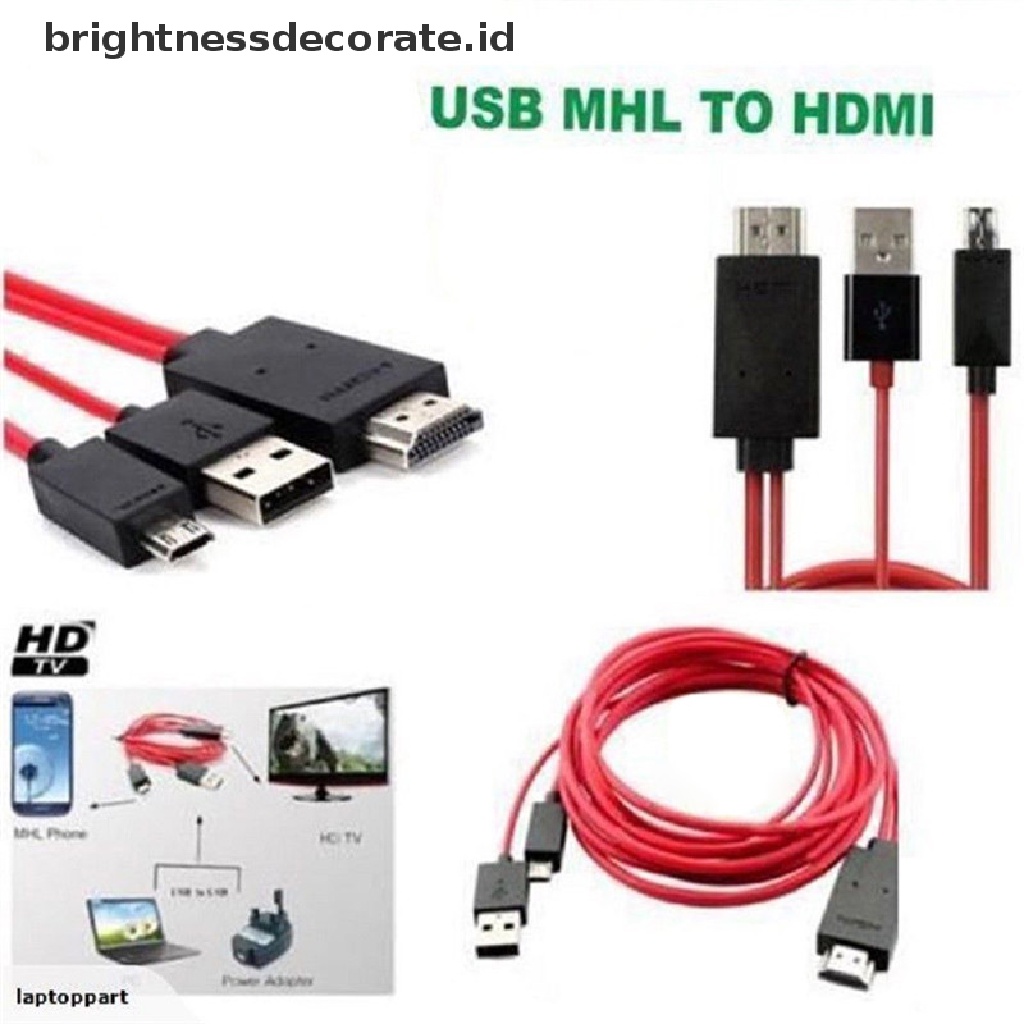

How to use:
1).Connect the Micro USB(MHL) cable into your cell phone or tablet
2).Connect TV through the HDMI port,switch the TV to HDMI channel
3).Connect the USB cable to a power adapter(at least 5V 1A) to supply power for the HDMI connector,you had better use the original adapter
4).Restart your device after the whole connection finished
Product Specification:
1.Interface: MHL specifications v.1.0
2.Bandwidth: 25 MHz - 75 Mhz

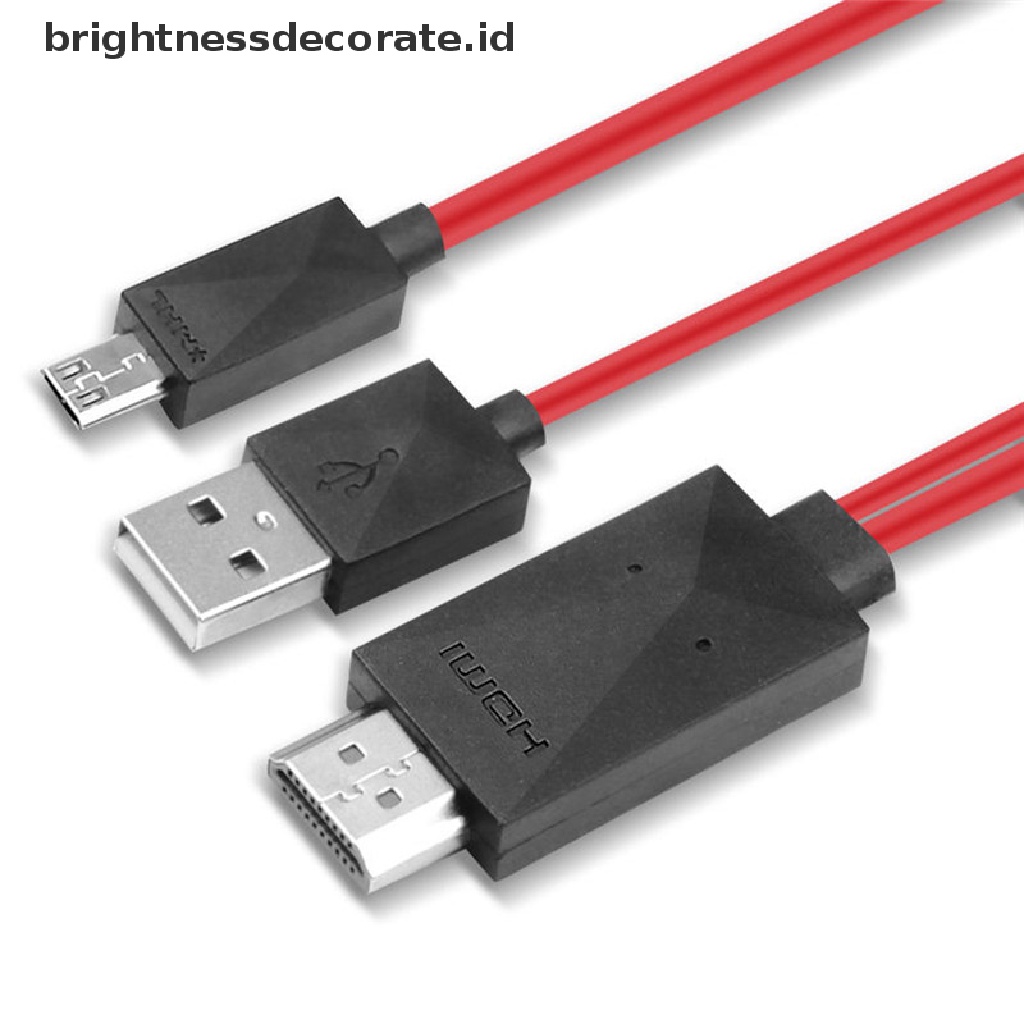

3.Connectors: micro USB (in). HDMI (out). USB 2.0 (power)
4.Video: 1080p HD
5.Audio: 8-channel (e.g.7.1 surround) digital audio
6.Power supply: 5V DC.up to 1A from USB 2.0
7.Cable lengh: 2.0M
8.Dimensions: 120*120*26MM
Package Includes:1x MHL USB HDTV cable for Samsung Galaxy S4 S5 Note 2 3
