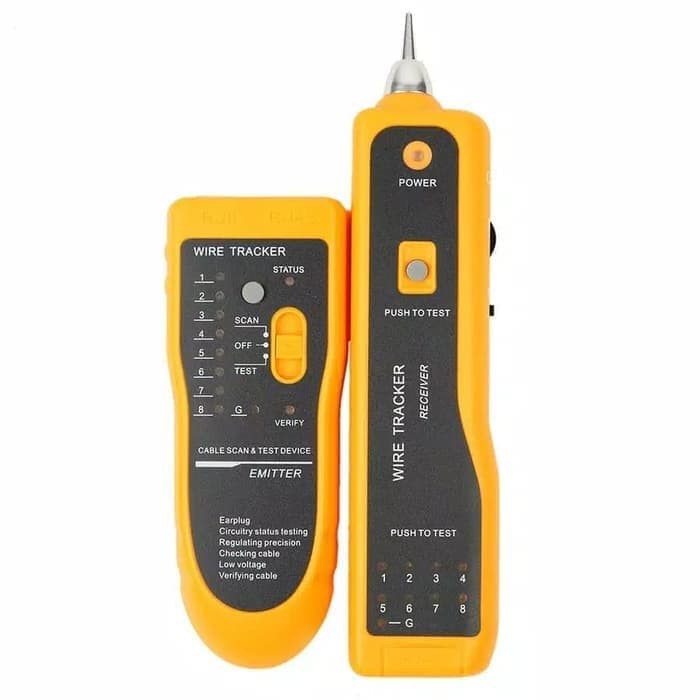

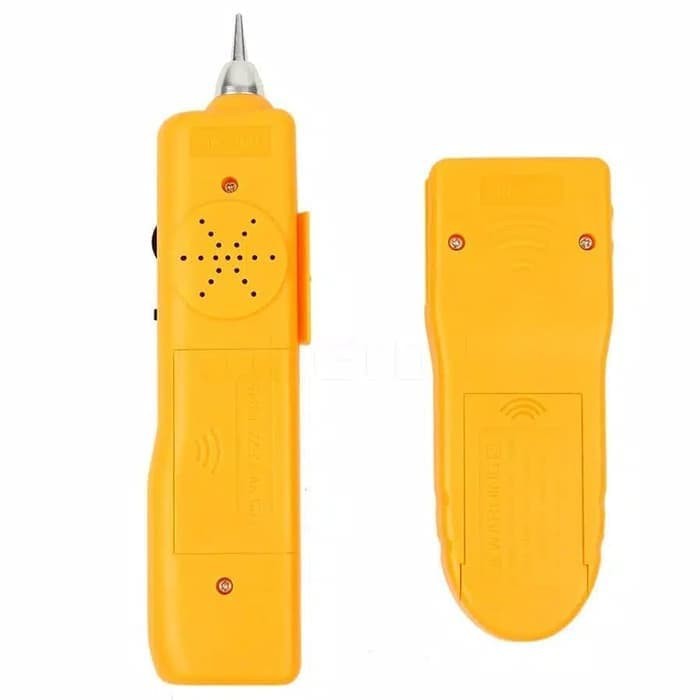

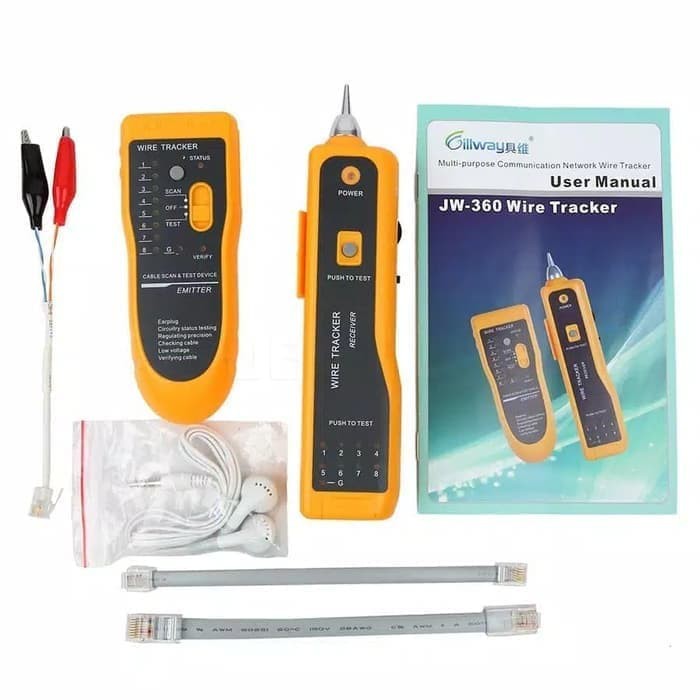

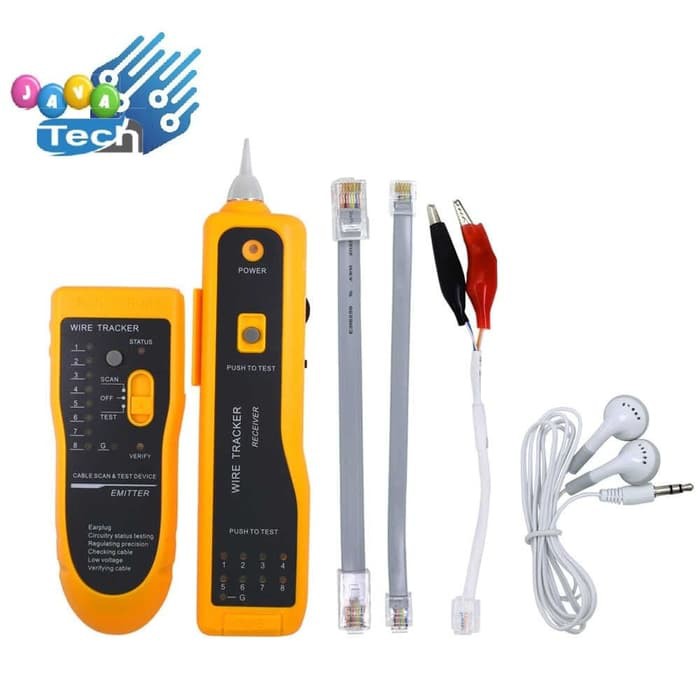

JW-360 LAN Tester Network Wire Tracker Line Finder Cable Track Scan

Detail JW-360 LAN Tester Network Wire Tracker Line Finder Cable Track Scan

JW-360 LAN Tester Network Wire Tracker Line Finder Cable Track Scan
WIRE TRACKER berfungsi untuk Mencari dan menentukan kabel dalam suatu sistem elektronik ataupun sistem kelistrikan umum

Fungsi Wire Tracker :
1. Tracking kabel telepon atau kabel elektronik /listrik lainnya
2. Tracking kabel dalam suatu jaringan
3. Tes kontinuitas / konektivitas kabel
4. Mengecek Apa ada kabel jaringan ada yang terputus atau tidak

Description:
1. Cable Tester for UTP STP RJ45 RJ11;
2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
3. TEL BNC test available(Adapter needed);
4. Remotely test cable up to 1000 ft in length ( remote kit included );
5. Protective power switch for low power consumption;
6. High quality protecive case provides more secure protection;
7. Judge continuity of the cables or wires;
8. Track the cables or wires, and diagnose the break point;
9. Receiver the tone signal on the cables or wires (telephone line);
10.Identify the state in the working telephone line (clear ring, busy);
11.Send a single solid tone or a dual alternating tone to the object cables or wires.

Features:
1. 100% brand new
2. Streamlined design and easy to carry
3. Comes with earphones usable in noisy situation
4. Flexible and versatile interface
5. Sensitive and adjustable volume control

Working current:
Emiter: 10mA Receiver: 30mA
Signal transfe mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: 3Km
Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
Power: by 2 x DC 9V Battery( not included)

Gambar produk
