Specification of 15W magnetic suction wireless charging
1: Maximum transmitting power: 15W
2: Minimum input current: 2A
3: Input voltage: 5 ∨ 9 ∨ 12 ∨ remarks: the default priority handshake is 12V, and there is no 12 handshake 9V
4: Output voltage: 5V-12V remarks: it is determined by the mobile terminal.
5: Output current: 0-2a note: the current is determined by the mobile phone, the current is variable.
6: Working distance: 2-8mm
7: Charging efficiency: above 75%
8: Executive standard: Qi supports all Qi standard mobile phones
9: Standby power consumption: less than 50mw
10: Protection mechanism: short circuit protection, over-current protection, over-voltage protection, FOD protection.
11: Temperature protection: Apple mobile phone will adjust its power according to its own temperature,
Generally, when the temperature of the mobile phone exceeds 36 degrees, the transmission power will be reduced, so when the power changes
Normal phenomenon.
12: Charging pop-up window: Apple Wireless pop-up window appears only when it is not unlocked. And continuous exercise
Make sure there is a 5-second time interval, because it takes time for the pop-up window to be eliminated and the transmitter to judge whether the cell phone is disconnected or taken away.

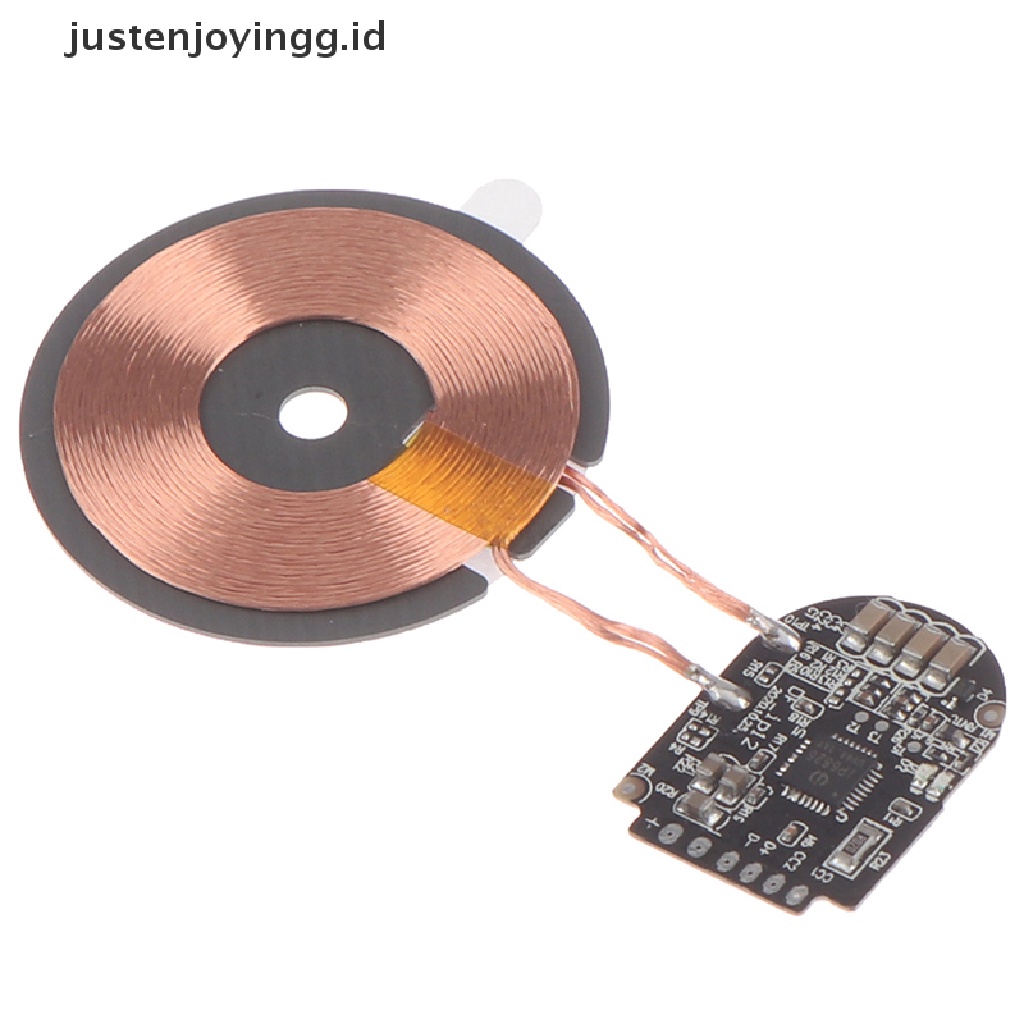

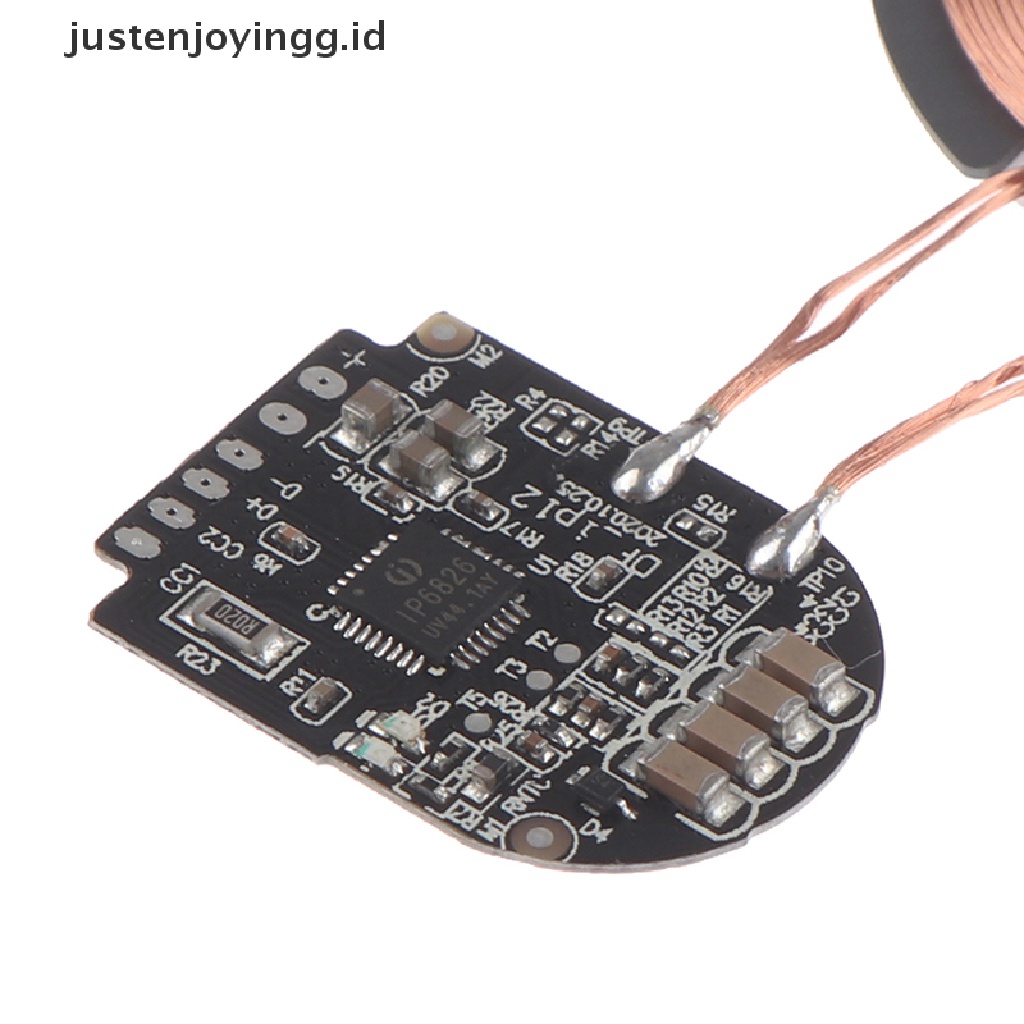

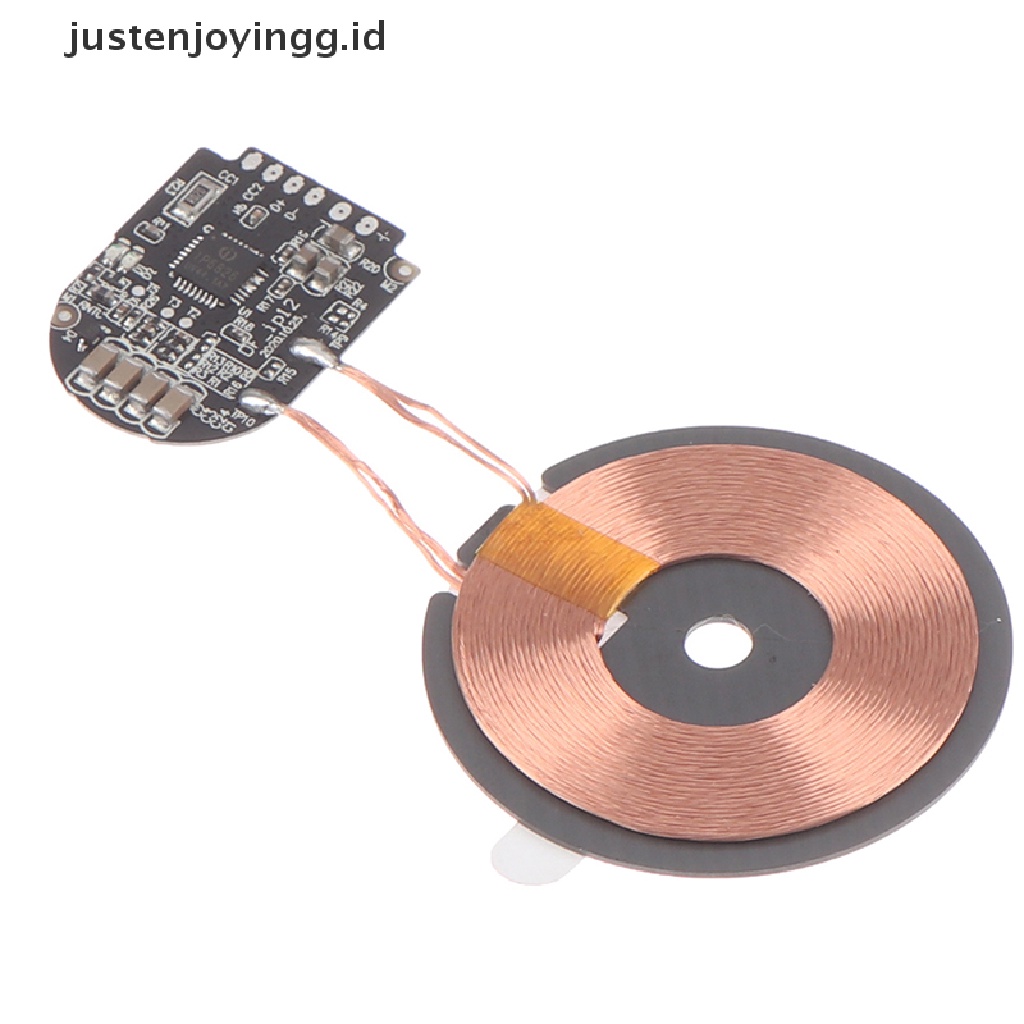

Package : 1PCS Wireless PCBA Board
note:random color
