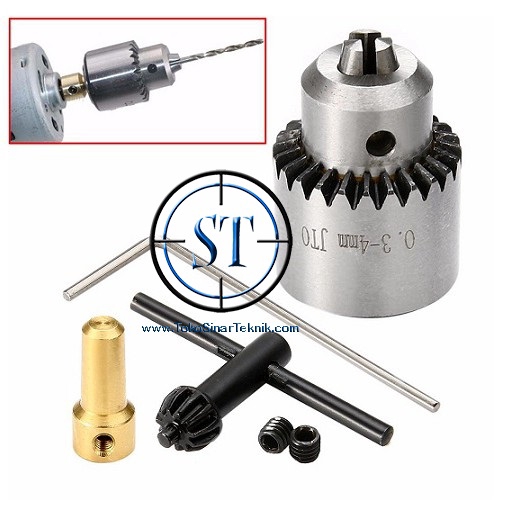

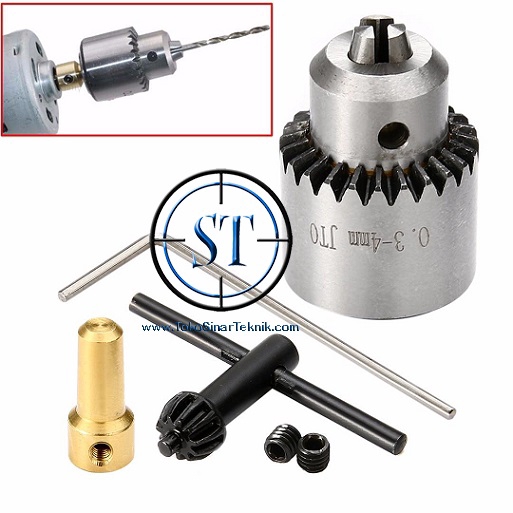

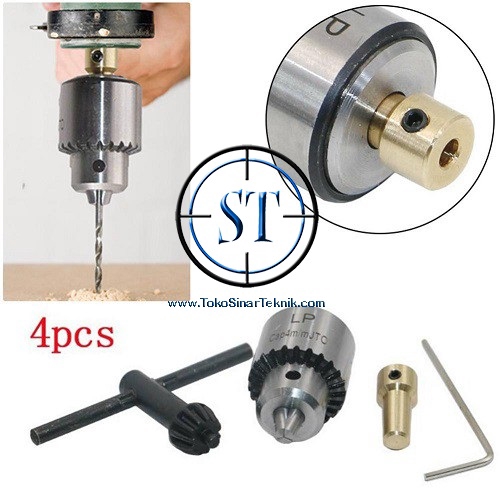

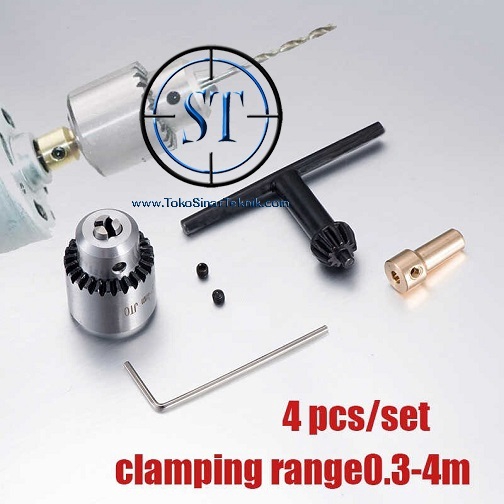

JT0 Micro Chuck Adaptor Multi 0.3 - 4mm Motor Electric Mini Drill Taper Mounted JT0

Detail JT0 Micro Chuck Adaptor Multi 0.3 - 4mm Motor Electric Mini Drill Taper Mounted JT0

Specification:
Drill Chuck:
Brand new
Material: High-carbon steel
Outer diameter: approx. 21mm
Taper: 2 degrees 49 minutes 24.7 seconds
Work with 0.3mm-4mm( 0.01" - 0.16") Drill
The maximum clamping: 4.2mm
Connection size: JT0 (inner hole diameter is 6 mm)
JT0 taper the biggest end of diameter: 6.350mm
JT0 taper the smallest end of diameter: 5.800mm
Strong impact resistance.
High precision screw thread and tapered hole.
High strength and hardness.
Durable in use.
Compatible with impact drill and different power electric drill.
3.17mm Brass Mini Electric Motor Shaft:
Brand new
Material: Brass
Match the motor shaft diameter: 3.17mm
Drill clamp JT0 connection rod connect motor drill for 3.17mm motor shaft.
3.17mm shaft coupling motor connector brass.
Close-fitting with 3.17mm motor shaft.
High strength and hardness.
Durable in use.
For 0.3~4mm JT0 drill clamp.
Package included:
1 x Drill Chuck
1 x Spanner/key
1 x 3.17mm Shaft Connecting Rod
Note:
Please allow 1-3mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
