JOYO JP02 PEDAL EFFECT POWER SUPPLY

Detail JOYO JP02 PEDAL EFFECT POWER SUPPLY

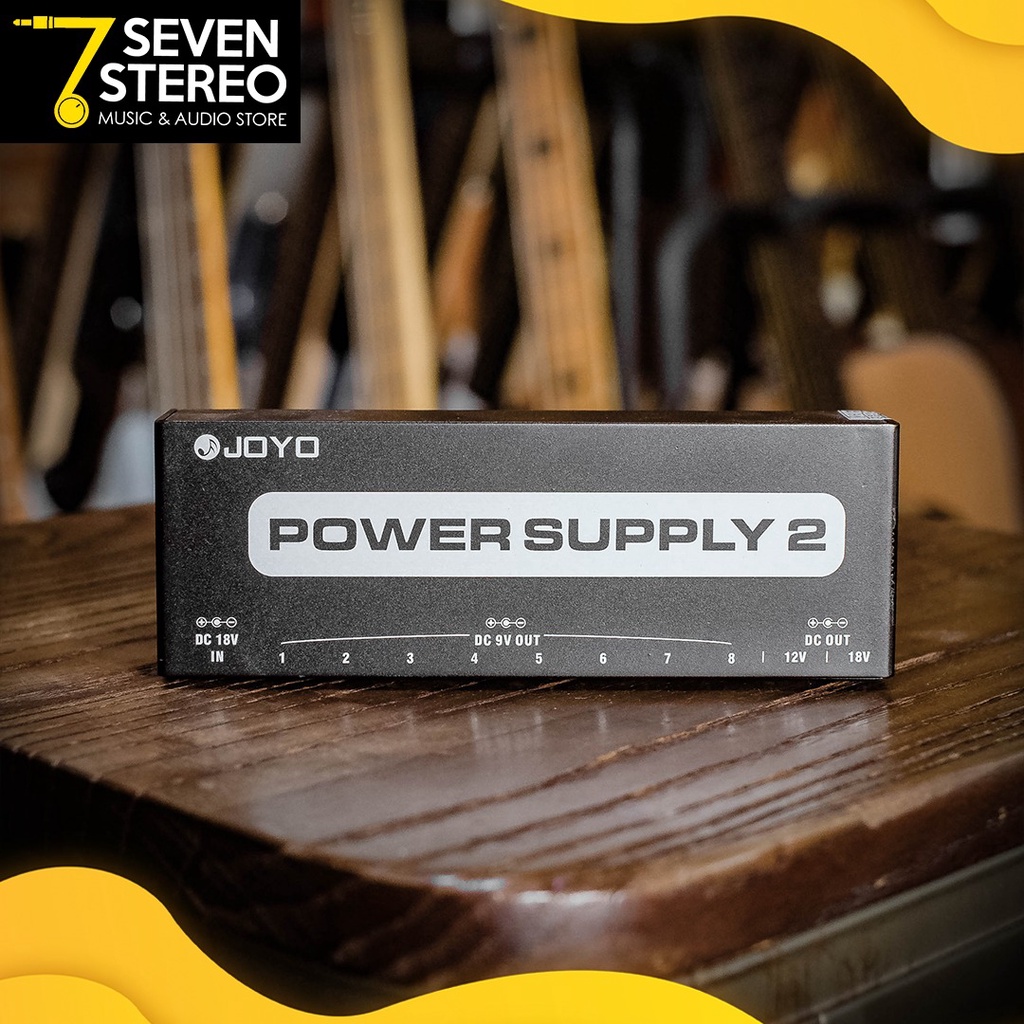

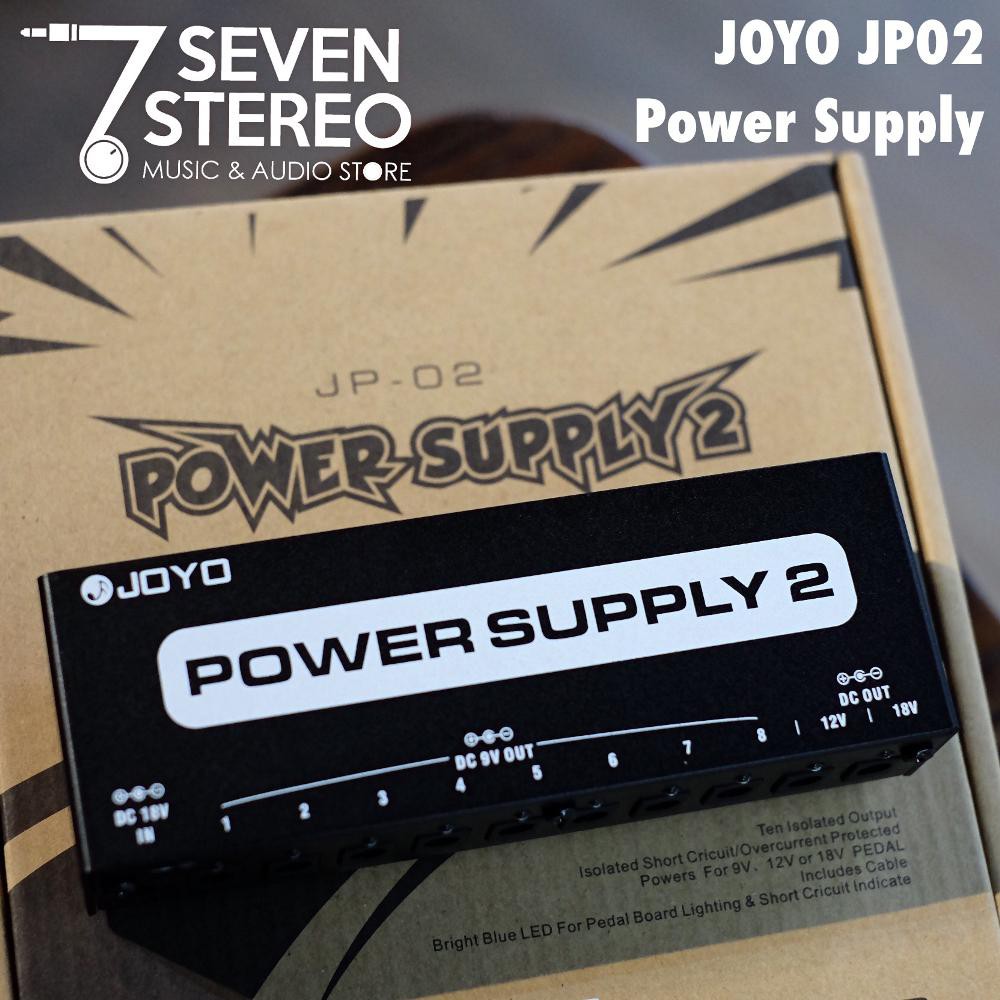

JOYO JP-02 Guitar Effect Pedal Multi Power Supply
JOYO JP-02 Guitar effect pedal Power Supply - 10 filtered outputs each with an isolated short circuit & over current protection. Version 3. 00 JP-O2 filtered 10 x power supply 2 from JOYO technologies. A power supply which now adds more power outputs with extended power output ratings. Built in a rugged steel casing and now featuring a new slim design to fit almost any existing pedalboard configuration and all necessary power link cables included.

The new JP-02 feature the following power options, all isolated short circuit & over current protection of a DC 9 volt power output with EACH output of 100mA.

Suitable for most analogue 9 volt effects with centre negative polarity. (Check the back of your pedal if you are not sure!). JOYO JP-02 Guitar Effect Pedal Multi Power Supply
JOYO JP-02 Guitar effect pedal Power Supply - 10 filtered outputs each with an isolated short circuit & over current protection. Version 3. 00 JP-O2 filtered 10 x power supply 2 from JOYO technologies. A power supply which now adds more power outputs with extended power output ratings. Built in a rugged steel casing and now featuring a new slim design to fit almost any existing pedalboard configuration and all necessary power link cables included.

The new JP-02 feature the following power options, all isolated short circuit & over current protection of a DC 9 volt power output with EACH output of 100mA.

Suitable for most analogue 9 volt effects with centre negative polarity. (Check the back of your pedal if you are not sure!). Also DC 9 volt power output but with maximum output of 500mA, which is suitable for many digital effects as well when more power is required for other units on the board.

Output 9 gives a DC12 output, the maximum output current is 100mA and is used for effects requiring 12 volt of power.

Output 10 gives a DC18 output, the maximum output current is 100mA for effects or other things that carry this rating. All outputs are fully regulated and offer Isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.

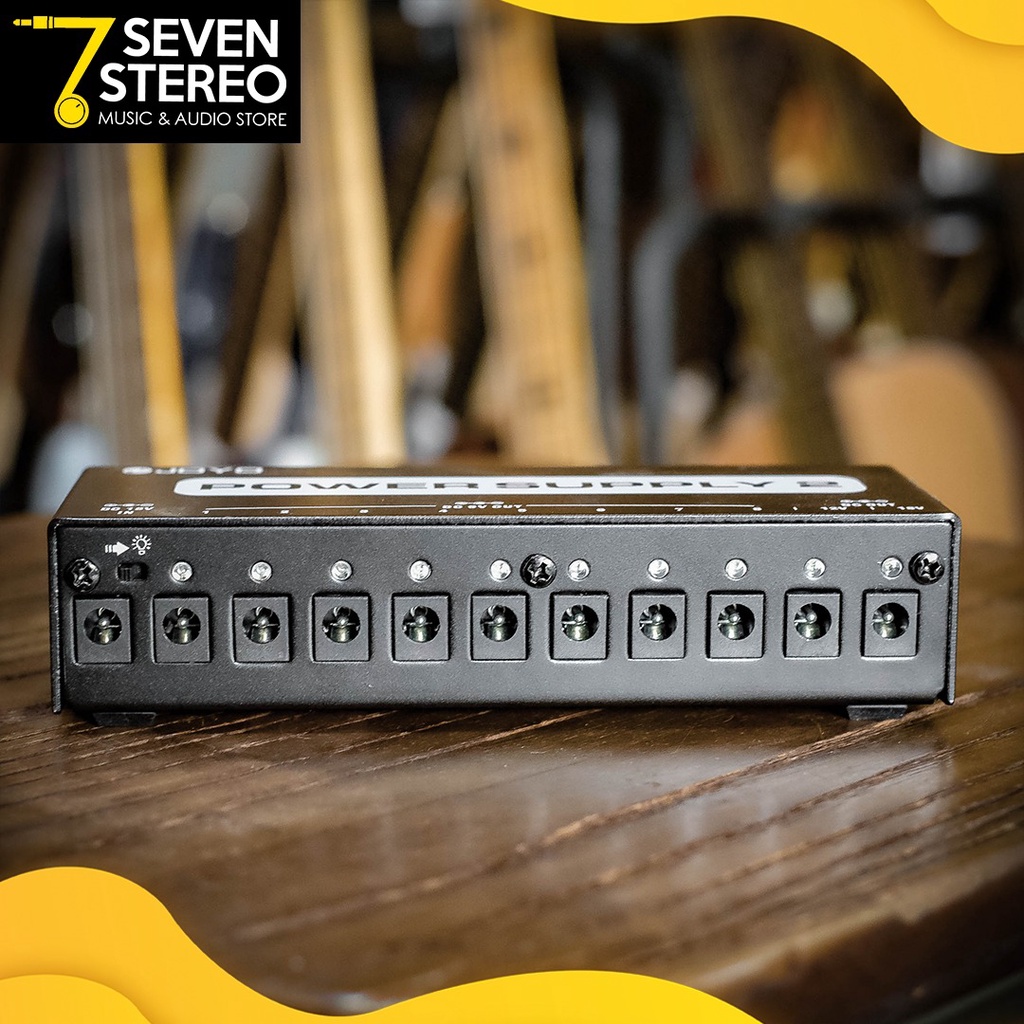

Also featuring Blue LED's at every output. Great for dark stages and gives your board a nice blue glow.

THE JP-02 in use by Peter Hook & The Light on tour (JOY Division / New Order).



Outputs 1 to 7 - Centre negative DC 9 volt power output with an output of 100mA. This power supply is the most common and suitable for most analog & digital 9 volt guitar effects requiring a 100ma centre negative polarity supply. (Check the back of your pedal if you are not sure what your gear needs!).

Output 8 - The JOYO multi power supply also features a DC 9 volt power output with a maximum output of 300mA, which is
