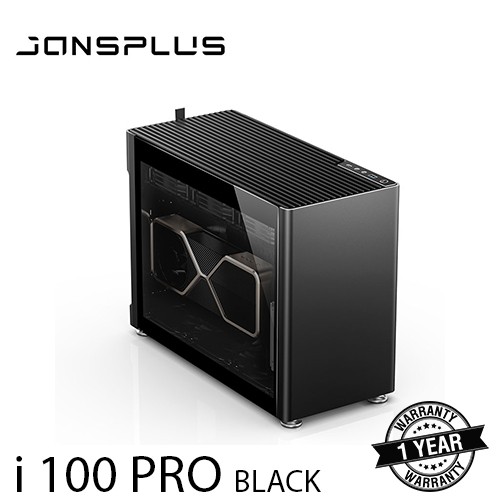

JONSPLUS ALUMINUM ITX CASE i100 PRO GLASS MINI ITX BLACK CASING

Detail JONSPLUS ALUMINUM ITX CASE i100 PRO GLASS MINI ITX BLACK CASING

Model name : i 100 Pro BLACK
Model version : Ver.1 (Steel/Glass version, Black)

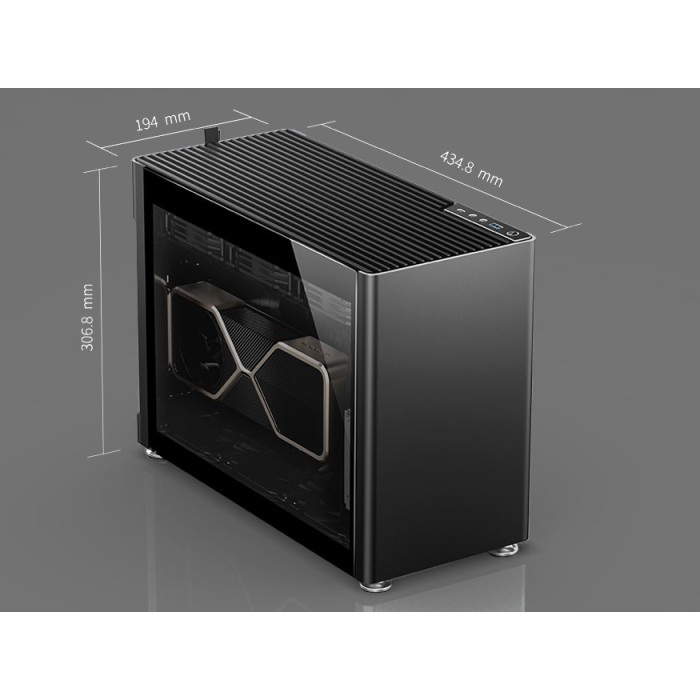

Product size : 194mm(W) x 307mm(H) x 435mm(L) (not include case stand)
Case Stand height : Single layer 14.5mm, dual layers 20.5mm
MB support : ITX, DTX (170 x 203mm) Note: When using DTX motherboard, and installing the graphics card vertically, will require to purchase an extended PCI-E cable（Length over 228mm）
GPU Support : 345-373mm (L)x160mm(H)x62mm(W) (W SSD cage is 345mm,w/o SSD Cage is 373mm)
Device Support : 1*3.5”HDD +2*2.5”SSD or 3*2.5”SSD.
Fan mounting position : 6*12cm fan or 4*14cm fan (optional)
PCI slots : 2
Front I/O : 1*TYPE-C（USB3.1 Gen2)，1*USB3.0，1*AUDIO，1*MIC
Air filter system : Top, bottom, rear (pre-installed)
Weight : NW: 6.7KG/GW: 8.8KG

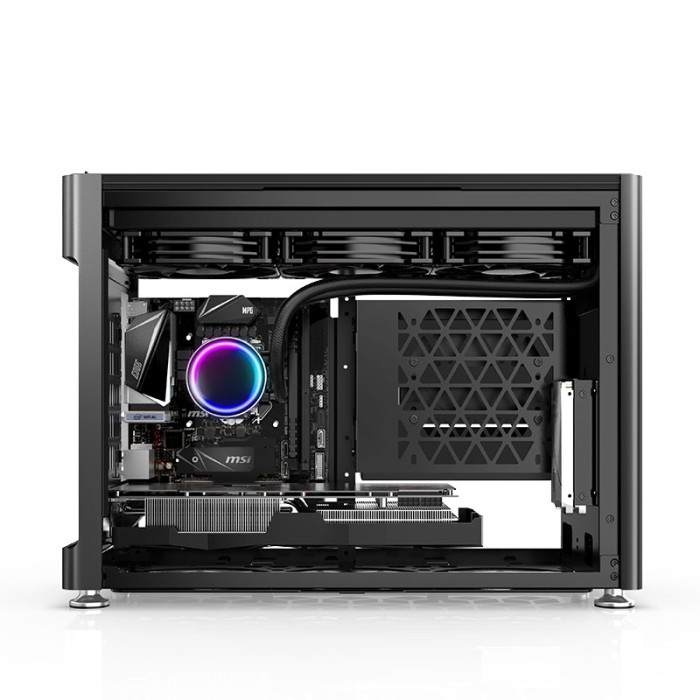

Radiator support (top mounting position) : 360/280/240/120 (fan+ radiator thickness: 55mm)
PSU support : ATX/SFX (175mm long max w/o bottom fan) ATX/SFX (150mm long max w bottom fan)
PSU support : ATX/SFX (140mm long max )

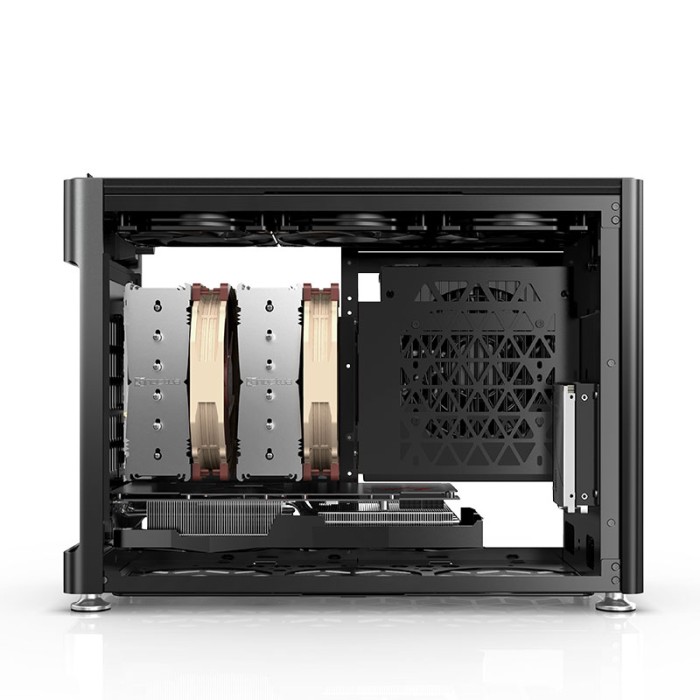

CPU cooler height
166mm max / 77mm max

Gambar produk
