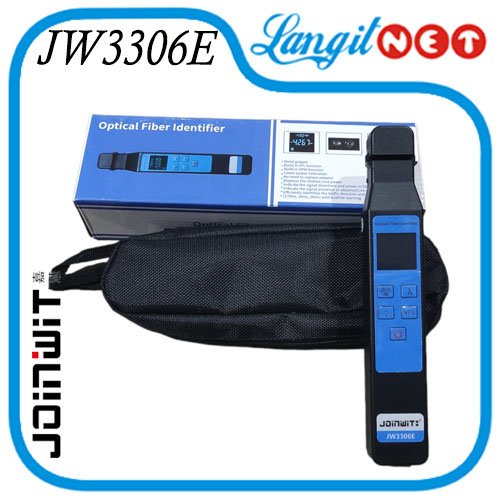

JOINWIT JW3306E Optical Fiber Identifier

Detail JOINWIT JW3306E Optical Fiber Identifier

PAKET BERISI :
- 1 Unit JW3306
- 1 Tas
- 1 Manual Book
- 1 Dus

JW3306E Optical Fiber Identifieris an important tool foroptical maintenance, which is used for nondestructive fiberidentification project. Meanwhile it also has Visual FaultLocator module with fault location function.

Using the macro bending technology on line fornondestructive testing, JW3306E can measure the signaldirection and power and avoid misoperation resulting ininterrupted lines.

Features
*TFT color screen
* Indicate the signal directions and power in fiber
* Indicate the signal presence or absence(Live or dark fiber)
* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
* Displays the relative core power
* Don't need to replace adaptor
* Lower power indication
* Build in VFL function
* Build in OPM function

Type : JW3306E
Identified Wavelength Range : 750-1700 nm
Insertion Loss : 1.0dB
Fiber Type : <3mm Fiber
Identified Signal Type : 270Hz/1KHz/2KHz
Display Type : LED
Detector Type : 1mm InGaAs
Minimum detection power :
-35dBm(1550nm)
-30dBm(1310nm)

Center Wavelength : 650nm
Output Power : 10mW
Alkaline Battery : 2*AA (not include)
Battery Life : >60H
Operating Temperature : 0~+50?
Storage Temperature : -20~+60?
