JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2

Elektronik > Perangkat Audio & Speaker > Mikrofon & Aksesoris > JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2

Deskripsi JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2

SISTEM INDIKATOR

Model Penerimaan : True Diversity
Mode Modulasi : Broadband FM
Rentang Frekuensi : 520~920 MHZ
Nomor Channel : 250 kHz
Channel : 100
Deviasi Maksimal : ±45KHZ
Respon Frekuensi : 80Hz~15KHZ(±3db)
Rentang Dynamic : 100 db
Stabilitas Frekuensi : ± 0.005%
T.H.D : ≤ 0.5%
S/N Ratio : > 105 dB
Jarak Kerja : 100 meter
Suhu Kerja : 10°C ~ +50°C
Indikator Receiver

Frekuensi : 10 Mhz – 10.7 MHz
Antena : BNC / 5011
Sensitifitas : 12 dBuV (80dB S/N)
Sensitifitas Range : 12~32 dBuV
Harmonic Interference Ratio : ≥75dB
Output Maksimum : +10 (IRV)
Audio Output : Balanced 0~0.5V/600Ω, Audio Output 0~0.5V/5KΩ
Power Supply : connect direct power 12~14V
Indikator Emiter

Antena : Helical (Handheld), 1/4 Whip (Bodypack)
Daya Keluaran : Low 4~6mW, High 20~30mW
Harmonic Interfere Ration : -50dB
Baterry : 2pc AA Type Baterai Alkaline
Cartridge : Polar Pattern Capacity

Gambar produk

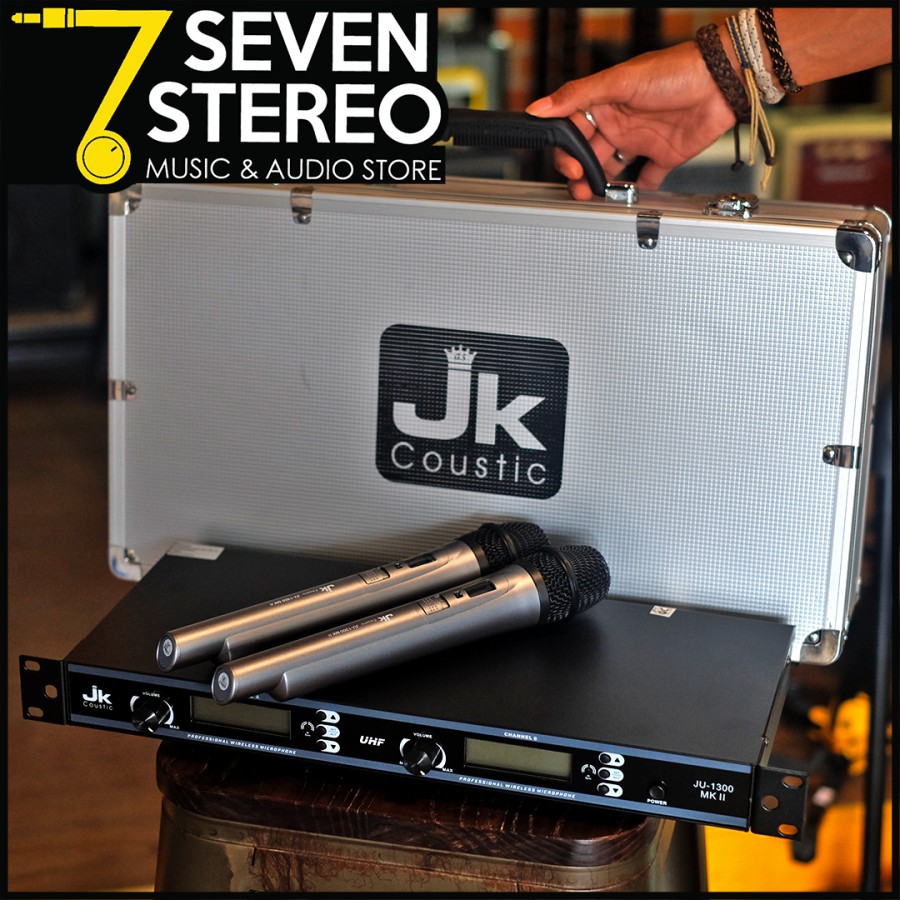

JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2
JK Coustic JU1300 MK2 JU-1300 MK2 Mic Microphone Wireless isi 2
