Jek Plug RJ45 Commscope AMP RJ 45 Cat5e MP-88U-F-2 6-554720-5

Detail Jek Plug RJ45 Commscope AMP RJ 45 Cat5e MP-88U-F-2 6-554720-5

JUAL : Jek Plug RJ45 Commscope AMP RJ 45 Cat5e Cat 5e MP-88U-F-2 6-554720-5

Kepala atau Konektor Kabel UTP LAN RJ45 cat 5 merk Commscope dahulu AMP

Fitur dan Spec :

Konektor Kabel UTP
6-554720-5
Brand : CommScope dahulu AMP

http://www.commscope.com/NewsCenter/PressReleases/CommScope-Completes-Transformational-Acquisition-of-TE-Connectivitys-Telecom-Enterprise-and-Wireless-Businesses/
Cat-5

General Specifications
ANSI/TIA Category 5
Cable Type Flat oval, unshielded
Conductor Type Solid | Stranded
Interface RJ45
Positions/Loaded Contacts 8/8
Termination Type IDC
Dimensions
Compatible Cable Diameter, maximum 8.89 mm | 0.35 in
Compatible Cable Diameter, minimum 2.54 mm | 0.1 in
Compatible Insulated Conductor Diameter, maximum 0.99 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum 0.86 mm | 0.034 in
Contact Plating Thickness 1.27 µm
Compatible Conductor Gauge, solid 26–24 AWG
Compatible Conductor Gauge, stranded 26–24 AWG

Website product : http://www.commscope.com/catalog/connectors/pdf/part/61954/MP-88U-F-2_6-554720-5.pdf

Isi Paket :

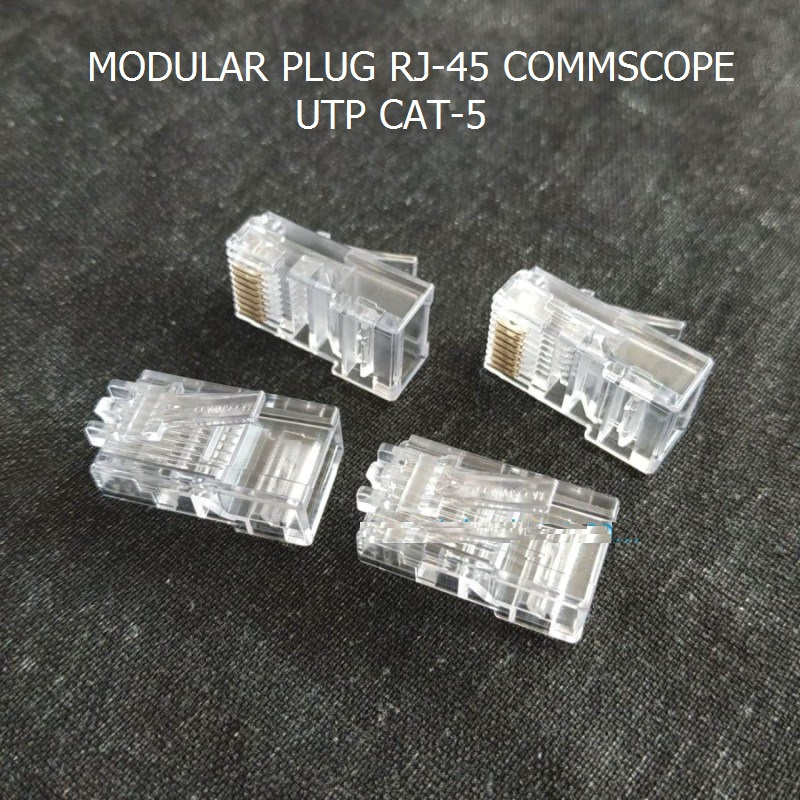

1 pack isi 4 pcs MODULAR PLUG RJ-45 COMMSCOPE UTP CAT-5

Gambar produk
