JDY-40 2.4GHz Wireless Serial Comunication Transceiver Module

Detail JDY-40 2.4GHz Wireless Serial Comunication Transceiver Module

Deskripsi JDY-40 2.4GHz Wireless Serial Comunication Transceiver Module
Description:

JDY-40 is developed with 2.4G technology, the sight distance is 120 meters, using serial port communication interface, using simple and fast, only need to understand the serial knowledge of the JDY-40 can be applied to the product!

Pin function description:

Pin The name of the discipline Function
1 GPI01 Input-output IO, which can be configured by AT+CLSS
2 GPI02 Input-output IO, which can be configured by AT+CLSS
3 GPI03 Input-output IO, which can be configured by AT+CLSS
4 GPI04 Input-output IO, which can be configured by AT+CLSS
5 GPI05 Input-output IO, which can be configured by AT+CLSS
6 GPI06 Input-output IO, which can be configured by AT+CLSS
7 GPI07 Input-output IO, which can be configured by AT+CLSS
8 GPI08 Input-output IO, which can be configured by AT+CLSS
9 VCC Power supply (2.2-3.6)
10 RXD Serial port input pin
11 TXD Serial port output pin
12 SET AT command switching pin (low level AT instruction, high level transparent transmission)
13 CS Transmission or push button mode: CS pin (low level wake-up, high level sleep).
IO receive mode:the CS pin needs to be suspended or pulled up
14 GND Power supply

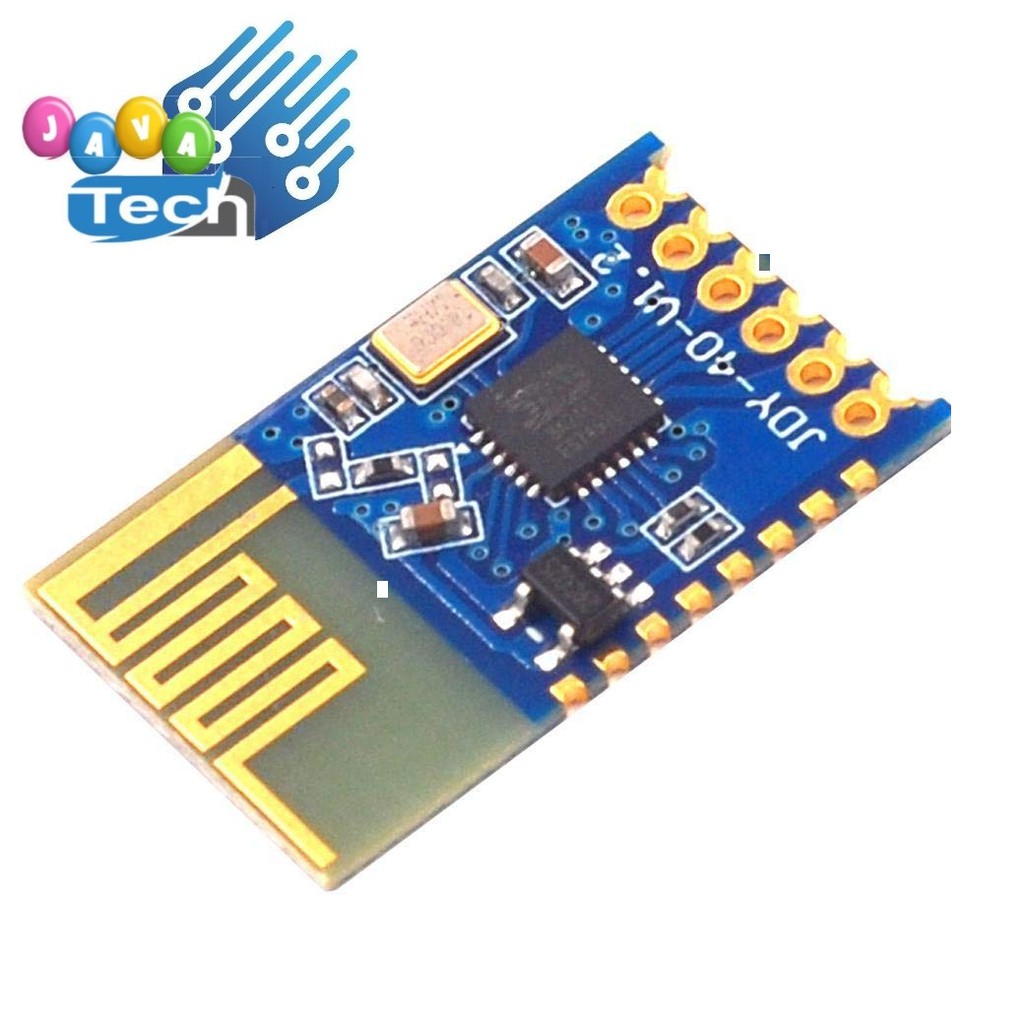

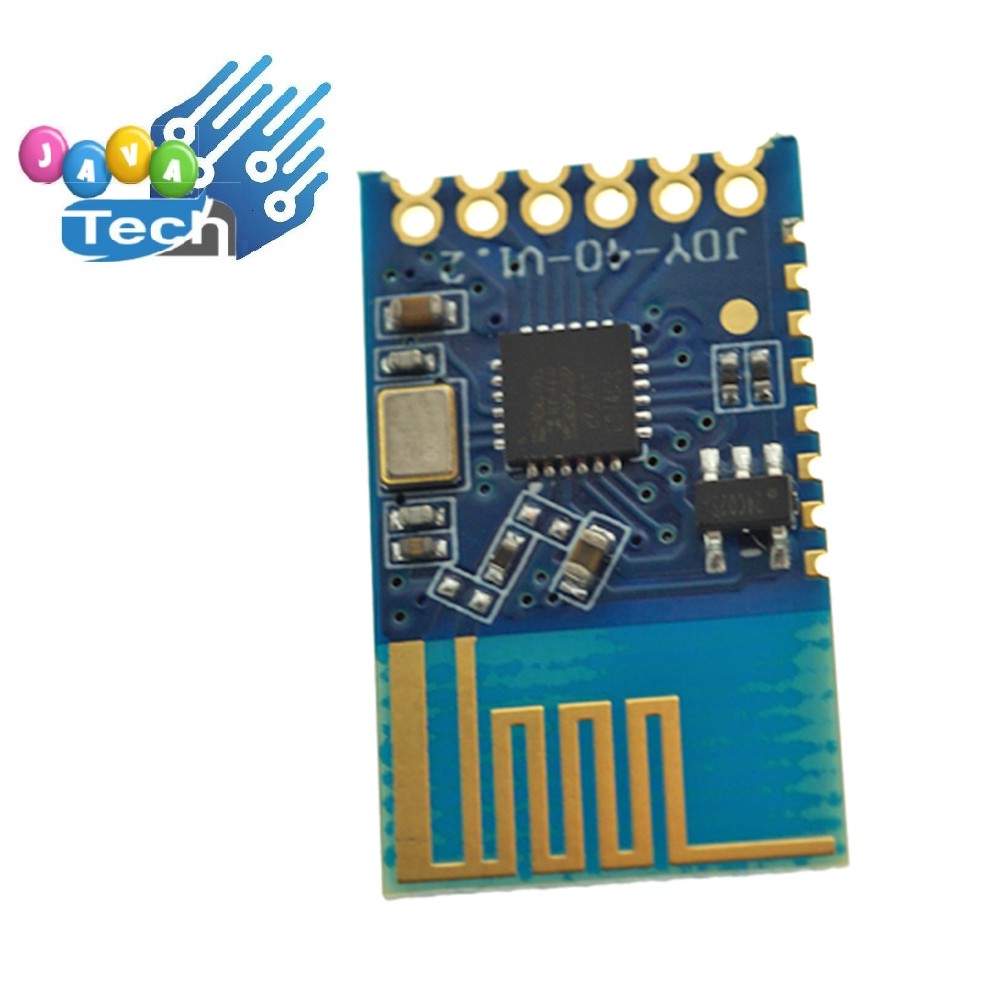

Gambar produk
