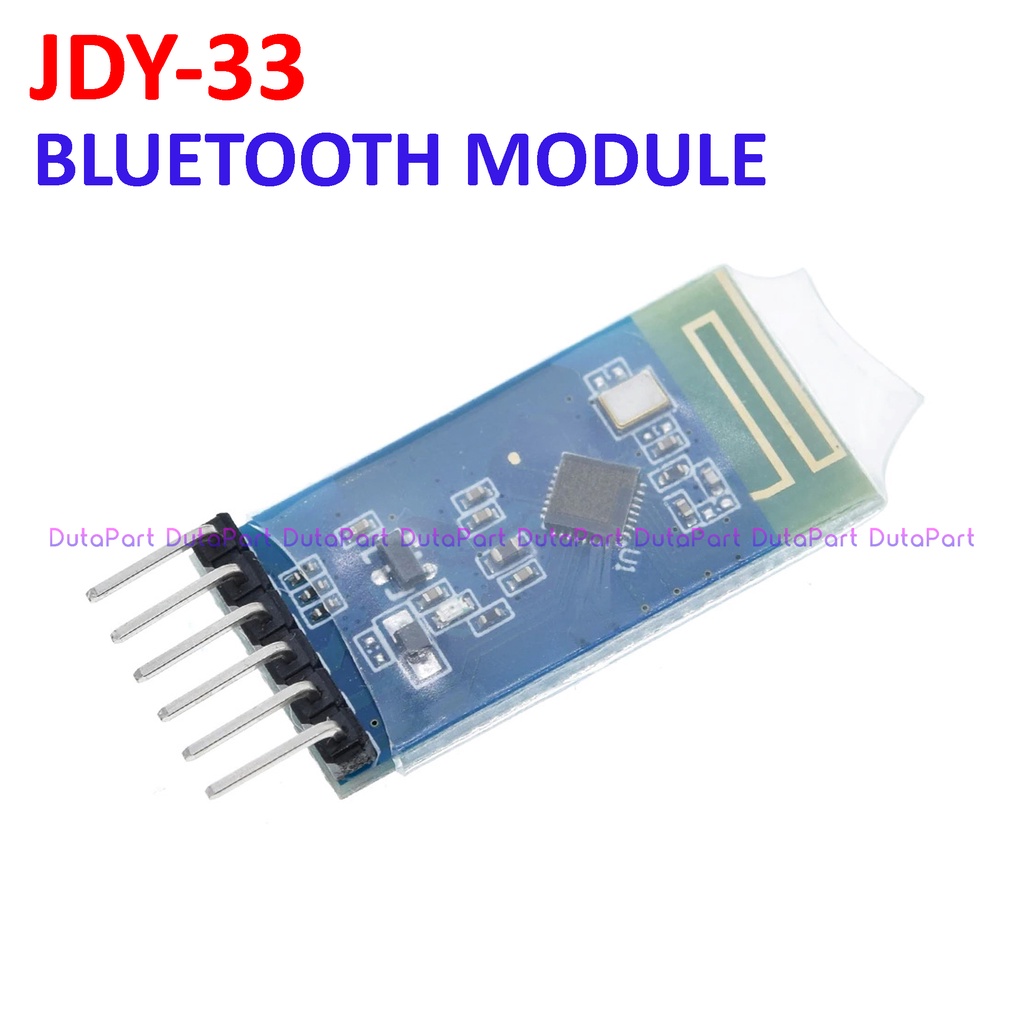

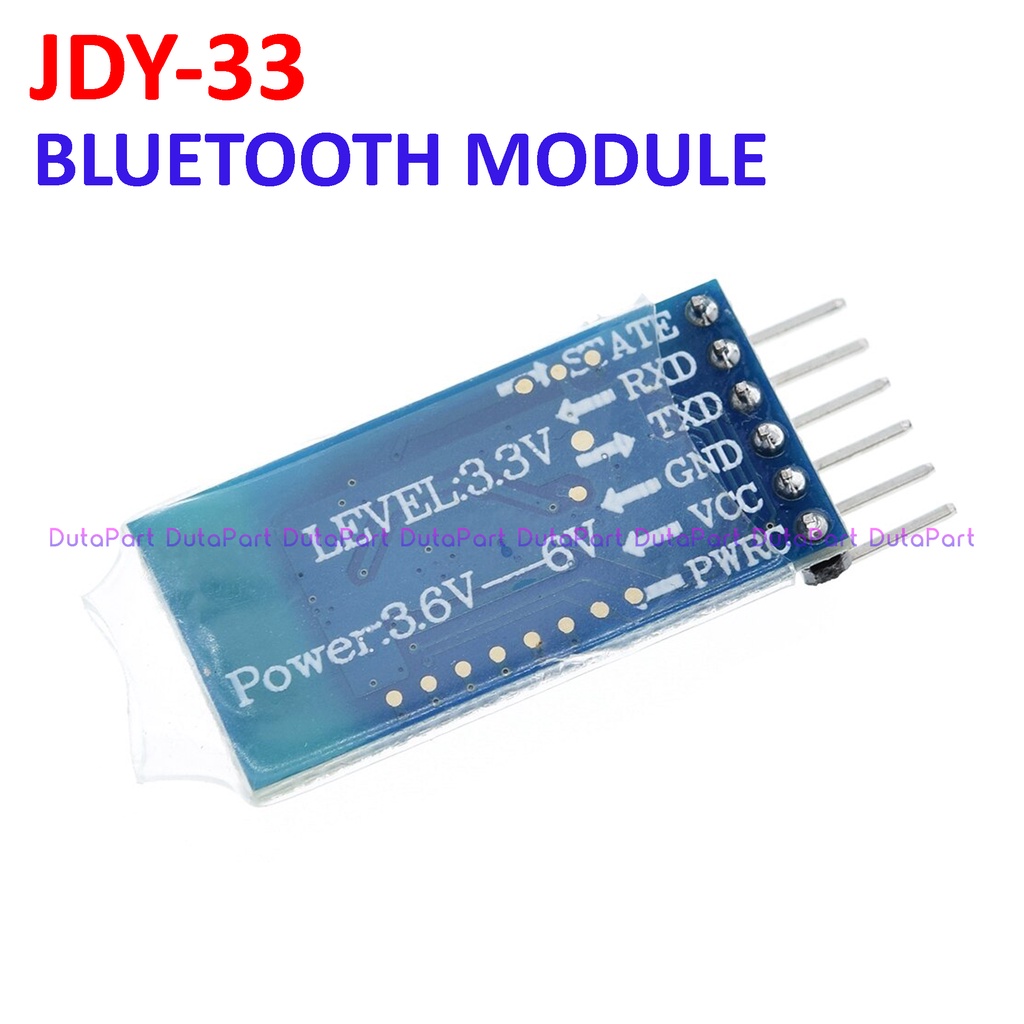

JDY-33 Dual Mode Bluetooth Serial Port SPP SPP-C Module HC-05 HC-06

Detail JDY-33 Dual Mode Bluetooth Serial Port SPP SPP-C Module HC-05 HC-06

JDY-33 Dual Mode Bluetooth Serial Port SPP SPP-C Module HC-05 HC-06

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***


JDY-33 is a Dual-mode Bluetooth (classic Bluetooth 3.0 SPP + BLE4.2).
Can communicate with Bluetooth-enabled computers, Android, IOS.
Compatible with HC-05/06 /JDY-31/30 slave Bluetooth 3.0


Application :
- Bluetooth POS machine
- Thermal printer
- Smart home control
- Automotive ODB testing equipment
- Bluetooth various transparent product applications


Working frequency: 2.4GHz
Communication Interface: UART
V Operating: 1.8-3.6V
Temp Operating: -40 - 80°C
Transmission distance: 30m
Master-slave support: Slave
Size: 26 x 13 x 1.7 mm
SMT soldering temperature: <260°
I Working: 6.5mA
I Deep Sleep: <10uA
Transmit Power: max 6db
Receiving Sensitivity: -96dbm



Untuk pembelian grosir atau info seputar hal teknis dan lainnya, Hubungi kami via Chat

Gambar produk
