JACK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLT4FX

Detail JACK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLT4FX

JACK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLT4FX

SPESIFIKASI
- MEREK - SEETRONIC
- TIPE - SLT4FX
- JENIS - JACK SPEAKON MALE 4 PIN
- WARNA - SILVER KOMBINASI BIRU DAN HITAM

UKURAN
- PANJANG - 88 MM
- DIAMETER DEPAN - 18 MM
- DIAMETER TENGAH - 25 MM
- DIAMETER BELAKANG - 20 MM
- BERAT BERSIH - 75 GR

ELECTRICAL PARAMETERS
- CONTACTS NO 4
- RATED CURRENT 40 AMPERE RMS
- RATED VOLTAGE 250 VOLT
- CONTACT RESISTANCE ≤5M Ω
- DIELECTRIC STRENGTH 500 VOLT DC
- INSULATION RESISTANCE > 1000M Ω

MECHANICAL PARAMETERS
- SERVICE LIFE > 1000
- WIRE DIAMETER 4 MM²

MATERIAL AND ENVIRONMENTAL PARAMETERS
- SHELL PA66 + 30% GF
- CONTACTS CU ALLOY
- CONTACT SURFACE PERAK
- FLAME RETARDANT GRADE UL94-V0
- TEMPERATURE RANGE -30°C TO +80°C

STANDARD
- IEC61984

HIGH QUALITY PRODUCT FOR PROFESSIONAL USE !!!

PASTIKAN PRODUK YANG ANDA BELI ORIGINAL ASLI SEETRONIC

BELILAH DI TOKO TERPERCAYA HANYA DI RUDY PERDANA ELECTRONIC

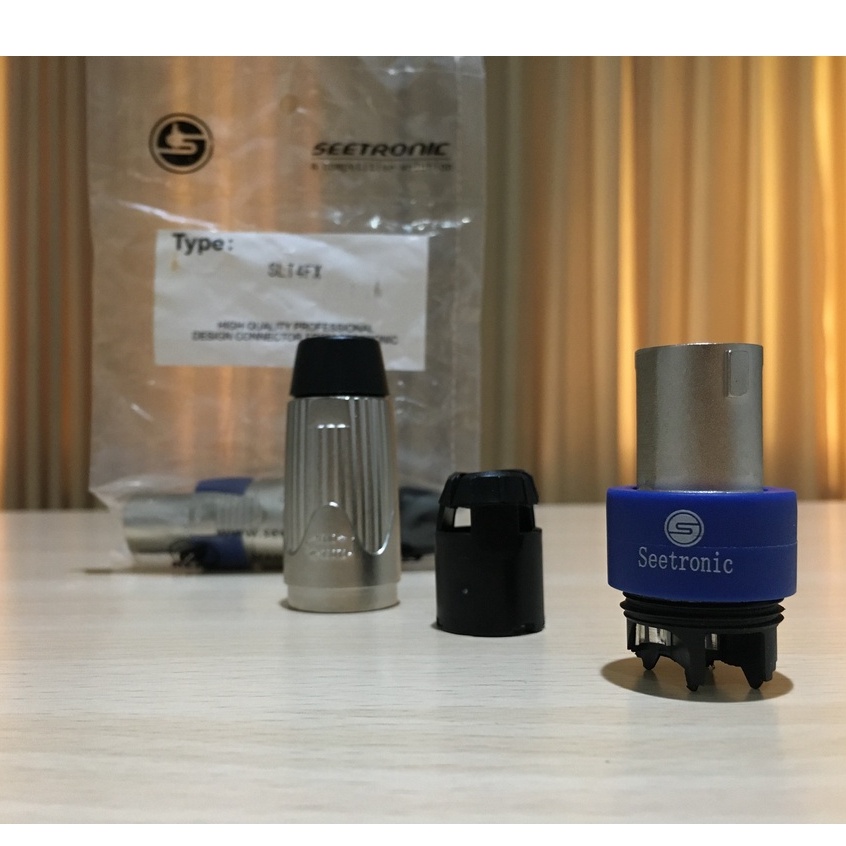

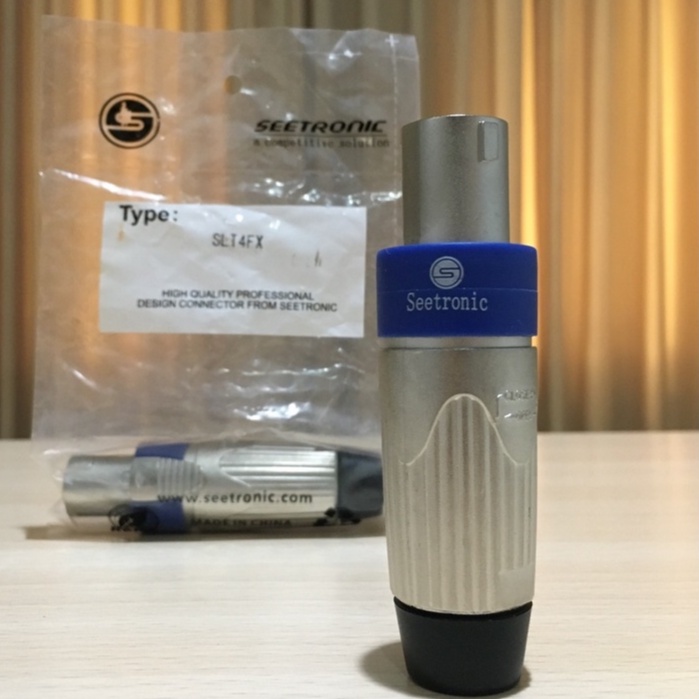

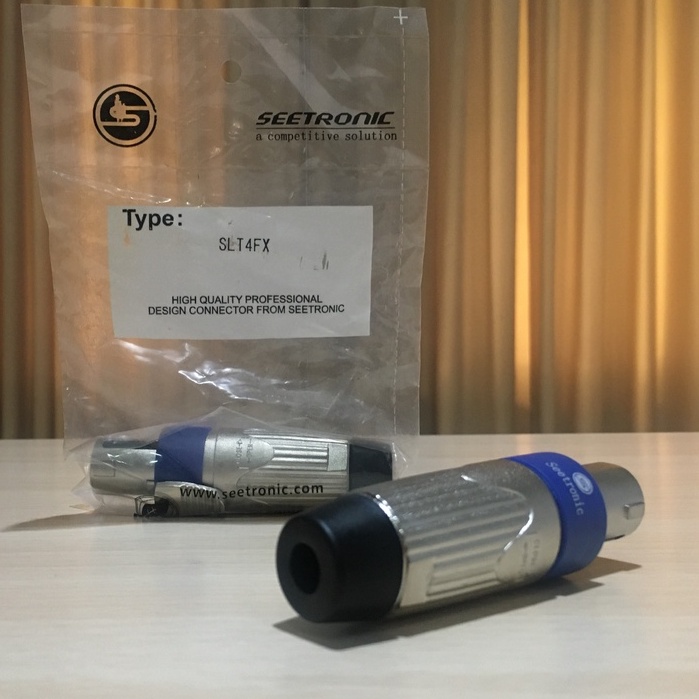

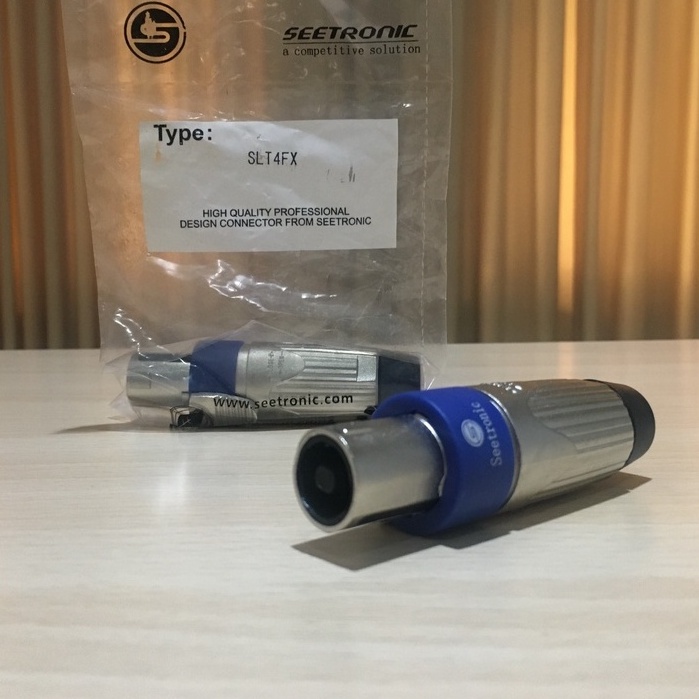

Gambar produk
