JACK MINI 3.5 MM STEREO GOLD PLATED LAPIS EMAS SEETRONIC M2TP3C-BG

Detail JACK MINI 3.5 MM STEREO GOLD PLATED LAPIS EMAS SEETRONIC M2TP3C-BG

JACK MINI 3.5 MM STEREO GOLD PLATED LAPIS EMAS SEETRONIC M2TP3C-BG

SPESIFIKASI
- MEREK - SEETRONIC
- TIPE - M2TP3C-BG
- JENIS - AUDIO STEREO MALE MINI 3.5 MM / TSS
- WARNA - HITAM

ELECTRICAL PARAMETER
- RATED CURRENT - DEPENDS ON MATING CONNECTOR
- RATED VOLTAGE - < 50 VOLT
- CONTACT RESISTANCE - ≤ 5 M Ω
- DIELECTRIC STRENGTH - 1000 VOLT DC
- INSULATION RESISTANCE -＞2 G Ω

MECHANICAL PARAMETER
- SIGNAL LINE - 24 AWG
- POWER LINE - 0.2 MM²
- CABLE - ∅ 2.0 - 4.5 MM

MATERIAL AND ENVIRONMENTAL PARAMETERS
- SHELL - ZINC DIECAST
- DRIVEPIPE - BRASS + PU
- CONTACTS - BRASS
- CONTACT SURFACE - GOLD PLATE
- INNER CORE - POLYAMIDE
- SHELL ELECTROPLATING - BLACK COATING
- TEMPERATURE RANGE - - 20 ℃ to + 65 ℃

STANDARD
- IEC 68-2-20

HIGH QUALITY PRODUCT FOR PROFESSIONAL USE !!!

PASTIKAN PRODUK YANG ANDA BELI ORIGINAL ASLI SEETRONIC

BELILAH DI TOKO TERPERCAYA HANYA DI RUDY PERDANA ELECTRONIC

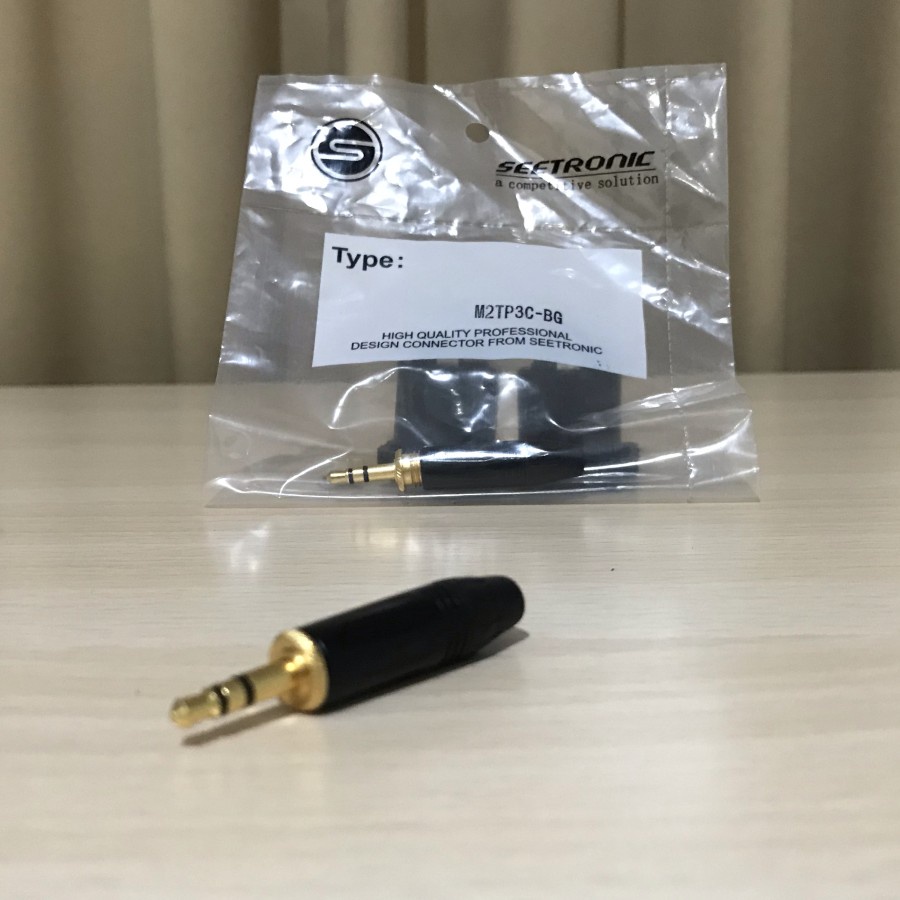

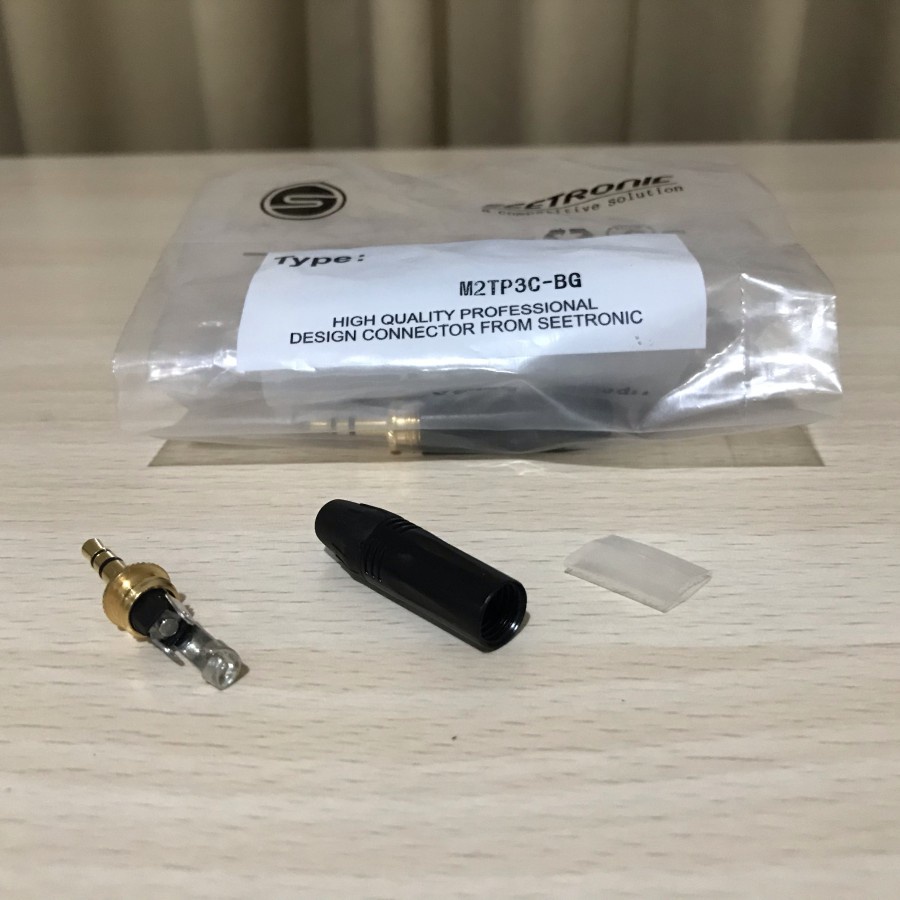

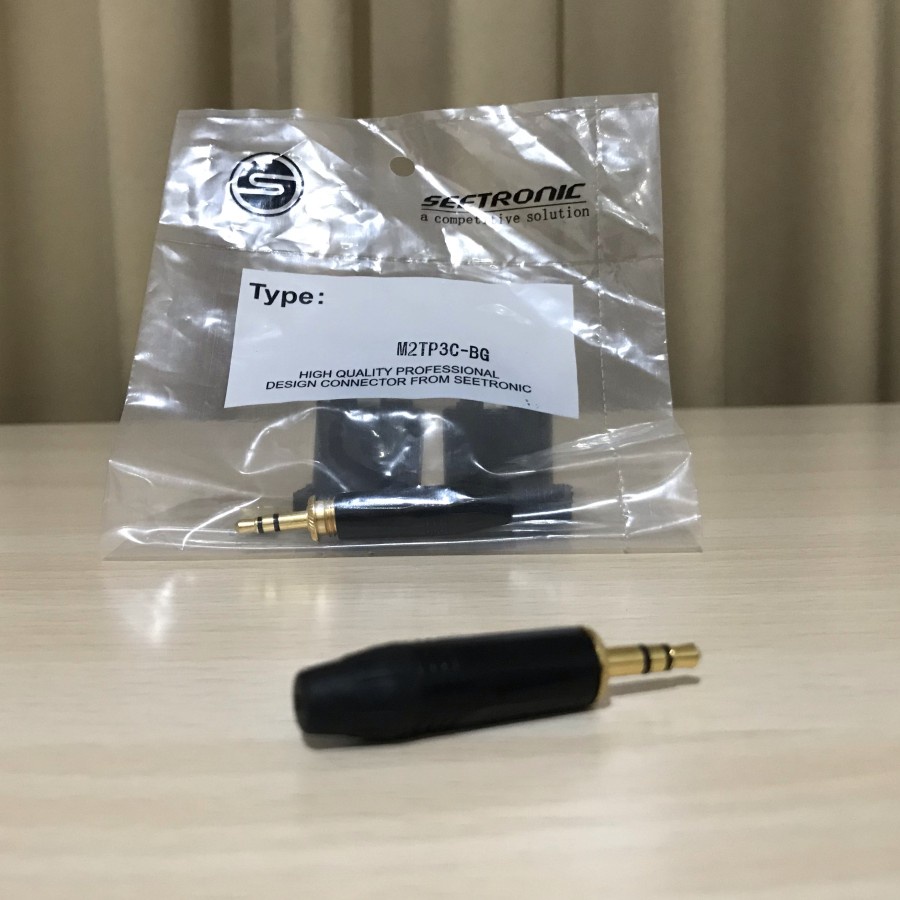

Gambar produk
