JACK JEK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLDF4 BESI FULL METAL

Detail JACK JEK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLDF4 BESI FULL METAL

JACK JEK SPEAKON SPIKON MALE 4 PIN SEETRONIC SLDF4 BESI FULL METAL

SPESIFIKASI
MEREK - SEETRONIC
TIPE - SLDF4
JENIS - JACK SPEAKON MALE 4 PIN
WARNA - SILVER

UKURAN
TIP
- PANJANG - 20 MM
- DIAMETER - 18 MM
BODI
- PANJANG - 70 MM
- DIAMETER - 25 MM
- DIAMETER TAIL - 20 MM
BERAT BERSIH - 90 GRAM

ELECTRICAL PARAMETERS
- CONTACTS NO 4
- RATED CURRENT 40 AMPERE RMS
- RATED VOLTAGE 250 VOLT
- CONTACT RESISTANCE ≤5M Ω
- DIELECTRIC STRENGTH 500 VOLT DC
- INSULATION RESISTANCE > 1000M Ω

MECHANICAL PARAMETERS
- SERVICE LIFE > 1000
- WIRE DIAMETER 4 MM²

MATERIAL AND ENVIRONMENTAL PARAMETERS
- SHELL PA66 + 30% GF
- CONTACTS CU ALLOY
- CONTACT SURFACE PERAK
- FLAME RETARDANT GRADE UL94-V0
- TEMPERATURE RANGE -30°C TO +80°C

STANDARD
- IEC61984

HARGA JUAL UNTUK PEMBELIAN 1 PCS

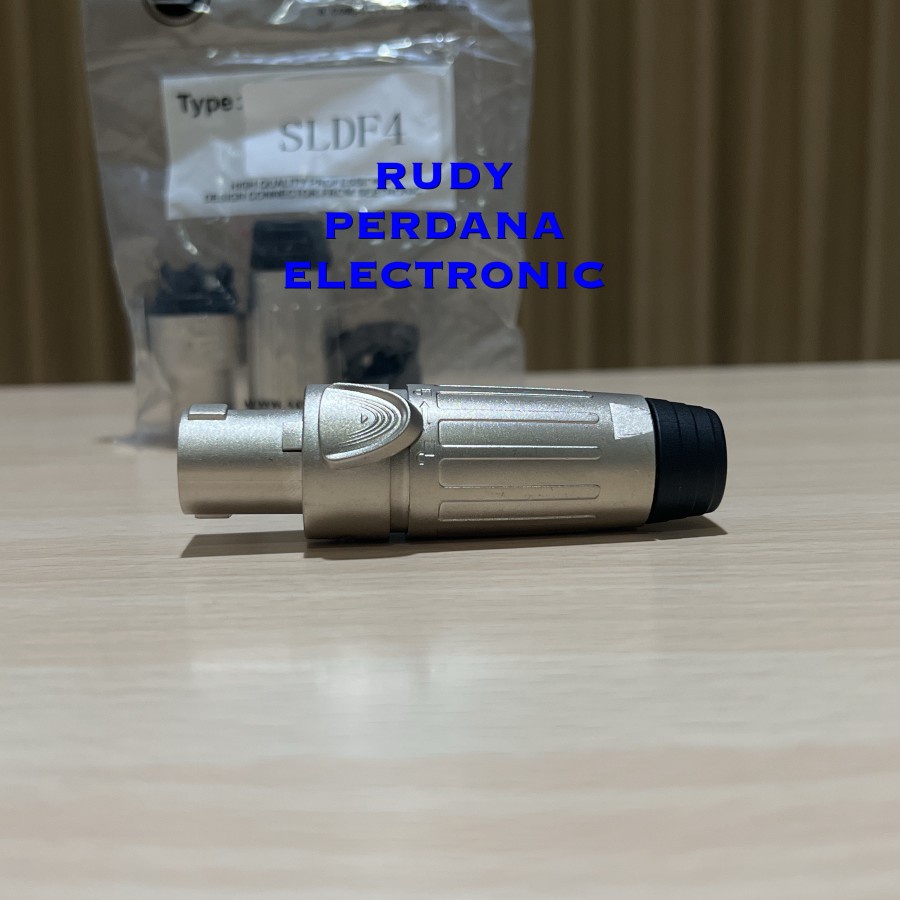

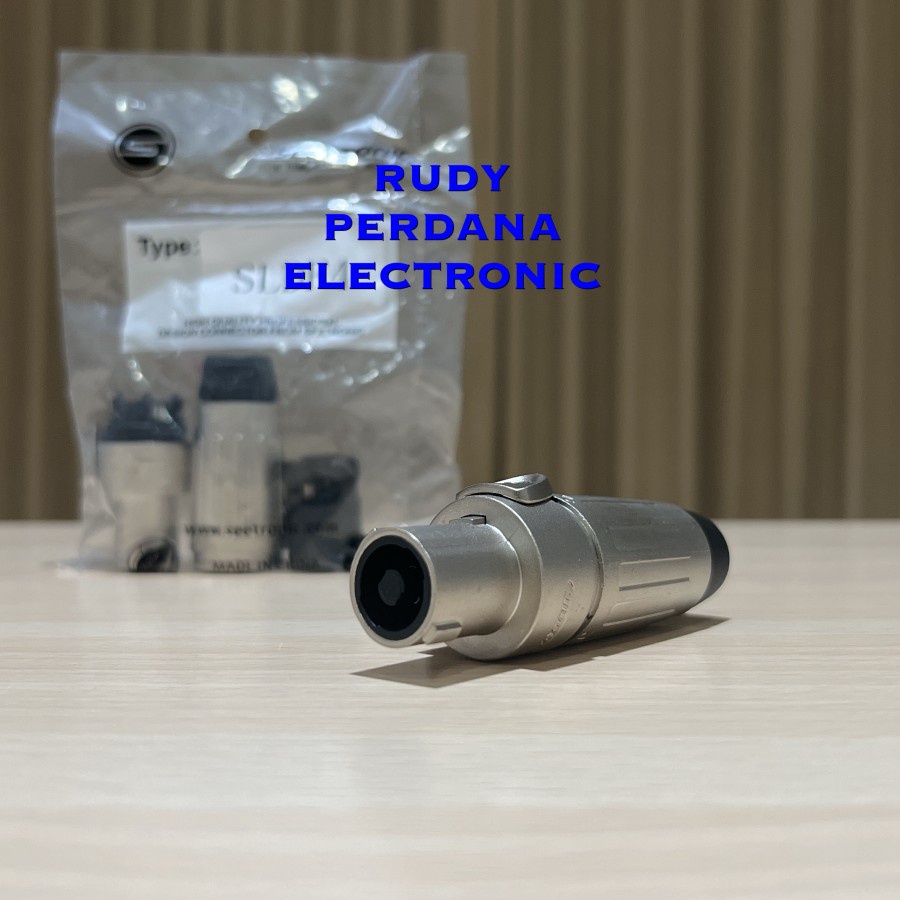

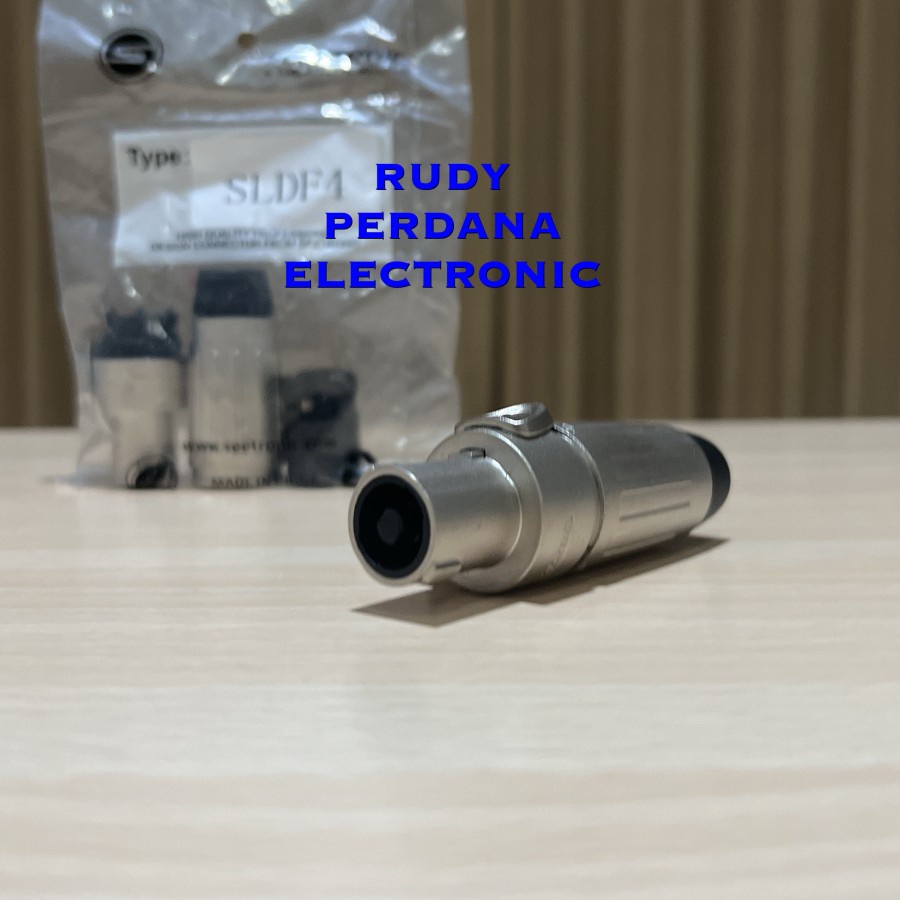

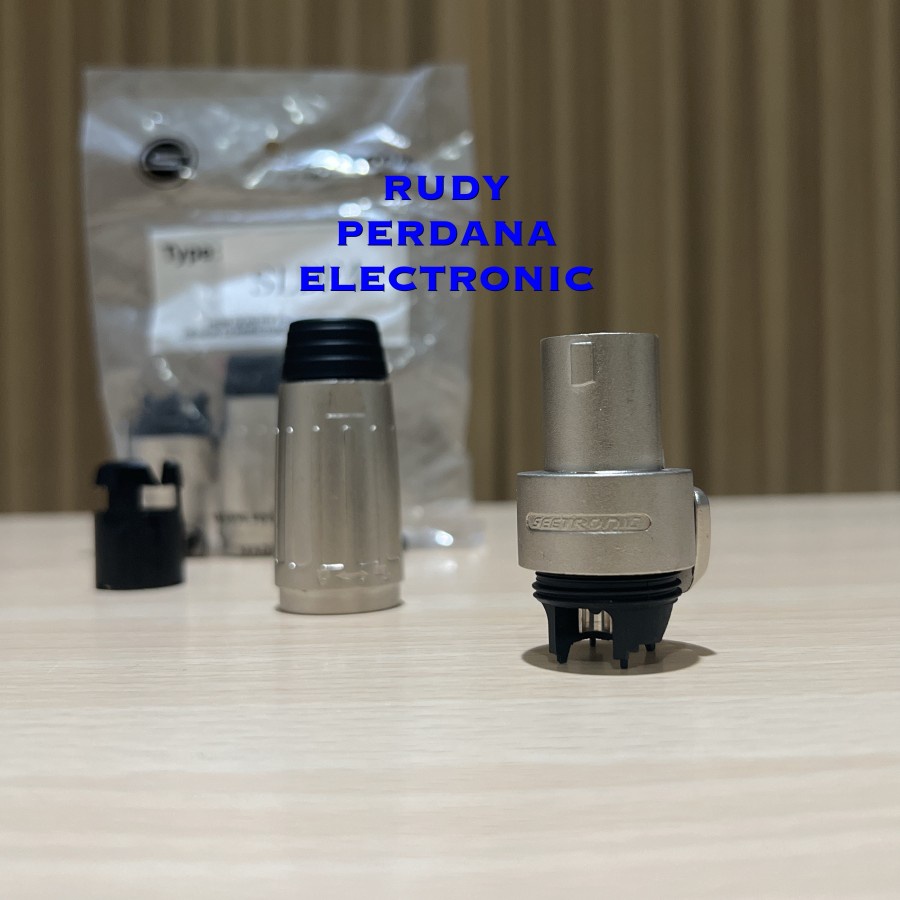

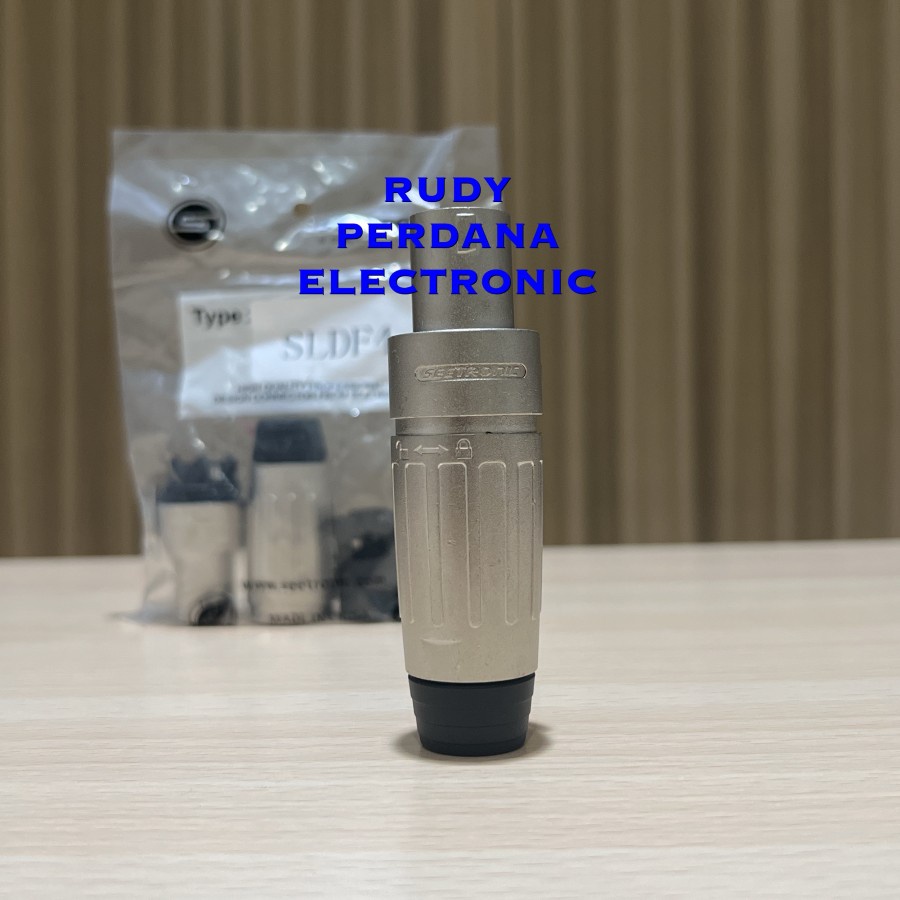

Gambar produk
