JACK JEK RCA MALE GOLD PLATED LAPIS EMAS SEETRONIC MT380
Merek: Seetronic | Lihat selengkapnya produk Audio dari SeetronicDeskripsi singkat
Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > JACK JEK RCA MALE GOLD PLATED LAPIS EMAS SEETRONIC MT380
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail JACK JEK RCA MALE GOLD PLATED LAPIS EMAS SEETRONIC MT380
JACK JEK RCA MALE GOLD PLATED LAPIS EMAS SEETRONIC MT380SPESIFIKASI
MEREK - SEETRONIC
TIPE - MT380
JENIS - JACK RCA MALE
ELECTRICAL PARAMETER
- RATED CURRENT - DEPENEDS ON MATING CONNECTOR
- RATED VOLTAGE - 50 VOLT
- CONTACT RESISTANCE - > 10 GmΩ
- DIELECTRIC STRENGTH - 1500 VOLT DC
- INSULATION RESISTANCE - > 5 GΩ
- CONTACT CAPACITANCE - ≤ 7 pF
MECHANICAL PARAMETER
- SERVICE LIFE - > 2000
- SIGNAL LINE - 16 AWG
- POWER LINE - 1.5 MM2
- CABLE - 3.5 - 6.5 MM
MATERIAL AND ENVIRONMENTAL PARAMETERS
- SHELL - ZINC DIECAST
- CONTACTS - BRASS
- CONTACT SURFACE - AU
- STRAIN RELIEF - POM
- FLAME-RETARDANT GRADE - UL94-HB
- TEMPERATURE RANGE - -30°C to +80°C
STANDARD
- ELECTROPLATING STANDARD - IEC 68-2 20
- STANDARD - IEC 601-14
- PROTECTION LEVEL - IP40
HARGA JUAL UNTUK PEMBELIAN 1 PCS

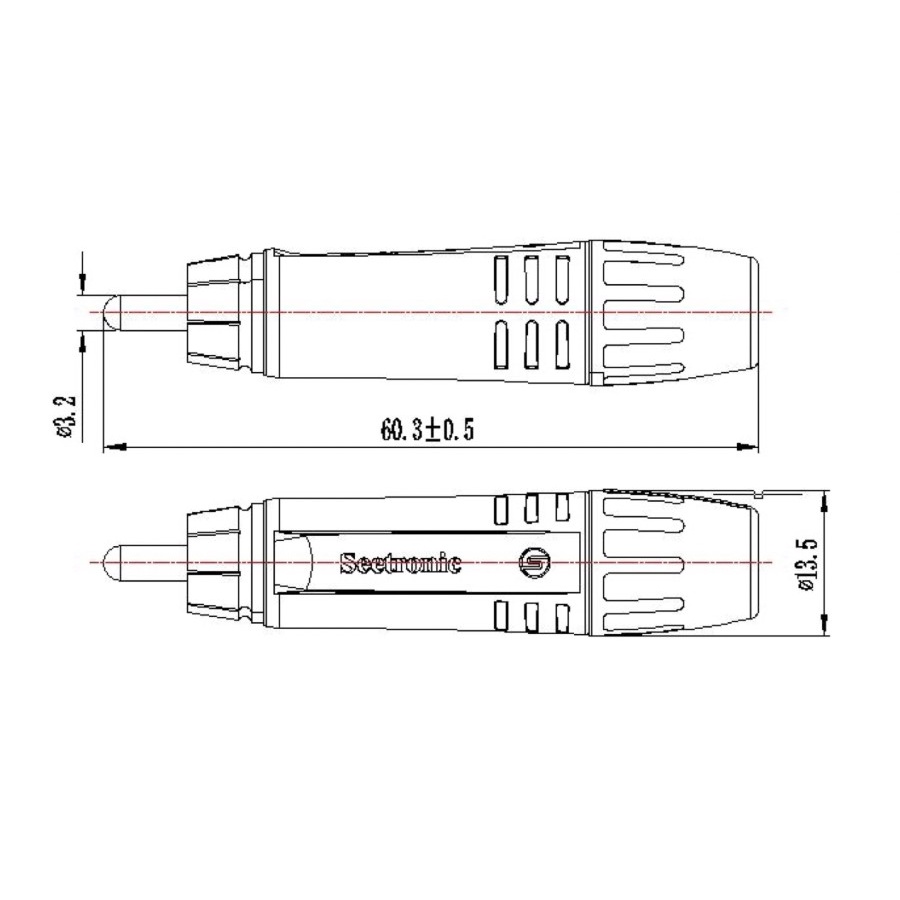

Gambar produk
