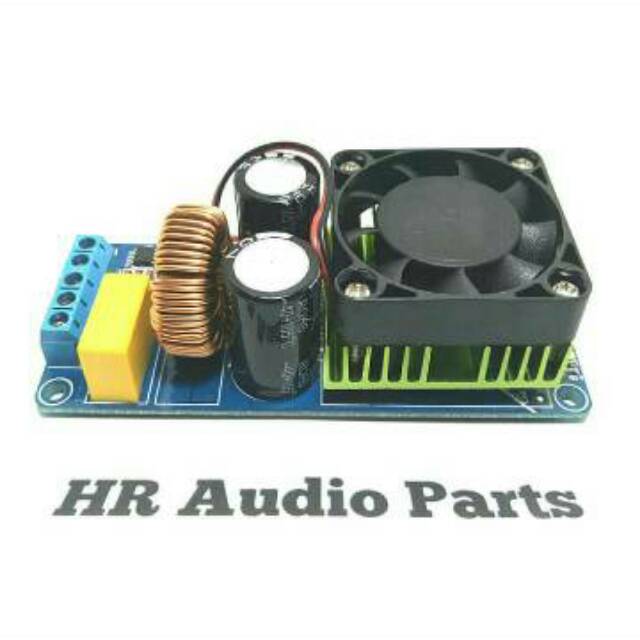

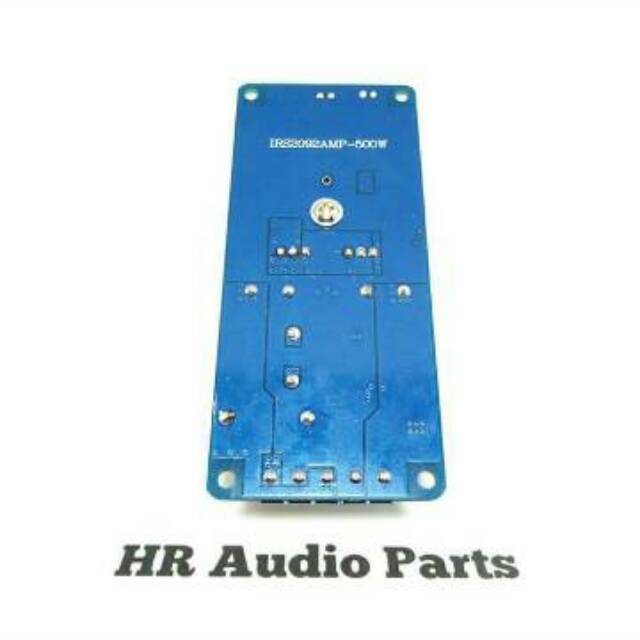

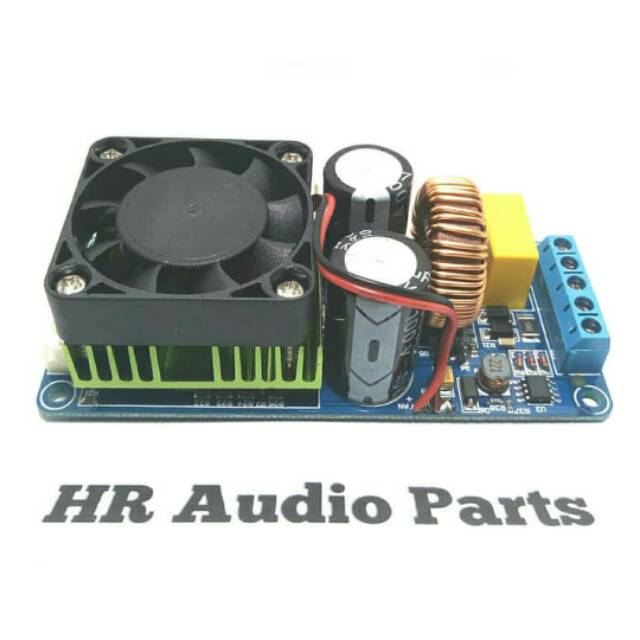

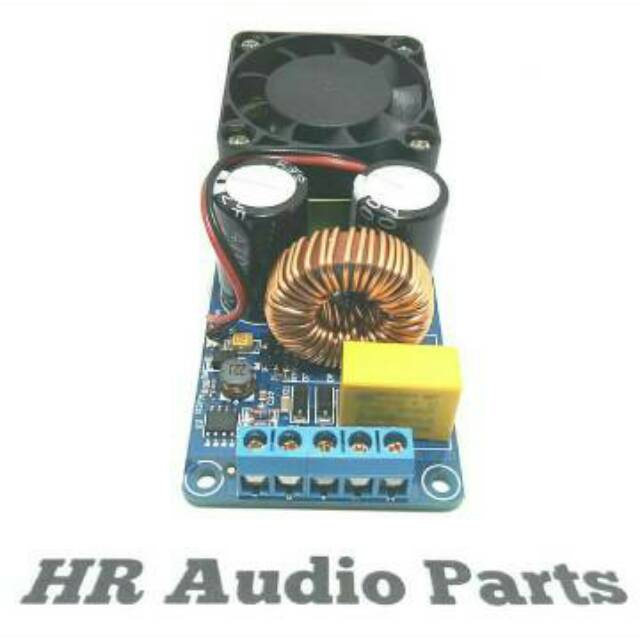

Detail IRS2092S irs2092 500W Mono Digital Power Amplifier Class D HIFI Board Module
IRS2092S 500W Mono Digital Power Amplifier Class D HIFI Board ModuleSpecifications:
1. Power supply: dual DC power supply 58- 70V
2. The rated output power: 500W ( 65V power supply, 4 ohm load, distortion 10%)
3. Efficiency:> = 90%
4. SNR: 90dB
5. The total harmonic distortion:
380W ( 65 power 4 ohm speaker, distortion 0 .1%)
280W ( 65 power 8 ohm speaker, distortion 0 .1%)
6. Frequency range: 20Hz-20KHz
7. Speaker: 4-8ohm
8. Voltage Magnification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. That output DC bias protection speaker protection: Yes
12. Over-temperature protection: Yes, radiator FET temperature higher than 100 C, turn off the output!
13. Product Size: approx. 100*50*30mm/3.93*1.96*1.18''
Gambar produk
