IRFZ44 IRFZ44N TO 220 55V 49A N CHANNEL TRANSISTOR MOSFET

Detail IRFZ44 IRFZ44N TO 220 55V 49A N CHANNEL TRANSISTOR MOSFET

P/N : SMC-0023

============

Mosfet N-Channel yang sangat populer dan banyak aplikasinya gan. Dipake sebagai switch, driver motor, vape dll.

Silahkan di order :D

Description

Advanced HEXFET Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit,combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Feature :
- RDS(on) = 17.5m
- VDSS = 55V
- ID = 49A
- Advanced Process Technology
- Ultra Low On-Resistance
- Dynamic dv/dt Rating
- 175C Operating Temperature
- Fast Switching
- Fully Avalanche Rated

Paket : 1x IRFZ44 IRFZ44N TO-220 55V 49A N-CHANNEL TRANSISTOR MOSFET

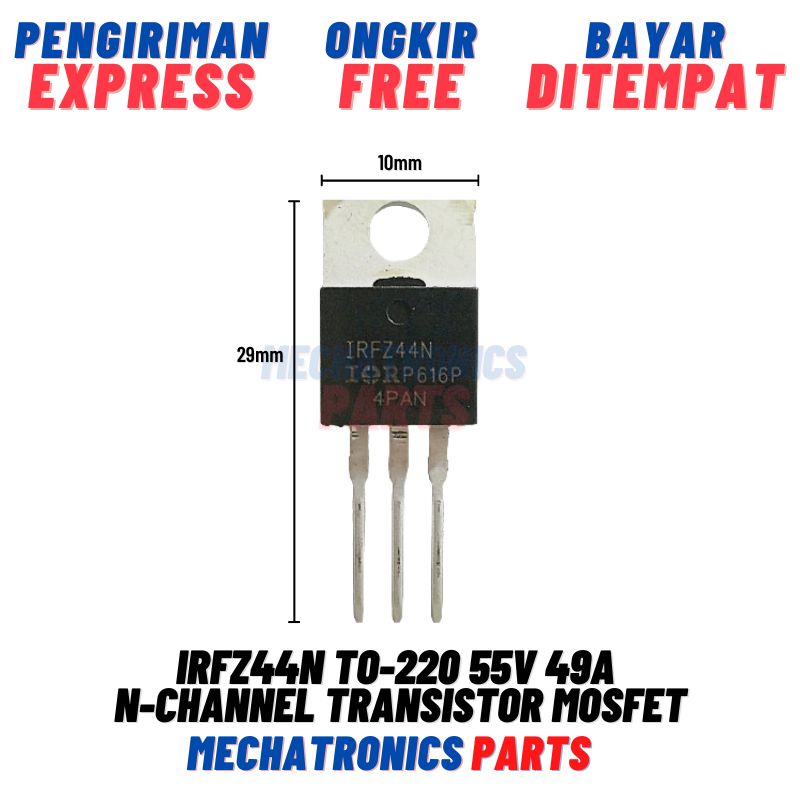

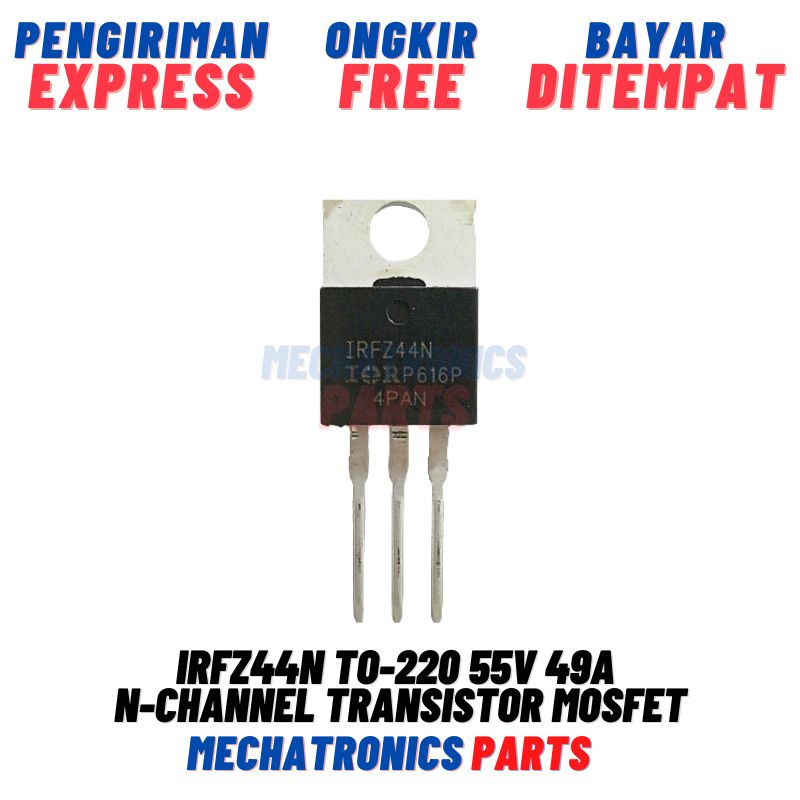

Gambar produk
