IRF9540 IRF9540N 100V 23A P CHANNEL TO 220 TRANSISTOR MOSFET

Detail IRF9540 IRF9540N 100V 23A P CHANNEL TO 220 TRANSISTOR MOSFET

P/N : SMC-0021

==========

Berbeda dengan Transistor BJT yang beroperasi dengan memanfaatkan arus, MOSFET beroperasi dengan memanfaatkan tegangan. Ketika ada beda tegangan di Gate-Source nya, arus akan mengalir dari Drain ke Source. Sifat MOSFET ini seperti potensiometer yang resistansi nya diatur melalui VGS. VGS makin mendekati threshold-nya, resistansinya makin kecil, dan sebaliknya.

Sangat cocok digunakan sebagai switch digital karena bisa mengalirkan arus yang lebih besar dibanding BJT gan :D

mari di ORDER !!!! :D

Description in englishhhh
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Features
- Advanced Process Technology
- Dynamic dv/dt Rating
- 175C Operating Temperature
- Fast Switching
- P-Channel
- Fully Avalanche Rated

Spesifikasi :
- Model : IRF9540
- Number of Channels : 1 Channel
- Transistor Type : 1 P-Channel
- Transistor Polarity : P-Channel
- Vds - Drain-Source Breakdown Voltage : - 100 V
- Id - Continuous Drain Current : - 23 A
- Rds On - Drain-Source Resistance : 117 mOhms
- Vgs - Gate-Source Voltage : 20 V
- Pd - Power Dissipation : 140 W

Paket : 1X IRF9540 IRF9540N 100V 23A P-CHANNEL TO-220 TRANSISTOR MOSFET

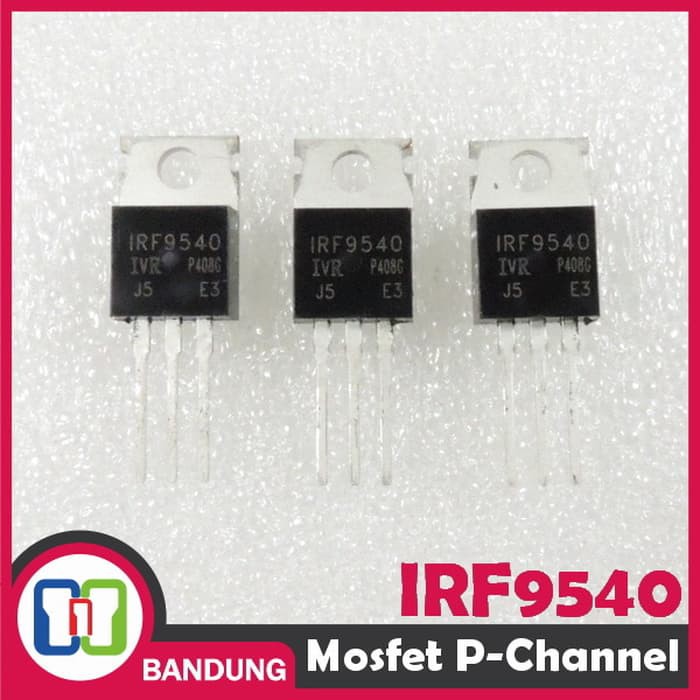

Gambar produk
