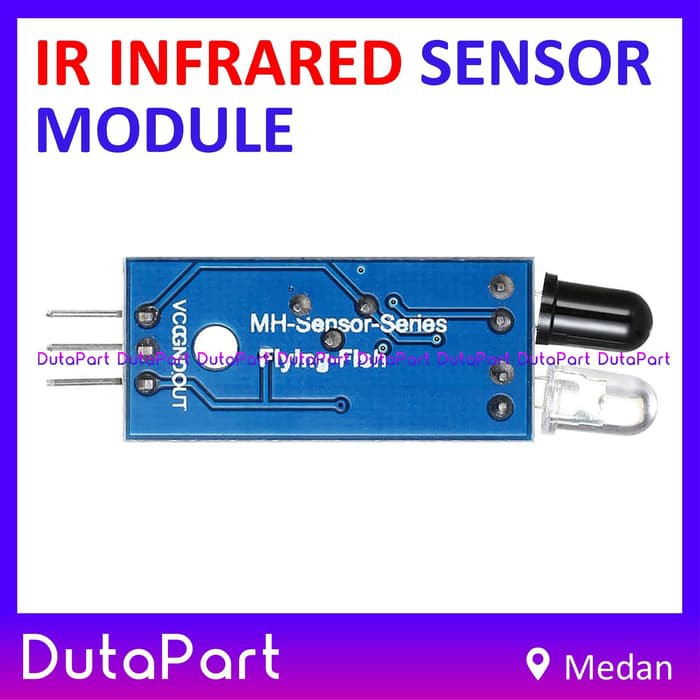

IR Infrared Sensor Obstacle Avoidance Module Proximity Arduino Modul

Detail IR Infrared Sensor Obstacle Avoidance Module Proximity Arduino Modul

IR Infrared Sensor Obstacle Avoidance Module Proximity Arduino Modul

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

Barang sama/sesuai dengan foto diatas.

Deskripsi :
Vcc : 3.3 to 5 Vdc Supply Input
Gnd : Ground Input
Out : Output that goes low when obstacle is in range
Power LED : Illuminates when power is applied
Obstacle LED : Illuminates when obstacle is detected
Distance Adjust : Adjust detection distance.
CCW decreases distance.
CW increases distance.
IR Emitter : Infrared emitter LED
IR Receiver : Infrared receiver that receives signal transmitted by Infrared emitter.

Fungsi :
-Mendeteksi keberadaan benda di depan sensor
-Membedakan Warna Hitam dan Putih saat digunakan untuk Line Follower

Aplikasi :
-Robot Avoider
-Robot Maze Solving
-Robot Line Follower

Untuk info seputar hal teknis dan lainnya, Hubungi kami
