IR INFRARED PHOTODIODE RECEIVER PENERIMA 940NM 5MM

Detail IR INFRARED PHOTODIODE RECEIVER PENERIMA 940NM 5MM

SEN-0029
========

Deskripsi:
=================================
Recever photodioda yang memiliki gelombang infrared 940nm dan dimensi 5mm ini
berfungsi untuk menangkap cahaya yang dipancarkan emitter. Aplikasi infrared ini
banyak banget gan, salah satunya di remote control TV. Saat remote nya nggak
fungsi, agan pencet2 si tombolnya lebih kenceng berkali-kali, penganiayaan,
padahal nggak fungsi karena abis batre :D

So, silahkan di ORDER dah gan !!!!
Berikut spek, fitur dan aplikasinya dalam bahasa london

Specifications:
=================================
- Receiver (Photodiode)
- Peak Wavelength : 940 nm
- Dark Current : 10 nA
- Vr - Reverse Voltage : 32 V
- Rise Time : 6 ns
- Fall Time : 6 ns
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: - 25 C
- Pd - Power Dissipation: 150 mW
- Photocurrent: 3 uA

Features:
=================================
- High radiant intensity
- 5mm through-hole packages
- 2.54mm lead spacing
- Low forward voltage

Applications:
=================================
- Consumer
- IR Touch-Panel
- Industrial equipment
- Other Infrared application systems

Paket :
=================================
- 1x INFRARED PHOTODIODE RECEIVER 940NM 5MM

UNTUK HARGA GROSIR CHAT US ^^

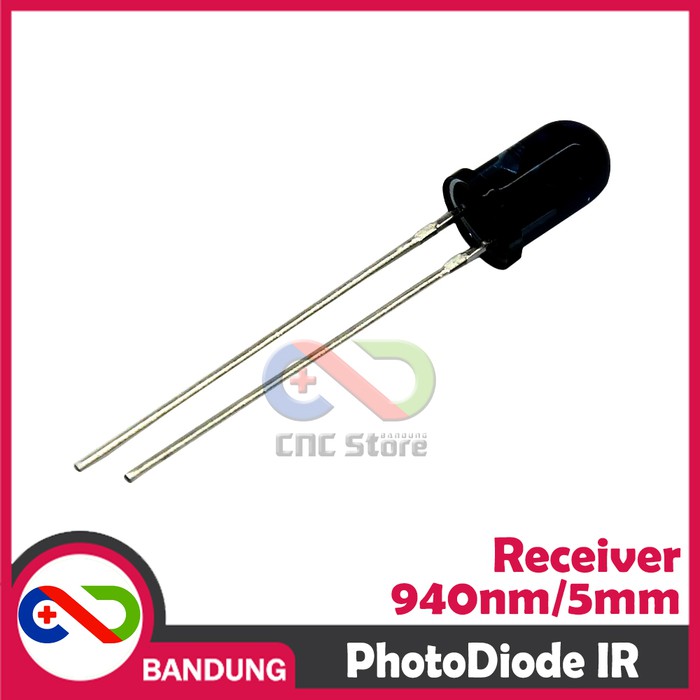

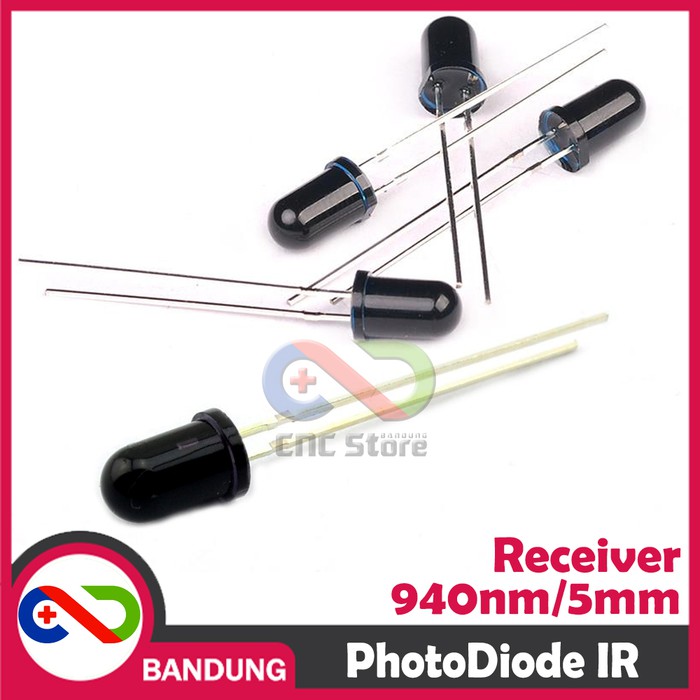

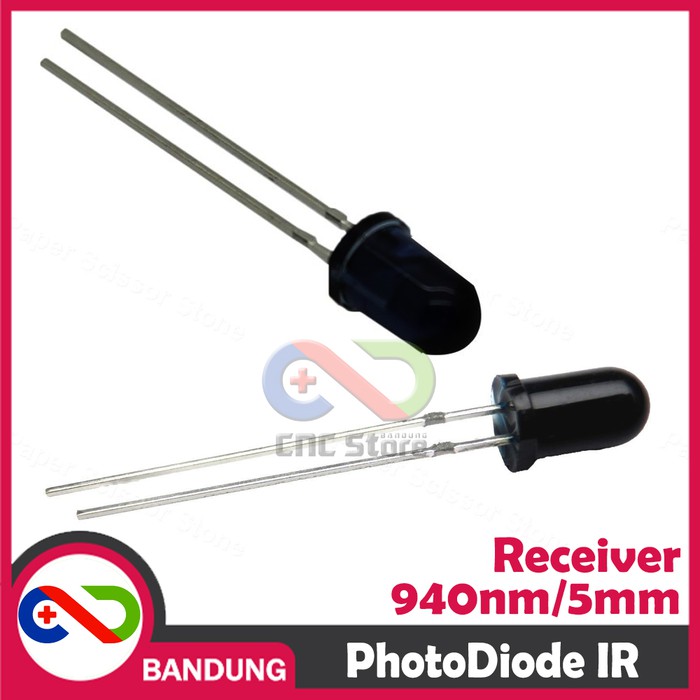

Gambar produk
