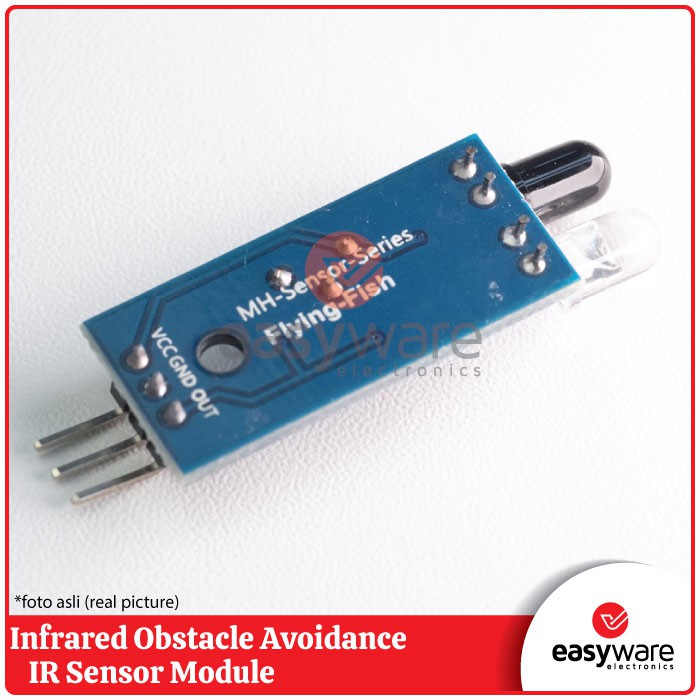

Detail IR INFRARED OBSTACLE AVOIDANCE SENSOR MODULE IR PROXIMITY SENSOR
Hi #RekanEasyWare ... EasyWare Part#: EP000689

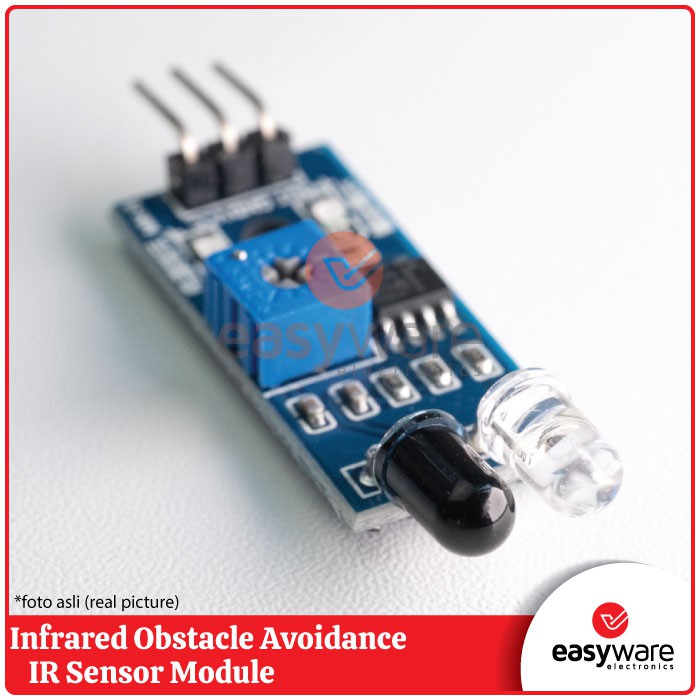

This portable infrared obstacle avoidance sensor module will detect an object from 2cm to 30cm with a detection angle of 35 degrees. It also has a potentiometer which allows you to adjust the detection range of the sensor. Turning the potentiometer clockwise increases the detection range while turning the potentiometer anticlockwise reduces the detection range. The output is digital so the I/O pin should be connected to a digital input of your microcontroller.
SPESIFIKASI : - Board Power Supply: 3 – 5 V - Range: 2cm to 30cm - Angle: 35 degrees - Power LED: Illuminates when power is applied - Obstacle LED: Illuminates when obstacle is detected - Distance Adjust: Adjust detection distance. CCW decreases distance. CW increases distance.
KELENGKAPAN : - IR INFRARED OBSTACLE AVOIDANCE SENSOR MODULE FOR ARDUINO
