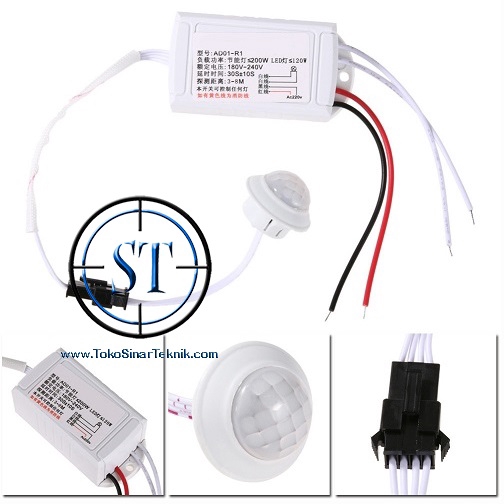

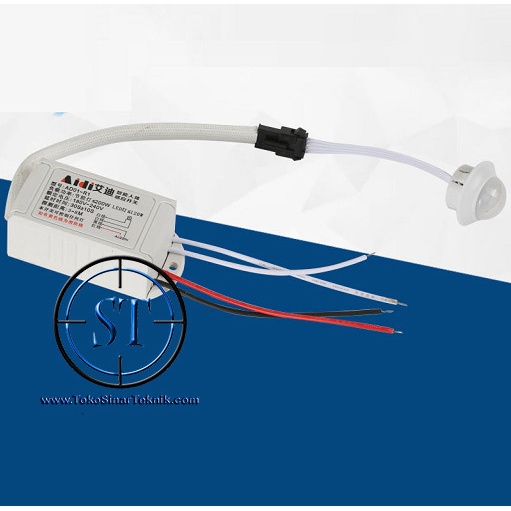

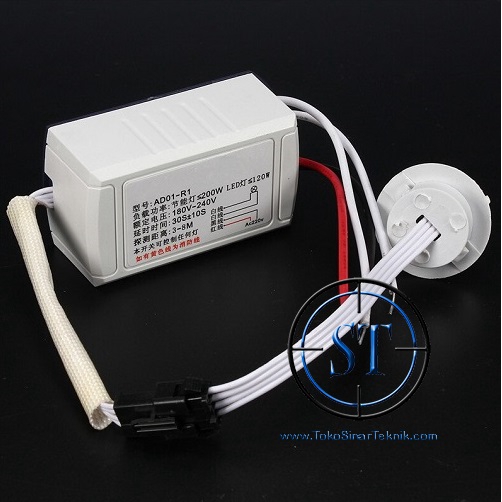

IR Infrared Module Body Sensor Pir Intelligent Light Motion Detector Sensing Switch AC 220V Automatic Control Switch

Detail IR Infrared Module Body Sensor Pir Intelligent Light Motion Detector Sensing Switch AC 220V Automatic Control Switch

Package Included
1 x 220V Intelligent Light Body Sensing Switch
REVISI YA DAYA HANYA SAMPAI 200W SAJA BUKAN 500W


Voltage: AC 220V +/- 15
Load power: 50W-200W at 220Vac
Induction distance: 4-8Mtrs
Light intensity of illumination: 6LUX (equivalent of sky brigthness at dawn)
Angle of induction: 140
Time extension: 20-40s
Color: White
Size: 6.3 x 3.8 x 2.8cm
Net weight:51g
Package weight:61g

Features
1.Model: 220V
2.Infrared technology based automatic motion sensor switch.
3.Automatic turn ON/OFF while detected people come or left.
4.Automatic locked in day time to save energy.
5.Easy to install or replace existing switch.
6.Good solution for energy saving
7.Ideal for using on Incandescent Lamp/Energy Saving Lamp/LED Light
8.Voltage: 220V
9.Load Power: Incandescent lamp


INSTRUCTIONS FOR USING:
1. Wire the Switch as shown on top of the housing. Use bulb or lamp as load for initial tesing to determine easily if the switch is working.
2. Plug-in the Switch to wall AC outlet. At sensor unblock state (sensor front clear from obstructions).
You will see the lamp flashing 3 times after power initialization and then turn-off.
3. At sensor block state. You will see the lamp turns-on after power initialization.
4. At sensor unblock state or normal condition. After a minute, block the sensor with hand or any object.
NOTE: Depending on the environment condition, the sensor sensitivity varies. The Sensor sometimes needs to be stabilized for about 10-15 minutes.
This will turn ON the switch for about 20s-40s and then turn OFF.
