IR Infrared Barier Obstacle Sensor Avoidance Module Arduino STM32

Detail IR Infrared Barier Obstacle Sensor Avoidance Module Arduino STM32

Deskripsi :
Vcc : 3.3 to 5 Vdc Supply Input
Gnd : Ground Input
Out : Output that goes low when obstacle is in range
Power LED : Illuminates when power is applied
Obstacle LED : Illuminates when obstacle is detected
Distance Range : 2 cm to 30 cm
Distance Adjust : Adjust detection distance.
CCW decreases distance.
CW increases distance.
IR Emitter : Infrared emitter LED
IR Receiver : Infrared receiver that receives signal transmitted by Infrared emitter.

Fungsi :
-Mendeteksi keberadaan benda di depan sensor
-Membedakan Warna Hitam dan Putih saat digunakan untuk Line Follower

Aplikasi :
-Robot Avoider
-Robot Maze Solving
-Robot Line Follower

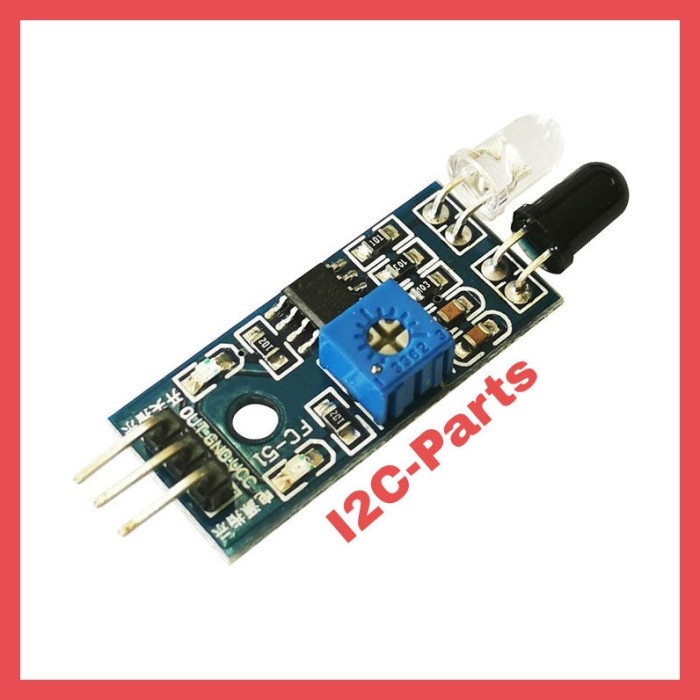

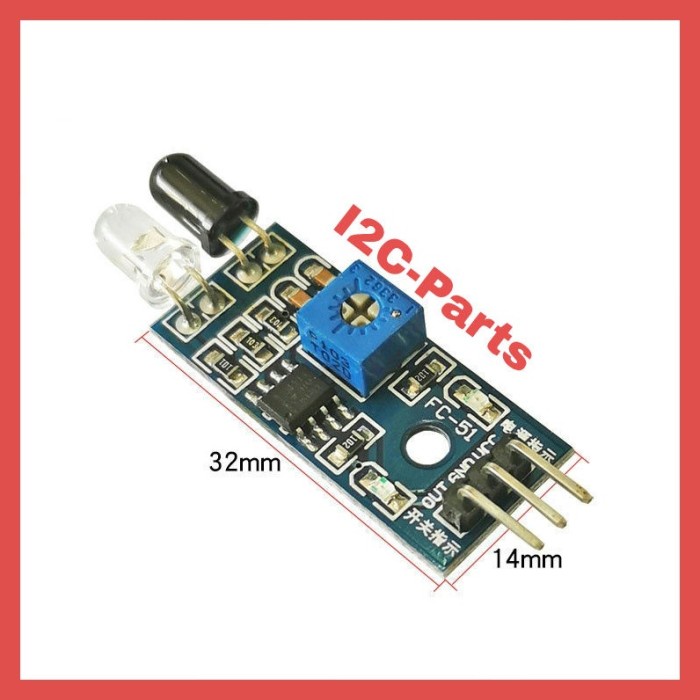

Gambar produk
