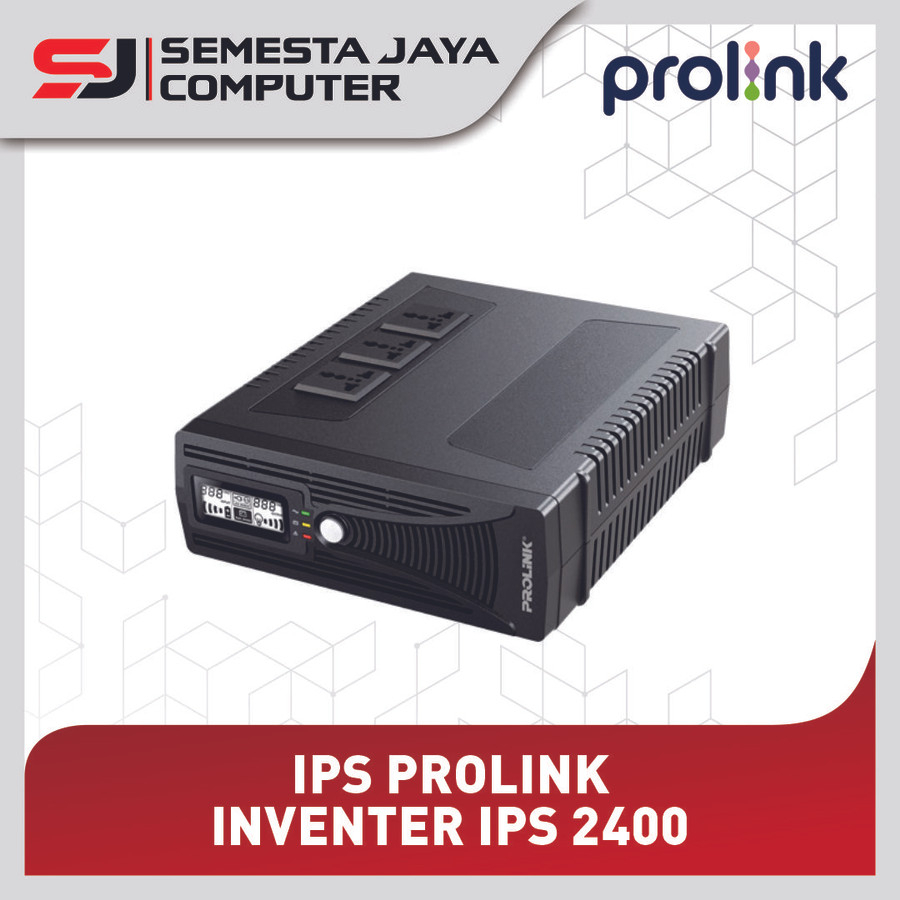

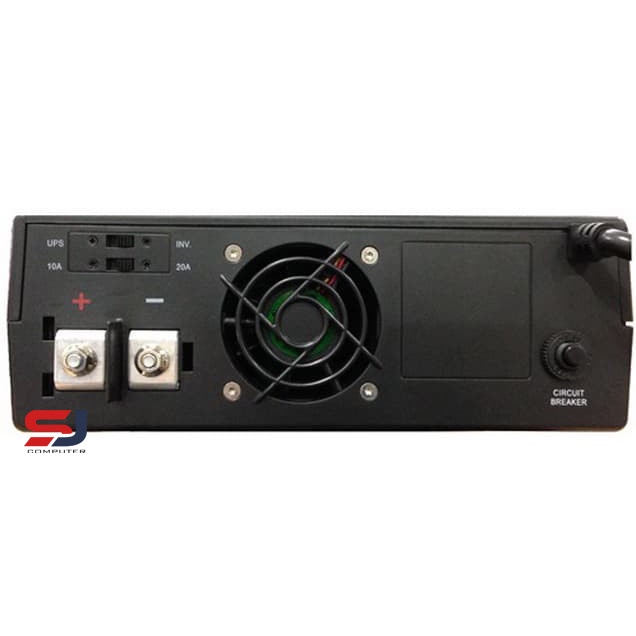

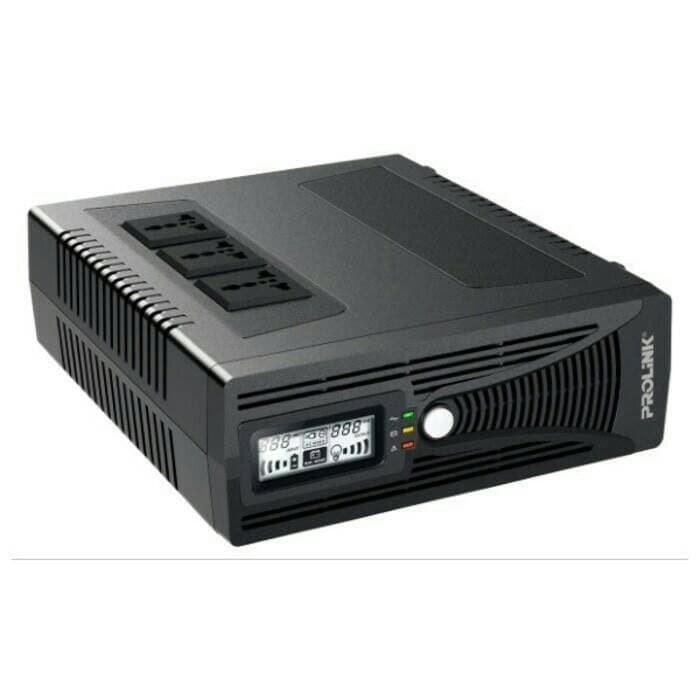

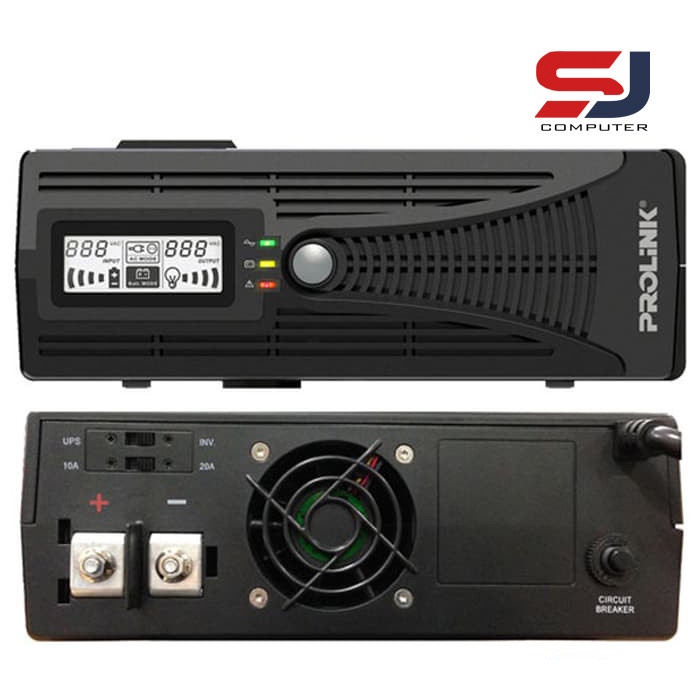

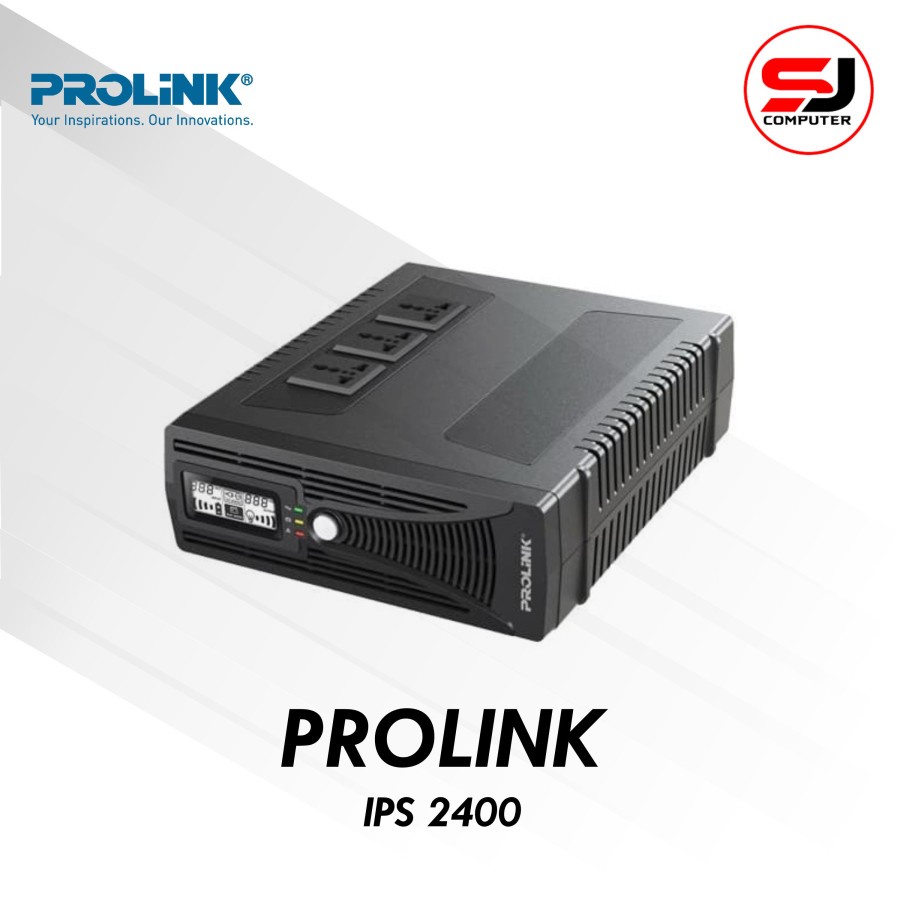

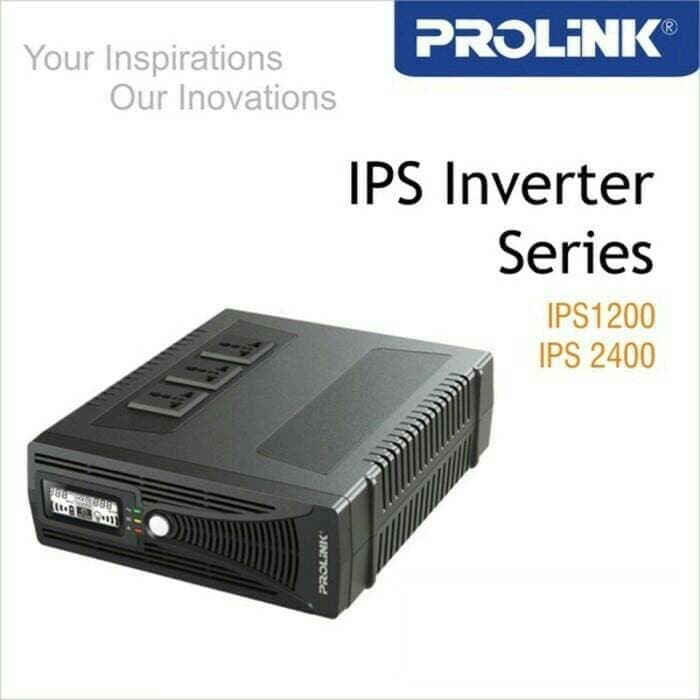

IPS INVERTER IPS2400 PROLINK

Detail IPS INVERTER IPS2400 PROLINK

Prolink Inverter IPS Series 2400
-Simulated sine wave inverter
-10A or 20A charging current
-LCD and LED indicators
-Overload and short circuit protection
-Auto restart while AC is recovering

Key Features & Benefits:
- Simulated sine wave inverter
- 10A or 20A charging current
- Auto restart while AC is recovering
- Overload and short circuit protection
- Compatible for use with Generators & Computer-related devices*
- LCD and LED indicators
- Cold start function

Spesifikasi:
Brand : Prolink
Model : IPS2400
Capacity : 2400 VA / 1440W
Idealnya pakai AKI : 24V 200MAH
Input :
Nominal Voltage 220/ 230/ 240VAC
Voltage Range :
Narrow Range 170 280 VAC (UPS mode)
Wide Range 90 - 280VAC
Output :
Nominal Voltage 230VAC
Output Voltage Regulation (Battery Mode) +10%/ -18%
Frequency 50Hz or 60Hz
Frequency Regulation +/-0.1 Hz (Bat. Mode)
Transfer Time 10 - 20ms Typical, 40ms (max)
Waveform Simulated Sinewave
Battery :
Charger Current 10Amp / 20Amp (Selectable)
DC Voltage 24V
Overcharge Protect 60V
Indication :
LED Display
Fault Red Lighting
Battery Mode - Yellow
Low Battery Yellow flashing
Shutdown Mode Yellow flashing
Charging Mode - Green flashing
Overload - Red flashing
LCD Display
Input Voltage, Output Voltage, Load level, Battery level, Fault alarm
Alarm Sounding
Overload - Sounding every 0.5 second
Low Battery - Sounding every 2 secounds
Overcharging Fault Continuously sounding
Efficiency :
AC to AC >95%
DC to AC >80%
Physical :
Dimension (mm) D x W H :293 x 231.5 x 82.5
Net Weight (kgs) :2.55
Environment :
Humidity 0~95% Relative Humidity. 0~40C
Noise Level Less than 50dBA
Package Content :
Included:
1 x IPS1200 / IPS2400 LCD Inverter
1 x Battery Cable (Set)
1 x User Manual
Warranty 1 Years
