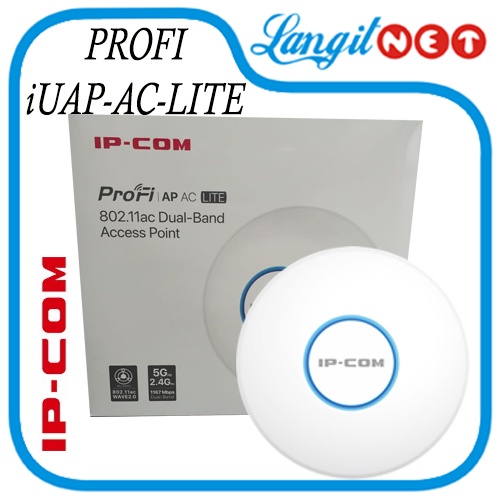

Detail IP-COM PROFI AP AC LITE iUAP-AC-LITE
Product Information
Model iUAP-AC-LITE
Appearance Ceiling
Dimensions 176*176*43.5mm
Hardware Specifications
Frequency band 2.4 GHz, 5 GHz
Wireless standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate 1 - 300 Mbps
5 GHz data rate 6 - 867 Mbps
Ethernet port 1*10/100/1000 Base-TX port
Button 1*Reset
LED indicator 1*Power
Max. power consumption Full-load 11.5W
Power supply standard IEEE 802.3af/at&24V0.5A Passive PoE
Antenna gain 2*4 dBi
2.4 GHz Max. output power 26+/- 1.5 dBm
5 GHz Max. output power 26 +/-1.5 dBm
802.11b RX sensitivity -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity -72 dBm
5 GHz 802.11a RX sensitivity -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity -74 dBm
Software Specification
Operating modes AP, Client + AP
Hide SSID Supported
Max. No. of SSID 2.4 GHz:8
5 GHz:4
Max. connected clients 2.4 GHz:128
5 GHz:256
WEP Supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA Supported
WPA2 Supported
Access control MAC address-based
Adjustable power transmit Supported
Frequency analysis Supported
AP isolation Supported
Connected clients control Supported
RSSI threshold Supported
Transmission Power Adjustable power by 1dBm
WMM Supported
VLAN tagging for SSID Supported
LED indicator control Supported
Diagnostics tool Ping, Traceroute
Scheduled reboot Supported
Reboot at specified interval Supported
Management Web UI
System logs Supported
Firmware upgrade Local and AC upgrade
Reboot Local and AC reboot
Reset Local and AC reset
Backup configuration Supported
Restore configuration Supported
Operating Environment
Default login IP address 192.168.0.254
Default user name admin
Default password admin
Operating temperature -10? - 45?
Operating humidity (10%-90%) RH, non-condensing
Storage temperature -30? - 70?
Storage humidity (10%-90%) RH, non-condensing
Package Contents
• 1 x ProFi AC LITE Access Point
• 1 x Ceiling / Wall Mount Kit
• 1 x Gigabit POE Adapter(24V,0.5A)
•1 × Quick Start Guide
