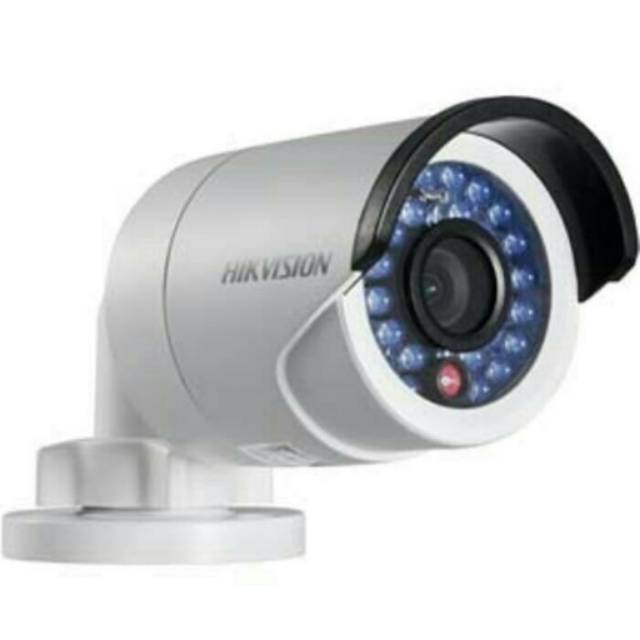

IP CAMERA CCTV HIKVISION 2MP POE DS-ECD2020-F1 1080P OUTDOOR

Detail IP CAMERA CCTV HIKVISION 2MP POE DS-ECD2020-F1 1080P OUTDOOR

2MP (1920 x 1080) high resolution
Up to 30m IR visibility
True day/night
3D DNR & DWDR & BLC
Vandal-proof housing
Support Micro SD up to 64 GB

Image Sensor: 1/4mm" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 4mm@ F2.0, Angle of view: 85
Lens Mount: M12
Adjustment Range: Pan:0 - 355, Tilt: 0 - 65
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/M-JPEG
Bit Rate: 32 Kbps~8Mbps
Dual Stream: Yes


Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps(1920 1080), 25fps (1280 960), 25fps (1280 720)
60Hz: 30fps(1920 1080), 30fps (1280 960), 30fps (1280 720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Support
Network
Network Storage: NAS
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: User authentication, watermark
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
General
Operating Conditions: -30 C ~ 60 C (-22 F ~ 140 F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC 10%, PoE (802.3af)
Power Consumption: Max. 5 W (Max. 7 W with IR cut filter on)
Impact Protection: IEC60068-2-75Eh, 50J; EN50102, up to IK10
Weather Proof: IP66
IR Range: Approx. 10 to 30 meters
Dimensions: 111 82 (4.4 3.2)
