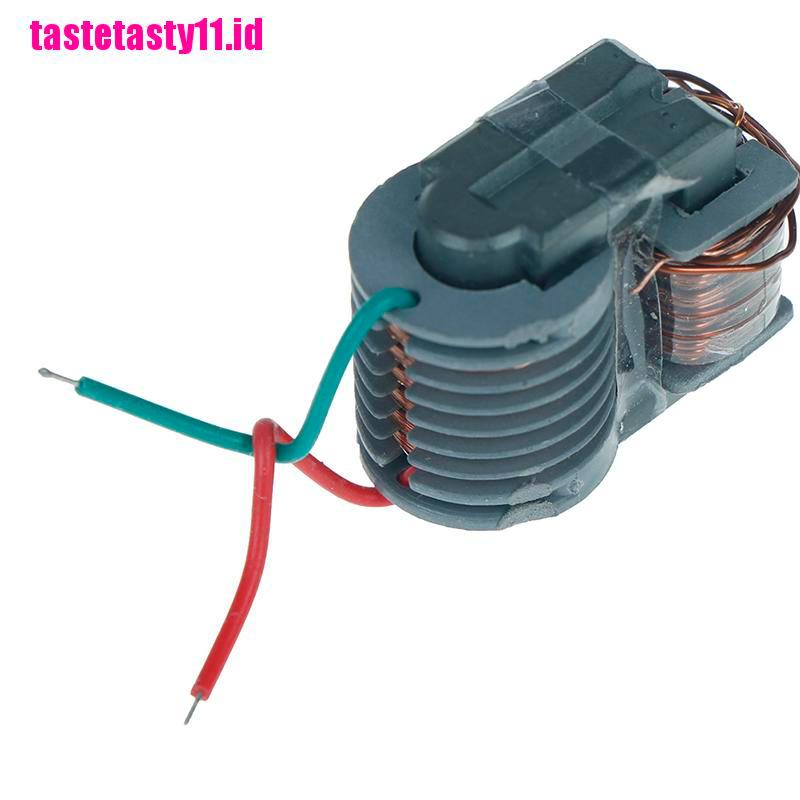

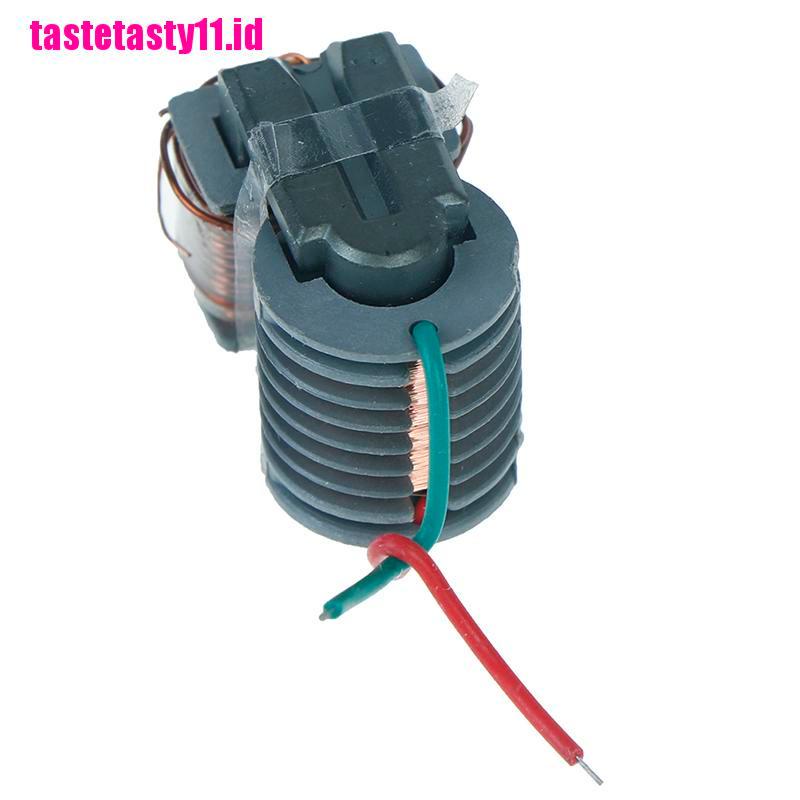

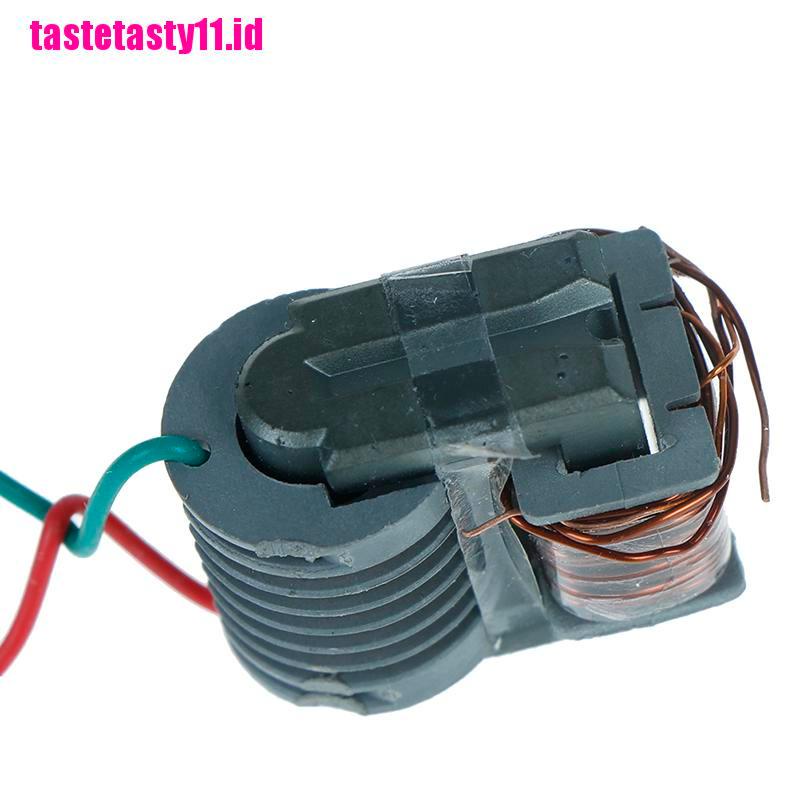

Detail Inverter Tegangan Tinggi 15kv generator arc coil arc step up

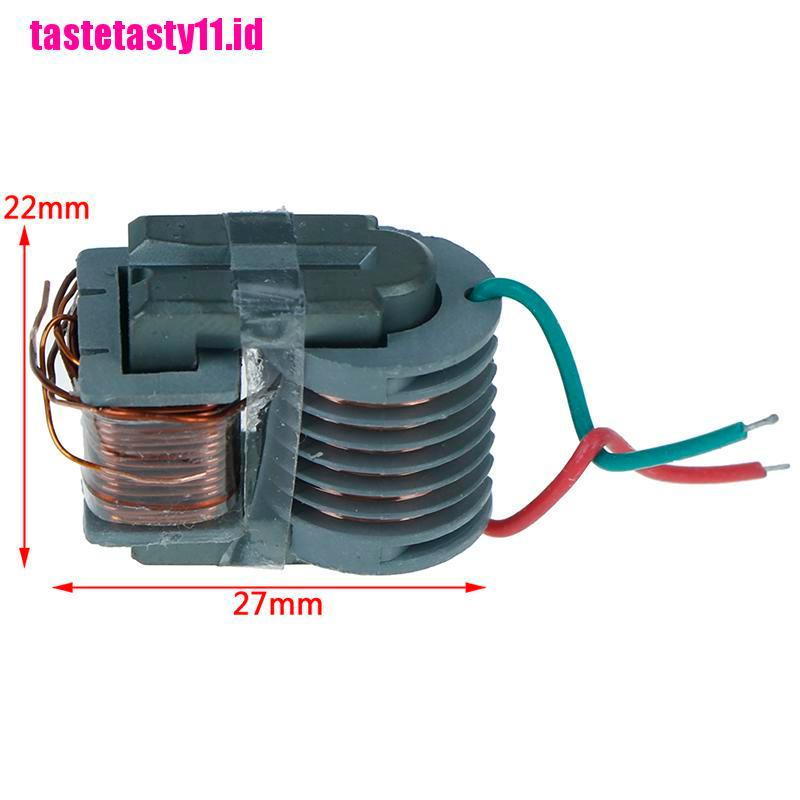

Description: 1.Size:27*22*18mm 2.Notice:this product adapts to 12V, but it needs adding base feedback resistor to 150 ohm-1.5K ohm; its resistance should be adjusted from high to low but cannot be too low,or it will burn triode or the product;it also cannot be too high,or it will influence output effect or make triode overheating in non-operation state (15kV is max output,and limit output shouldn't be over 15kV,that is 1.5cm arc,or it will destroy the product.If users want to use it for continuous operation,then it is recommended that you should use insulating wax or epoxy resin to sealing entirely) Package Included: 1 x Voltage Inverter
Gambar produk
