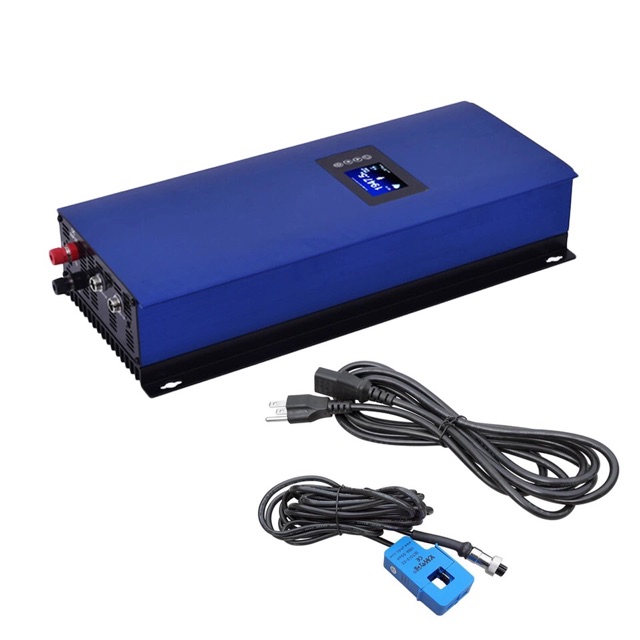

Inverter gird tie 2000W On Gird With Limiter MPPT Pure Sine Wave DC45-90V to AC230V 2nd generation

Detail Inverter gird tie 2000W On Gird With Limiter MPPT Pure Sine Wave DC45-90V to AC230V 2nd generation

New developed grid tie inverter(second generation) with different design structure,enable better and stable operation quality.With much better output pure sine waveform and better PF Value.
The inverter is integrated with internal limiter and external limiter function which can prevent excess power from going to the public grid.Select the internal limiter mode,inverter will work under limiter mode,output power of the inverter will be determined by load power.Select the external limiter mode,inverter need a external limiter module working with it.(if you are about to use multiple units of this inverter,then external limiter has to be used.For more details about the limiter function,pls contact supplier)
Specification:
Input Data
Input Voltage Range 45-90vdc  (test point is at the output of the inside rectifier)
Max input DC voltage 90V
Peak power tracking voltage 50-90V
Output Data
Max output power 2000W
Nominal Voltage 230V AC
Nominal Voltage Range 185-265v
Frequency Range 47.5-51.5 for 50hz,59.3-60.5 for 60hz
Power Factor >0.95
Output Waveform Pure sine wave
Characteristic Data
MPPT Efficiency 99%
Over current protection yes
Over temperature protection yes
Reverse polarity protection yes
Anti-island protection yes
Stackable Just for AC output
Operating temperature range -20 0C ~ +50 0C
Inverter inside temperature -20 0C ~ +85 0C
Current THD <5%
Voltage THD <5%
Standard UL1741,IEEE1547,VDE4105
Cooling Fans
Peak Inverter Efficiency >92%
Warranty 2 year
