Inverter Boost Step Up Tegangan Tinggi Dc 3v-6v Ke 400kv 40000v 15kv

Detail Inverter Boost Step Up Tegangan Tinggi Dc 3v-6v Ke 400kv 40000v 15kv

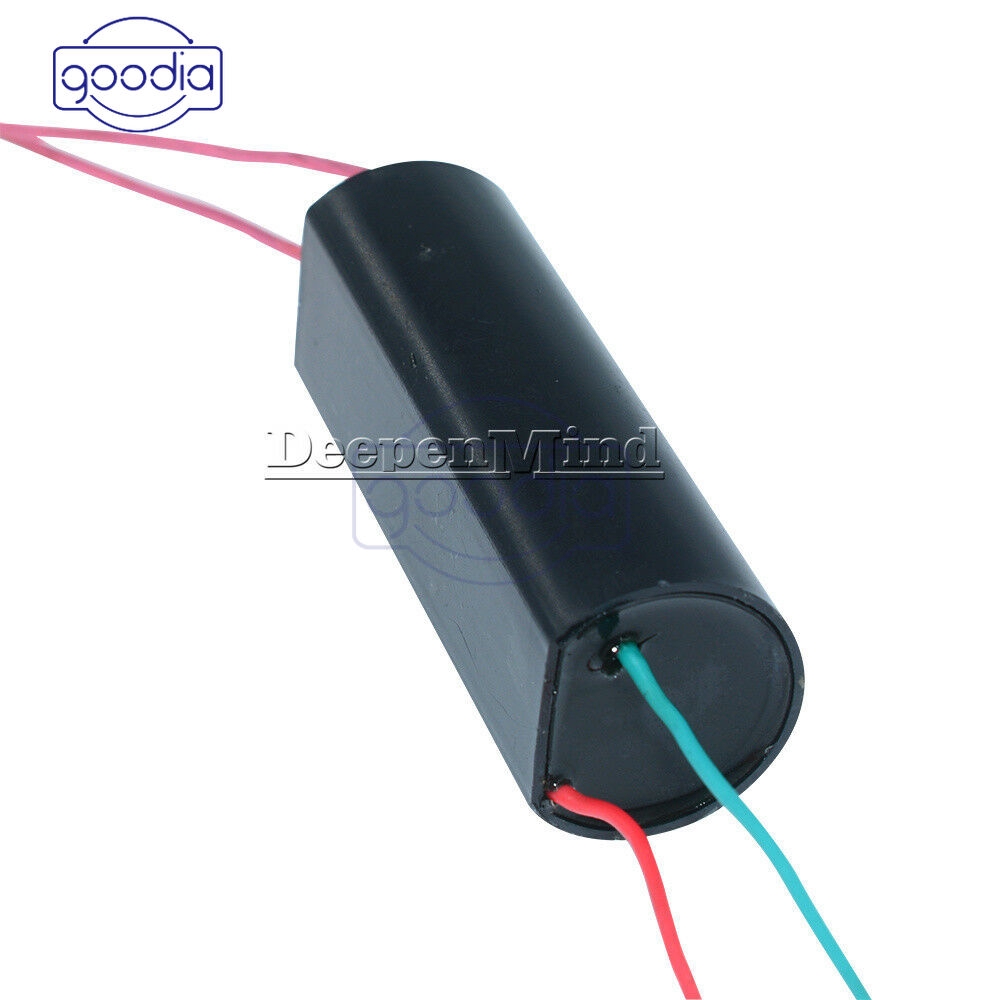

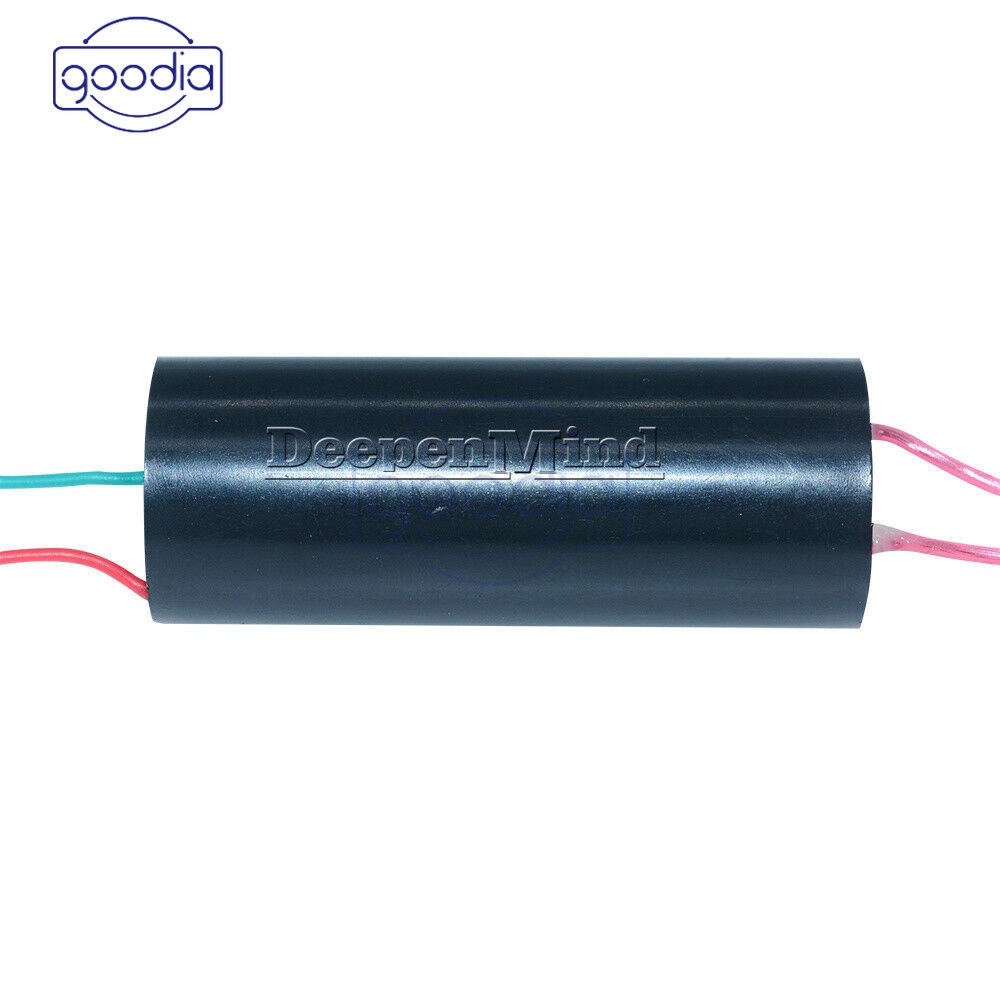

400KV High Voltage Generator
Description:
input voltage: DC 3 V to 6 V
Input current: 2 A - 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)

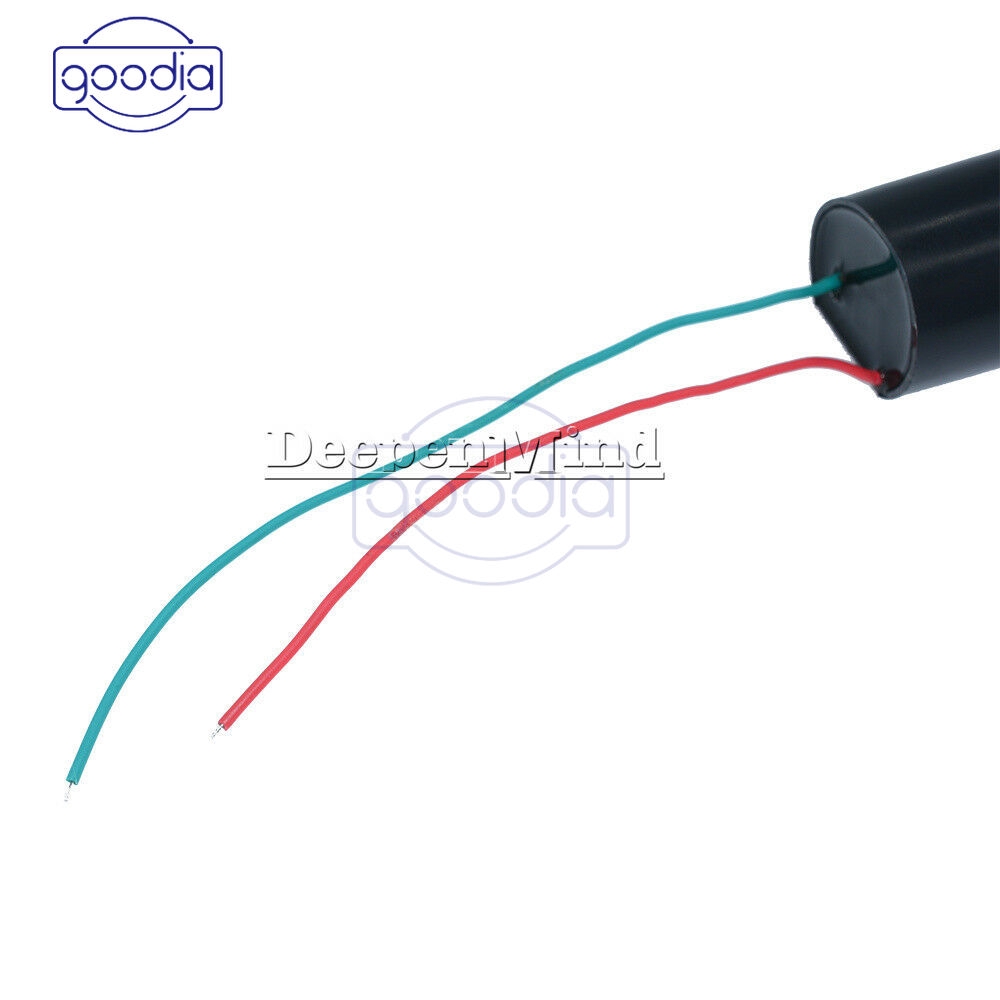

Wiring:
Red and green power connection red line:"+" green line "-"
output : the other side ,same color cable
please notice:
the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
Package included:
1 x High-voltage Generator DC 3V-6V to 400kV 400000V Boost Step-up Power Module

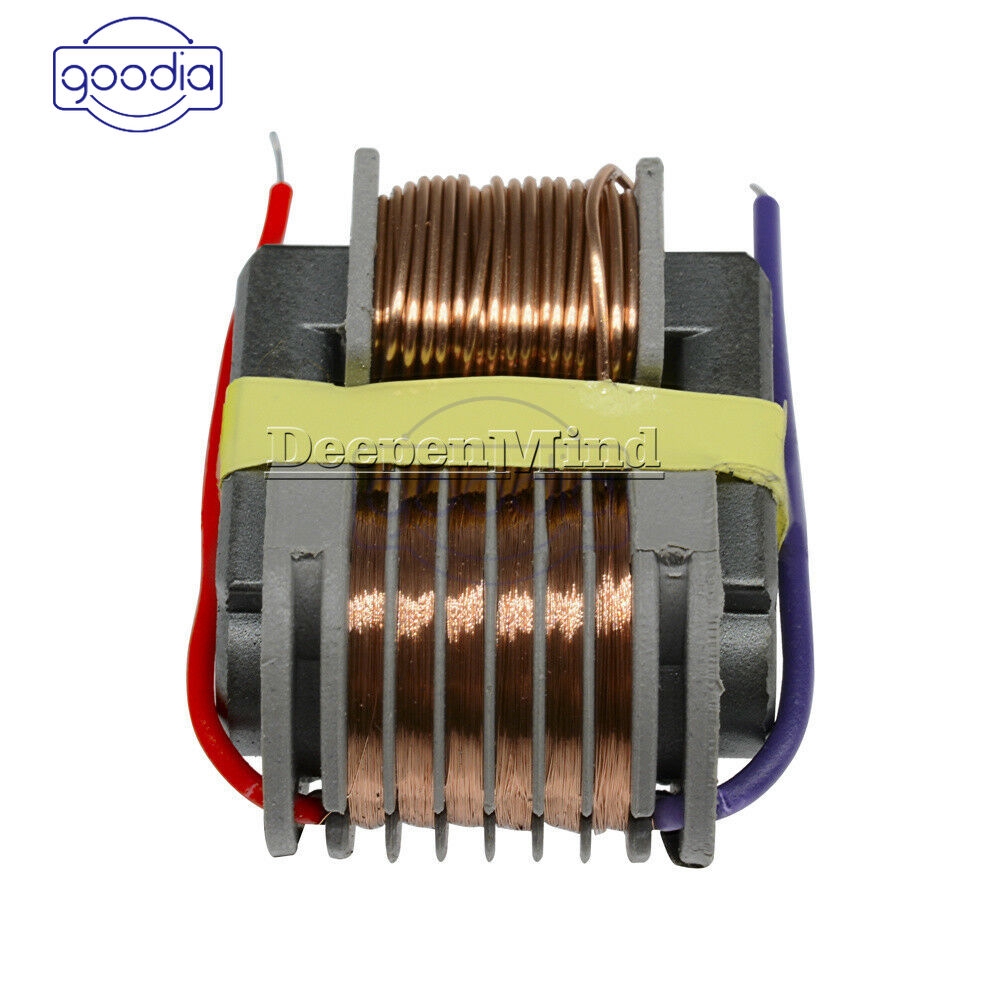

15KV High Voltage Inverter
Product Introduction:

1.Size:29*24*18mm
2.Notice:this product adapts to 12V,but it needs adding base feedback resistor to 150 ohm-1.5K ohm;its resistance should be adjusted from high to low but cannot be too low,or it will burn triode or the product;it also cannot be too high,or it will influence output effect or make triode overheating in non-operation state (15kV is max output,and limit output shouldn't be over 15kV,that is 1.5cm arc,or it will destroy the product.If users want to use it for continuous operation,then it is recommended that you should use insulating wax or epoxy resin to sealing entirely)

Package Included:
1 × 15KV High Frequency High Voltage Inverter Coil Arc Generator Boost Transformer

Gambar produk
