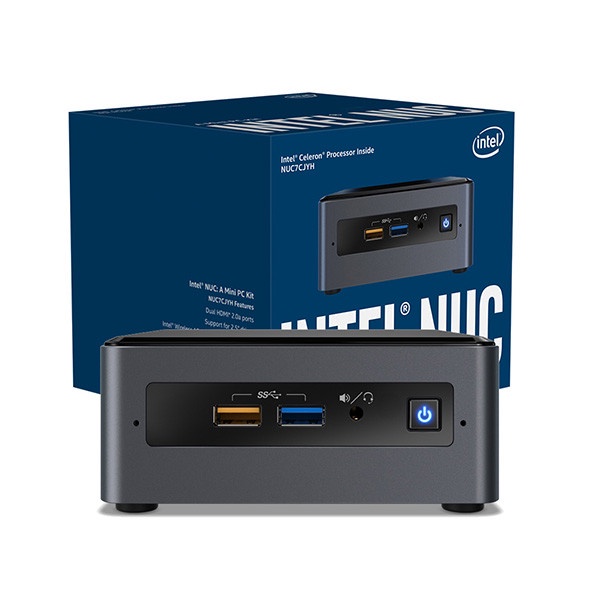

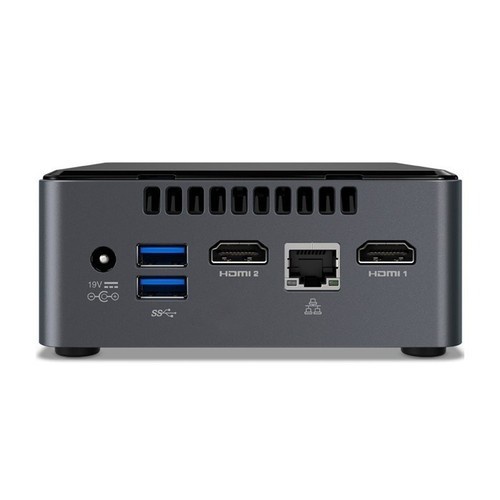

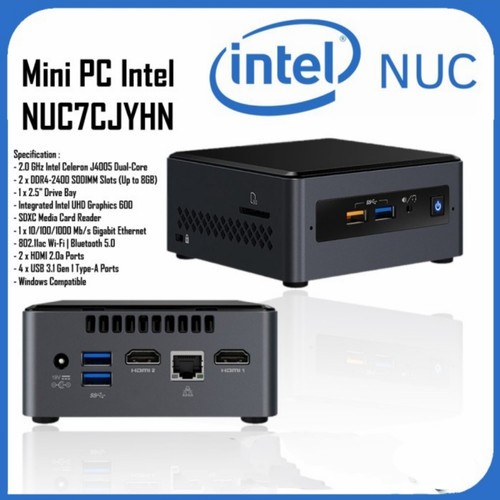

INTEL NUC NUC7CJYHN Intel Celeron J4005 I 8GB I SSD240GB

Detail INTEL NUC NUC7CJYHN Intel Celeron J4005 I 8GB I SSD240GB

Tersedia 2 Varian Memory :
1. DDR4 Sodim 4GB
2. DDR4 Sodim 8GB

Tersedia 2 Varian SSD :
1. SSD 120 GB Sata
2. SSD 240 GB Sata

BOXNUC7CJYHN- Intel® Celeron® J4005

• Intel® Celeron® J4005 Processor (4M Cache, up to 2.70 GHz)
• 1 x 2.5" Drive
• 2x DDR4-2400 1.2V SO-DIMM (Max 8GB)
• Intel® UHD Graphics 600
• 2x HDMI 2.0a
• 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
• 7.1 digital
• LAN: Realtek 8111H-CG
• Intel® Wireless-AC 9462
• Bluetooth 5.0
• 3 Y Warranty

Product Collection
Intel® NUC Kit with Intel® Celeron® Processors

Code Name
Products formerly JUNE CANYON
Supported Operating Systems
Windows 11, Windows 10

Board Number
NUC7JYBN

Board Form Factor
UCFF (4" x 4")

Socket
Soldered-down BGA

Internal Drive Form Factor
2.5" Drive

of Internal Drives Supported
1

Lithography
14 nm

TDP
10 W

DC Input Voltage Supported
12-19 VDC

Processor Included
Intel® Celeron® J4005 Processor (4M Cache, up to 2.70 GHz)

Description
Other features: Includes SDXC card slot, No audio codec or microphones

Memory & Storage
Max Memory Size (dependent on memory type)
8 GB

Memory Types
DDR4-2400 1.2V SO-DIMM

Max of Memory Channels
2

Max Memory Bandwidth
38.4 GB/s

Graphics Output
2x HDMI 2.0a

USB Ports
6

USB Configuration
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

Integrated LAN
Realtek 8111H-CG

Integrated Wireless‡
Intel® Wireless-AC 9462 + Bluetooth 5.0

Chassis Dimensions
115 x 111 x 51mm
