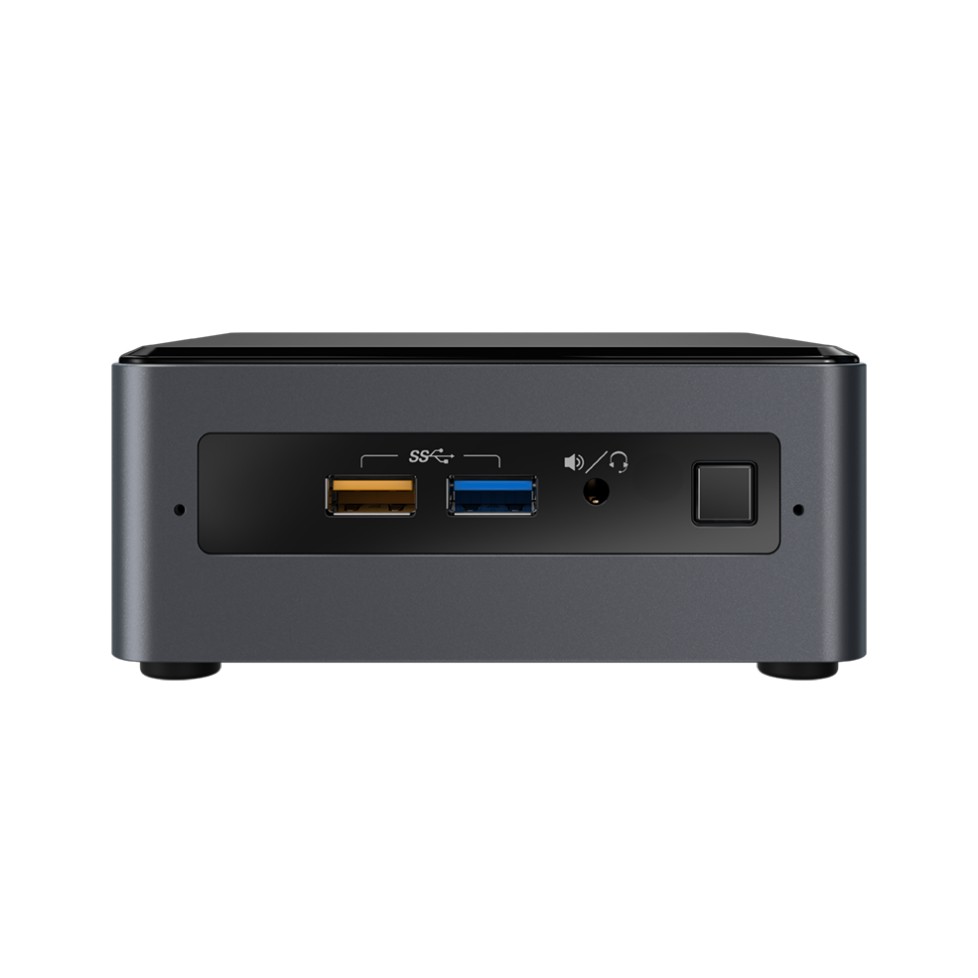

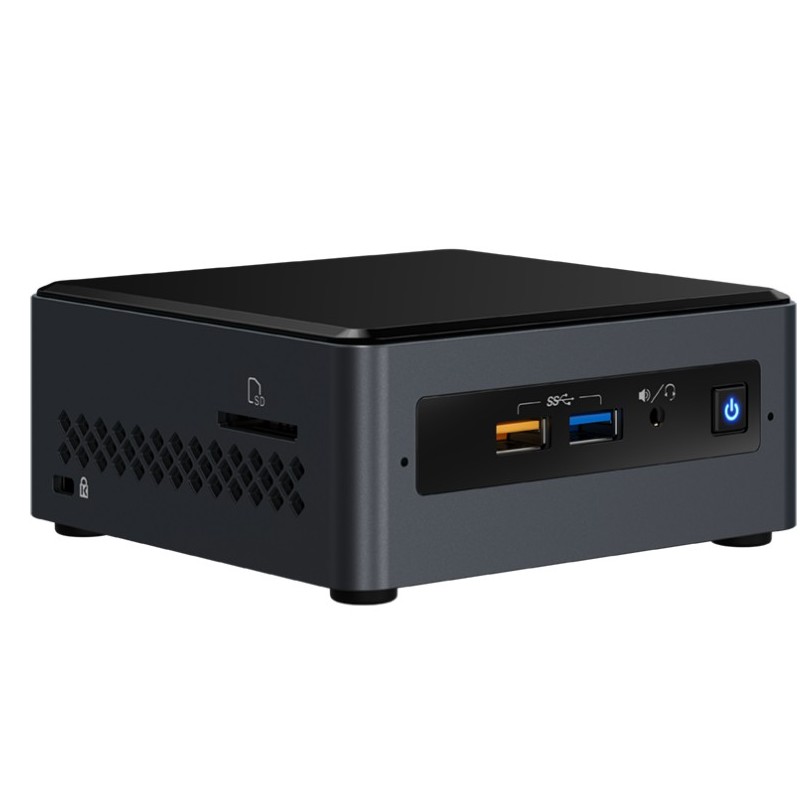

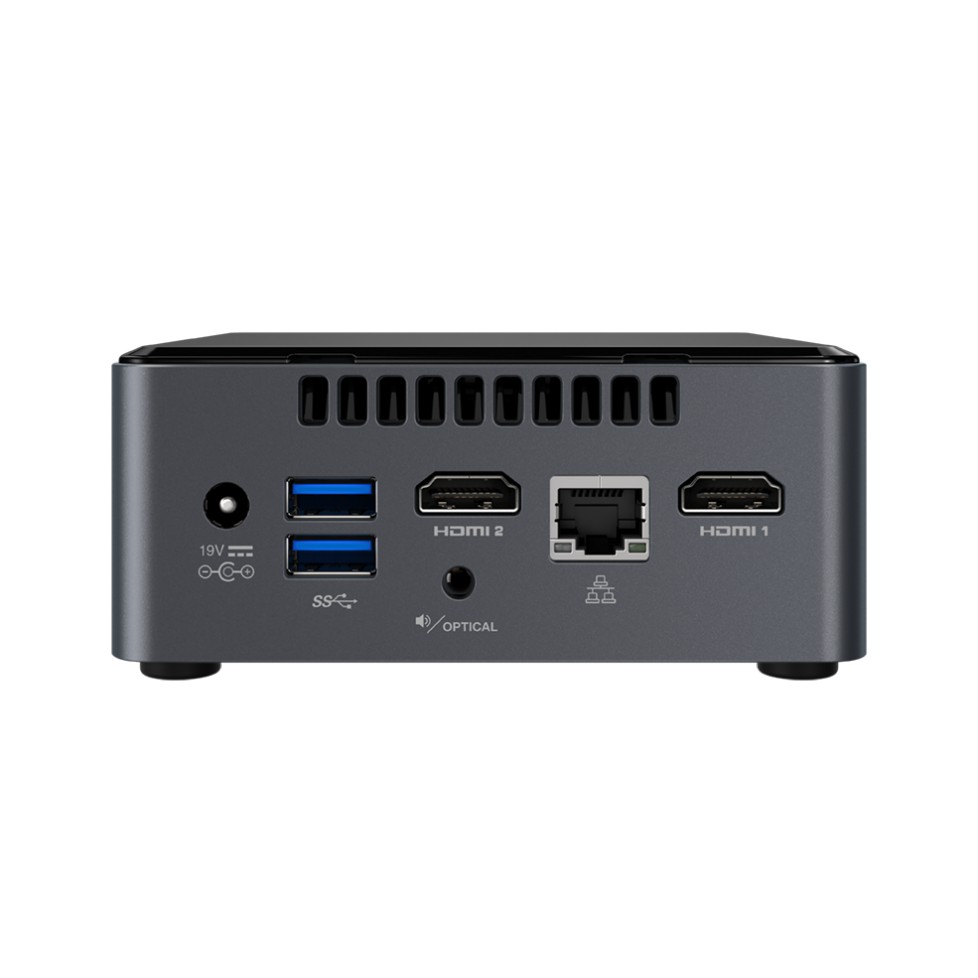

Intel NUC Kit NUC7CJYH / 7CJYH Mini PC

Detail Intel NUC Kit NUC7CJYH / 7CJYH Mini PC

"Tidak Termasuk Kabel Power"
SPECIFICATION :
Essentials
Status
Launched
Launch Date
Q1'18
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
2.5" Drive
# of Internal Drives Supported
1
Lithography
14 nm
TDP
10 W
DC Input Voltage Supported
12-19 VDC
Warranty Period
3 yrs
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)
8 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max # of DIMMs
2
ECC Memory Supported ‡
No
Graphics Specifications
Integrated Graphics ‡
Yes
Graphics Output
2x HDMI 2.0a
# of Displays Supported ‡
2
Expansion Options
Removable Memory Card Slot
SDXC with UHS-I support
I/O Specifications
# of USB Ports
6
USB Configuration
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision
2.0, 3.0
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total # of SATA Ports
1
Max # of SATA 6.0 Gb/s Ports
1
RAID Configuration
N/A
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN
Realtek 8111H-CG
Integrated Wireless‡
Intel® Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® vPro™ Platform Eligibility ‡ Learn more about Intel vPro®" data-html="true" data-trigger="focus" data-wap_ref="VProTechnology" data-original-title="" title="" tabindex="0">
No
TPM
No
Intel® HD Audio Technology
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
