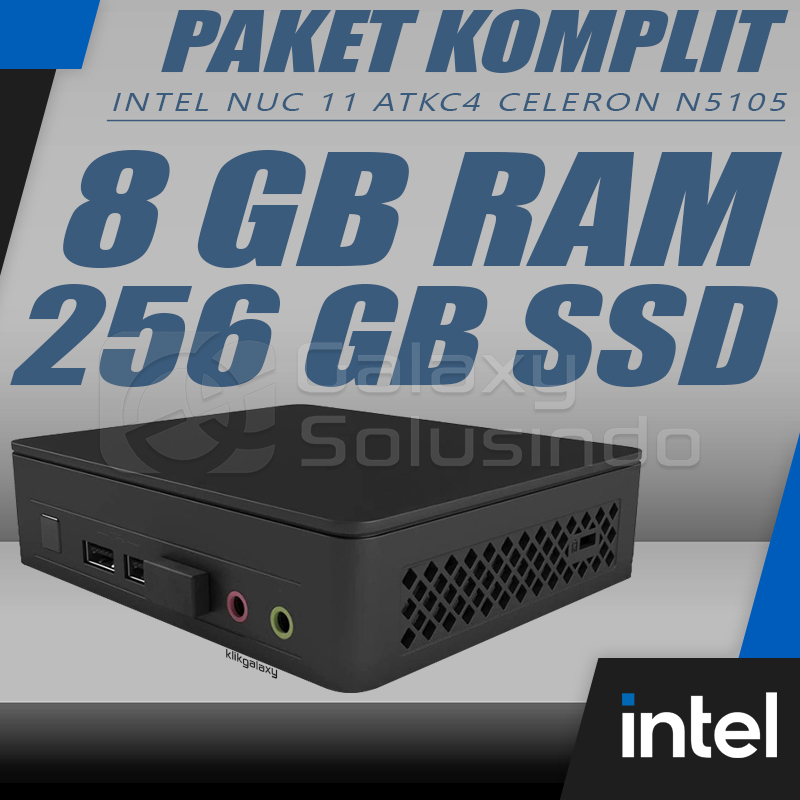

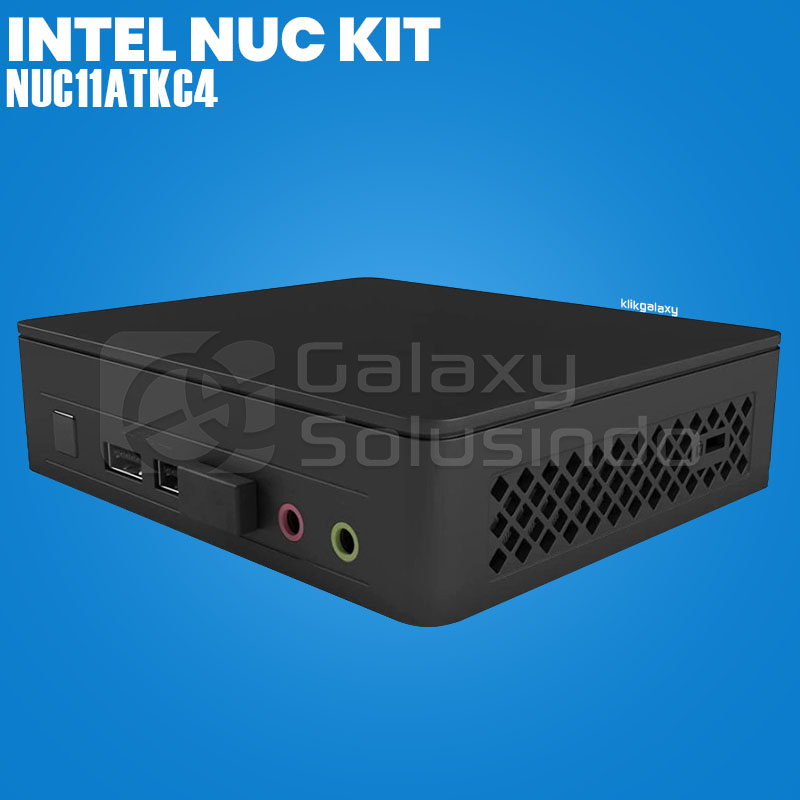

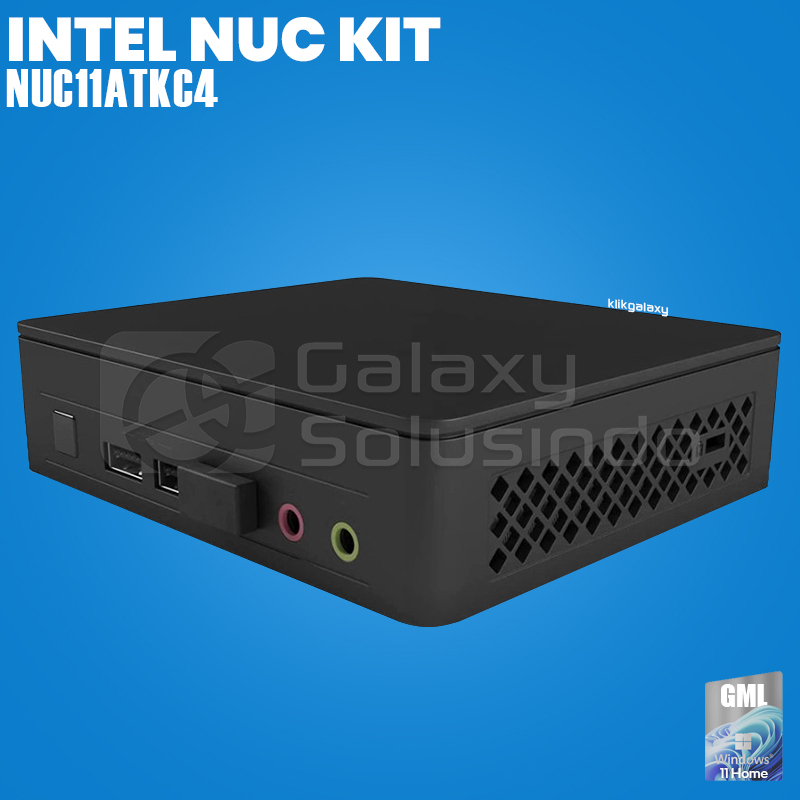

Intel NUC Kit 11ATKC4 Celeron N5105 8GB RAM 256GB SSD - Mini PC Windows 11 Home GML

Detail Intel NUC Kit 11ATKC4 Celeron N5105 8GB RAM 256GB SSD - Mini PC Windows 11 Home GML

Paket Memory 8GB + SSD 256GB

SPECIFICATION :
Essentials
Product Collection
Intel® NUC Kit with Intel® Celeron® Processors
Code Name
Products formerly Atlas Canyon
Processor Included
Intel® Celeron® Processor N5105 (4M Cache, up to 2.90 GHz)
Board Number
NUC11ATBC4
Supported Operating Systems
Windows 11*, Windows 10*, Linux*
Supplemental Information
Marketing Status
Launched
Launch Date
Q1'22
Warranty Period
3 yrs
Embedded Options Available
No
CPU Specifications
Total Cores
4
Total Threads
4
Processor Base Frequency
2.00 GHz
Memory & Storage
Included Storage
Optional 64GB eMMC
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR4-2933 1.2V SO-DIMM
Max # of Memory Channels
2
# of Memory Slots
2
ECC Memory Supported ‡
No
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported
1
M.2 Card Slot (storage)
1
I/O Specifications
Graphics Output
DP++/HDMI
# of Displays Supported ‡
2

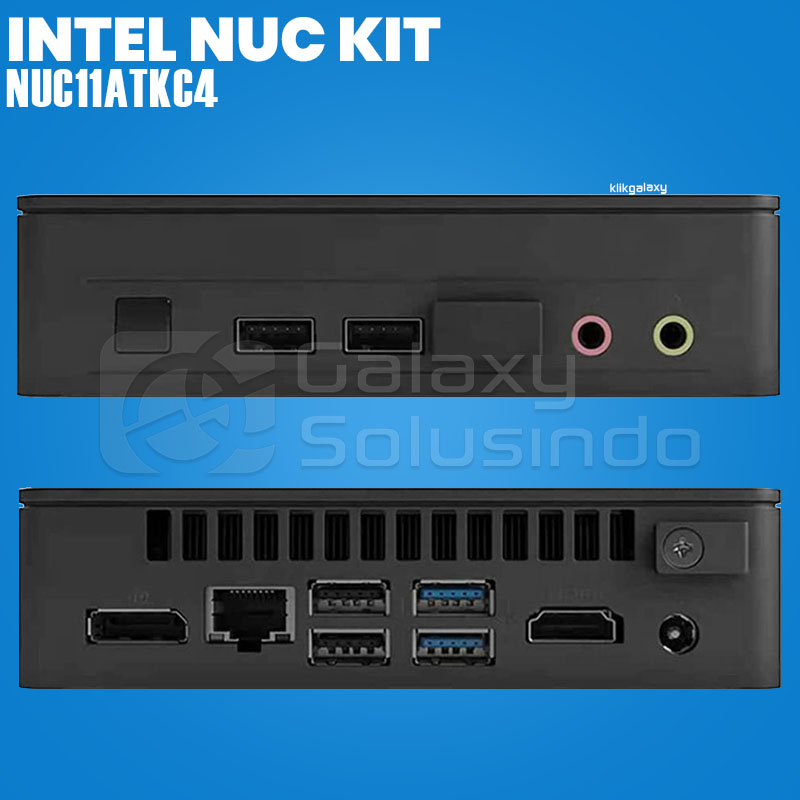

# of USB Ports
6
USB Configuration
2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0
USB Revision
3.2 Gen 2 / 3.2 Gen 1 / 2.0
Audio (back channel + front channel)
1x 3.5mm stereo out jack, 1x 3.5mm microphone jack
Integrated LAN
10/100/1000
Integrated Wireless‡
Intel® Wireless-AC 9462 + Bluetooth 5.1
Integrated Bluetooth
Yes
M.2 Card Slot (wireless)
1
Expansion Options
PCI Express Revision
Gen 3
Package Specifications
TDP
15 W
DC Input Voltage Supported
19VDC
Chassis Dimensions
135x115x36mm
Advanced Technologies
Intel® HD Audio Technology
Yes
Security & Reliability
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel® AES New Instructions
Yes
