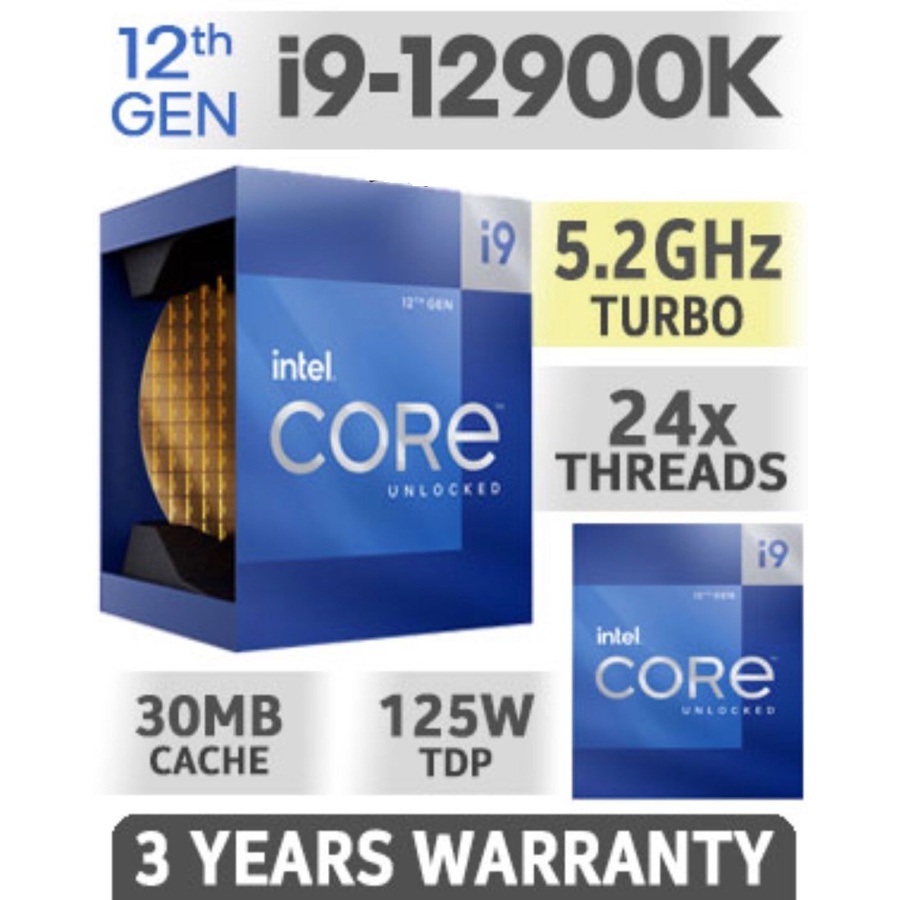

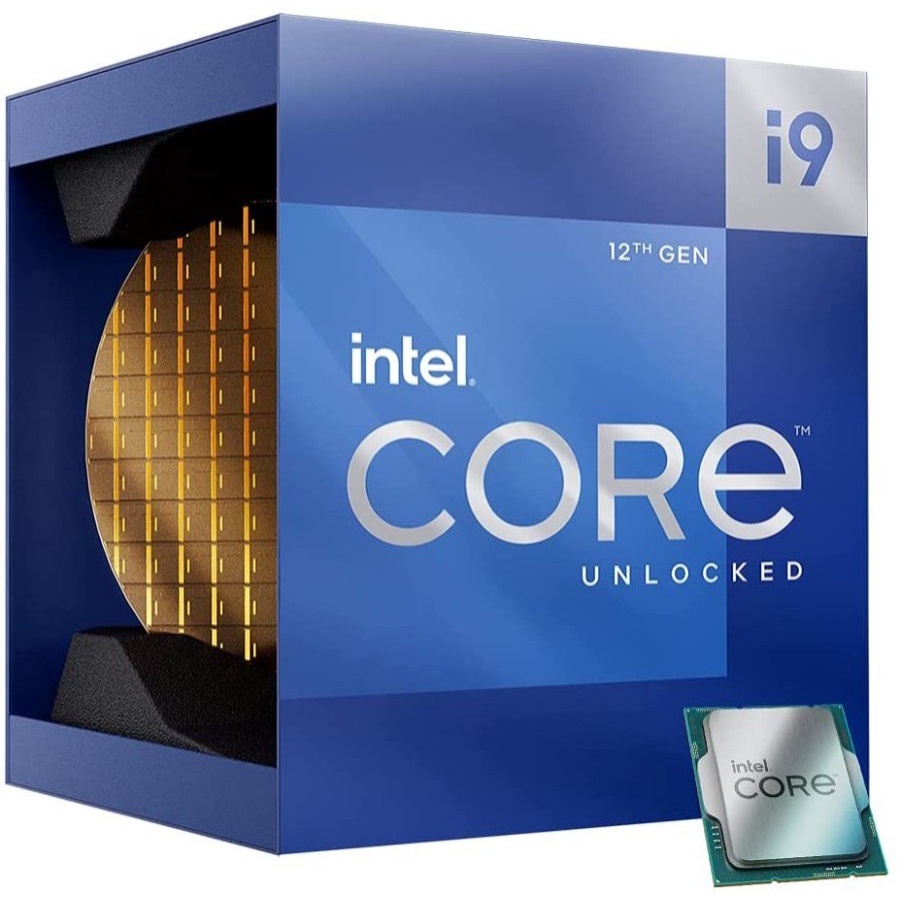

Intel Core i9 12900K 16 Core 24 Threads Alder Lake - LGA1700

Detail Intel Core i9 12900K 16 Core 24 Threads Alder Lake - LGA1700

CPU Specifications
Total Cores 16
# of Performance-cores8
# of Efficient-cores8
Total Threads 24
Max Turbo Frequency 5.20 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.20 GHz
Performance-core Max Turbo Frequency 5.10 GHz
Efficient-core Max Turbo Frequency 3.90 GHz
Performance-core Base Frequency3.20 GHz
Efficient-core Base Frequency2.40 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache14 MB
Processor Base Power 125 W
Maximum Turbo Power 241 W
Supplemental Information
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s

Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡4
Device ID0x4680
OpenCL* Support 2.1

Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
