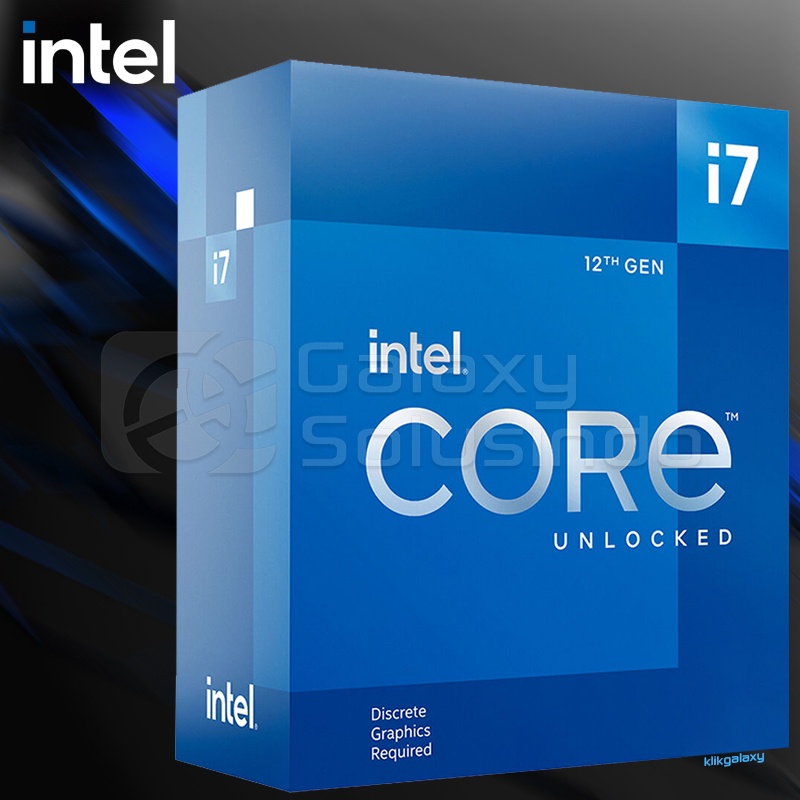

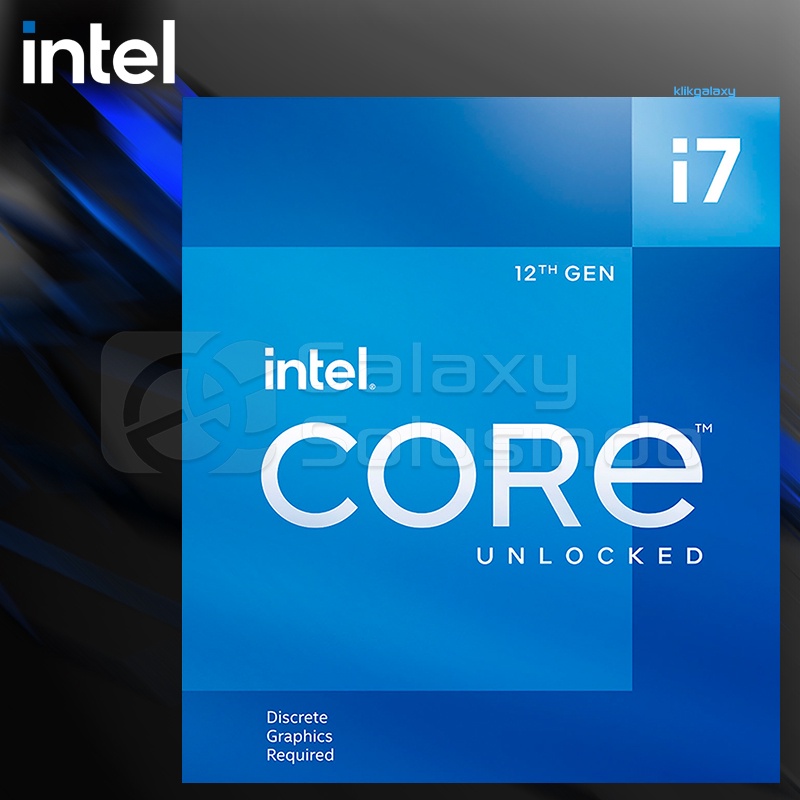

Intel Core i7-12700KF LGA1700 12 Core 20 Thread 12th Gen Alder Lake Processor

Detail Intel Core i7-12700KF LGA1700 12 Core 20 Thread 12th Gen Alder Lake Processor

Specification :
Essentials

Product Collection 12th Generation Intel® Core™ i7 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i7-12700KF
Status Launched
Launch Date Q4'21
Lithography Intel 7
Use Conditions PC/Client/Tablet

CPU Specifications

Total Cores 12
# of Performance-cores 8
# of Efficient-cores 4
Total Threads 20
Max Turbo Frequency 5.00 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.00 GHz
Performance-core Max Turbo Frequency 4.90 GHz
Efficient-core Max Turbo Frequency 3.80 GHz
Performance-core Base Frequency 3.60 GHz
Efficient-core Base Frequency 2.70 GHz
Cache 25 MB Intel® Smart Cache
Total L2 Cache 12 MB
Processor Base Power 125 W
Maximum Turbo Power 190 W

Supplemental Information

Embedded Options Available No

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s

Expansion Options

Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20

Package Specifications

Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported ‡ Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes

Security & Reliability

Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBE) Yes
Intel® Control-Flow Enforcement Technology Yes
