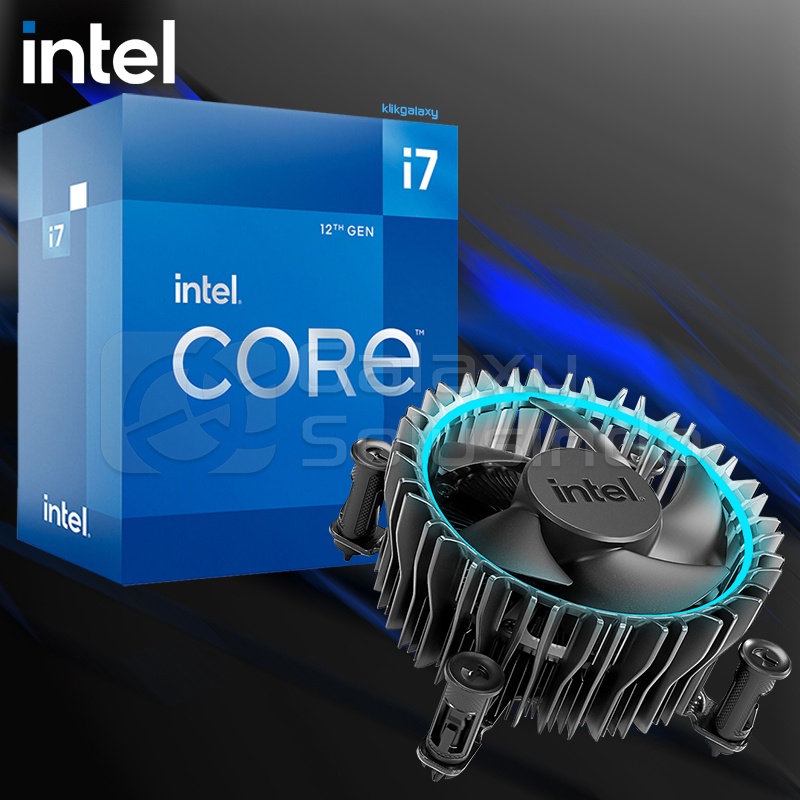

Intel Core i7-12700 12 Core 20 Thread LGA1700 Alder Lake Processor

Detail Intel Core i7-12700 12 Core 20 Thread LGA1700 Alder Lake Processor

Specification :
Essentials

Product Collection 12th Generation Intel® Core™ i7 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i7-12700
Status Launched
Launch Date Q1'22
Lithography Intel 7
Use Conditions PC/Client/Tablet

CPU Specifications

Total Cores 12
# of Performance-cores 8
# of Efficient-cores 4
Total Threads 20
Max Turbo Frequency 4.90 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 4.90 GHz
Performance-core Max Turbo Frequency 4.80 GHz
Efficient-core Max Turbo Frequency 3.60 GHz
Performance-core Base Frequency 2.10 GHz
Efficient-core Base Frequency 1.60 GHz
Cache 25 MB Intel® Smart Cache
Total L2 Cache 12 MB
Processor Base Power 65 W
Maximum Turbo Power 180 W

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
ECC Memory Supported ‡ Yes

Processor Graphics

Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.50 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4680
OpenCL* Support 2.1
