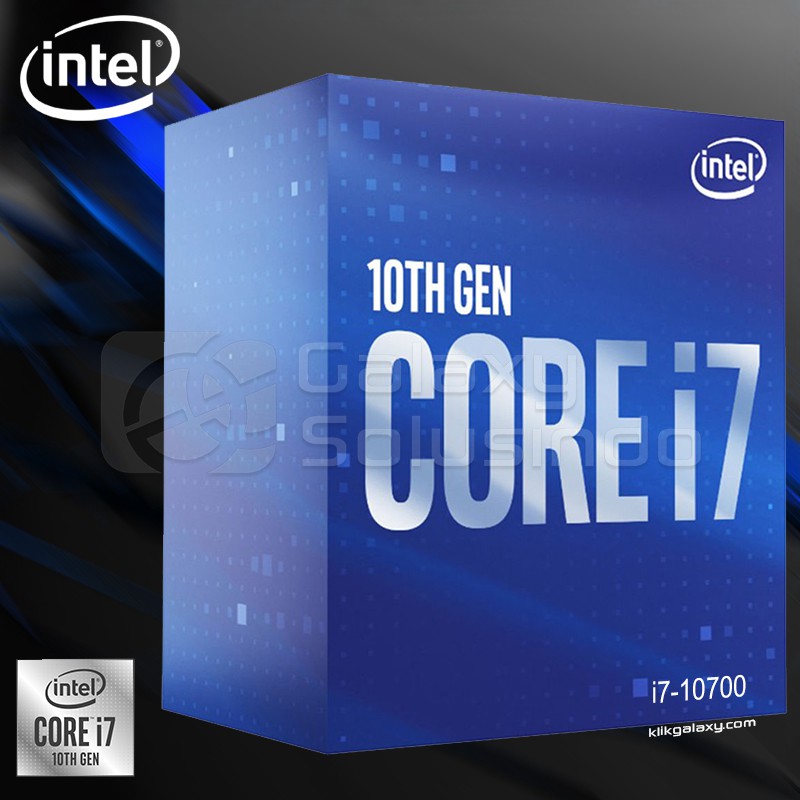

Intel Core i7-10700 Comet Lake Processor

Detail Intel Core i7-10700 Comet Lake Processor

Essentials

Product Collection 10th Generation Intel® Core™ i7 Processors
Code Name Products formerly Comet Lake
Vertical Segment Desktop
Processor Number i7-10700
Status Launched
Launch Date Q2'20
Lithography 14 nm
Use Conditions PC/Client/Tablet
Recommended Customer Price$323.00 - $335.00

Performance Specifications

# of Cores 8
# of Threads 16
Processor Base Frequency 2.90 GHz
Max Turbo Frequency 4.80 GHz
Cache 16 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 4.80 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.70 GHz
TDP 65 W

Supplemental Information

Embedded Options Available No

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2933
Max # of Memory Channels 2
Max Memory Bandwidth 45.8 GB/s
ECC Memory Supported ‡ No

Processor Graphics

Processor Graphics ‡ Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2160@30Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x9BC5

Expansion Options

Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡ Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) Yes
