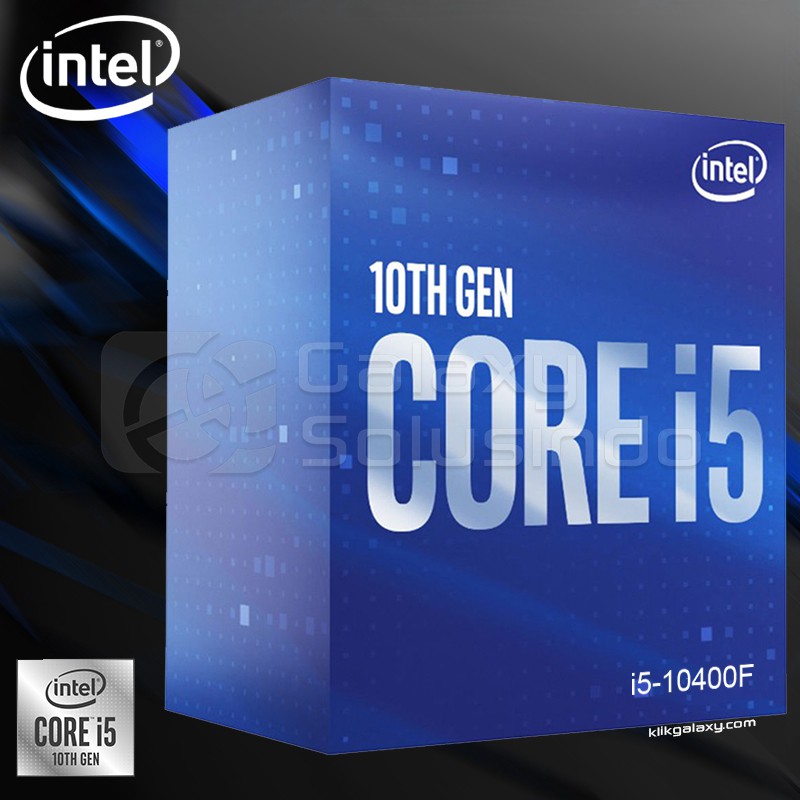

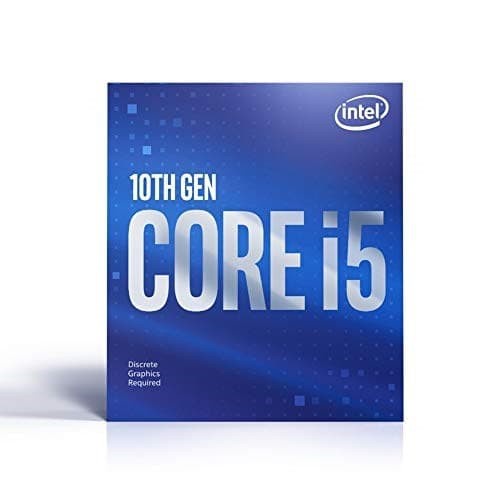

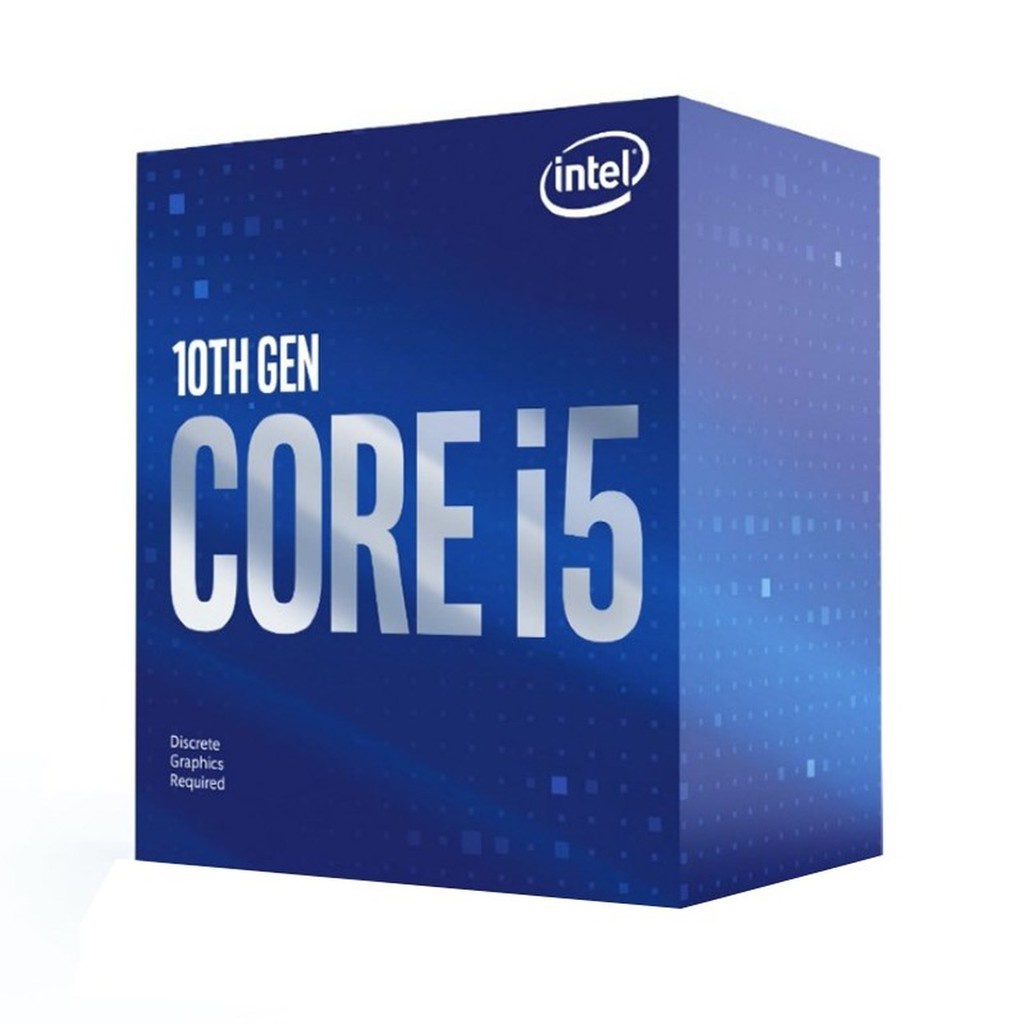

Intel Core i5-10400F Comet Lake Processor

Detail Intel Core i5-10400F Comet Lake Processor

Performance Specifications

# of Cores 6
# of Threads 12
Processor Base Frequency 2.90 GHz
Max Turbo Frequency 4.30 GHz
Cache 12 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.30 GHz
TDP 65 W

Supplemental Information

Embedded Options Available No
Datasheet View now

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‡ No

Expansion Options

Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡ Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2.0
Intel vPro® Platform Eligibility ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No

Security & Reliability

Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
