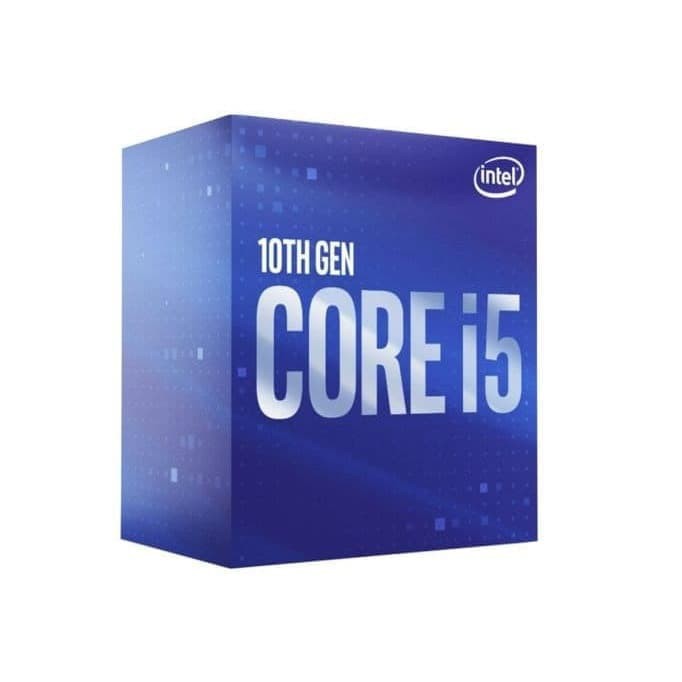

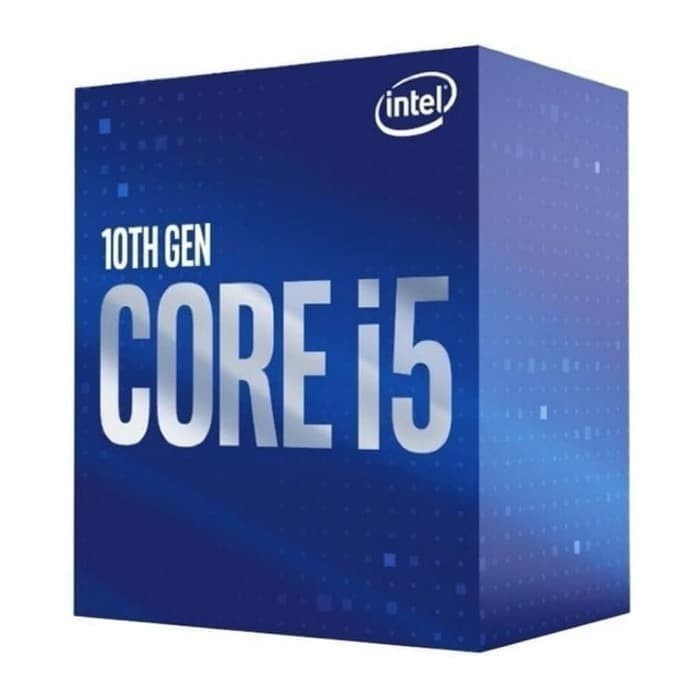

Intel Core i5-10400 Comet Lake Processor

Detail Intel Core i5-10400 Comet Lake Processor

Essentials

Product Collection 10th Generation Intel® Core™ i5 Processors
Code Name Products formerly Comet Lake
Vertical Segment Desktop
Processor Number i5-10400
Status Launched
Launch Date Q2'20
Lithography 14 nm
Use Conditions PC/Client/Tablet
Recommended Customer Price$182.00

Performance Specifications

# of Cores 6
# of Threads 12
Processor Base Frequency 2.90 GHz
Max Turbo Frequency 4.30 GHz
Cache 12 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.30 GHz
TDP 65 W

Supplemental Information

Embedded Options Available No

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‡ No

Processor Graphics

Processor Graphics ‡ Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2160@30Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x9BC8 / 0x9BC5

Expansion Options

Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
