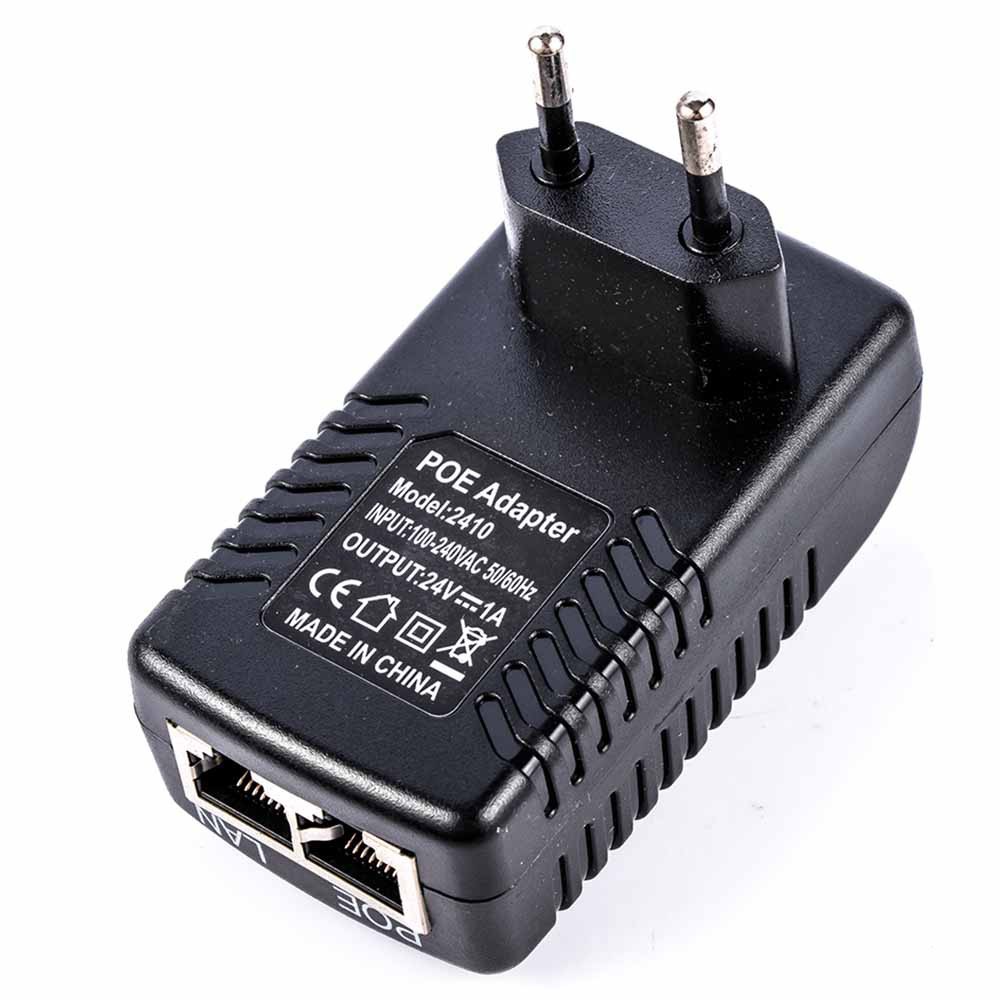

Inotrix NPE241 24V 1A POE Injector Power Ethernet Adapter

Detail Inotrix NPE241 24V 1A POE Injector Power Ethernet Adapter

Efficiency:Min 80%
Quantity:1Pc
Voltage Input: AC 100-240 V 50/60Hz
Length:8.5cm
Rise Time:40ms Max
Width:4.7cm
Ripple / Noise 200mV p-p
Netork Type: 10BASE-T, 100BASE-T
Turn-On Delay: 2s Max
Line / Load Regulation:3% /5%
Voltage Output: DC24V 1A
Output: 24V DC 1A-Please do not order if your unit requires more than 1A

POE (Power Over Ethernet) refers to the existing Ethernet cabling infrastructure Cat. It do not make any alteration of the circumstances, for a number of IP-based terminals (such as IP telephones, wireless LAN access point AP , network cameras, etc.) to transmit data signals at the same time, but also for the provision of DC power supply such equipment technology. POE technology to ensure the safety of the existing structured cabling at the same time to ensure the normal operation of the existing network, minimizing costs.

POE is also known as the power supply system based on local area network (POL, Power over LAN) or Active Ethernet.

This Adapter only support 10/100M connection, do not support gigabit ethernet connection, because Data & Power Out port using 4,5,7,8 pin as power transfer, Please do not connect any gigabit ethernet device on "Out" port, this will damage your device.

It supplies power NO MATTER WHAT, so don't plug the "Data and Power Out" side into anything that isn't ready for it.

Compatible 24V POE device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....


Protections Auto Recover Over-Voltage, Short Circuit, Over-Current
Safety and EMC Standards UL 60950, CE
Environmental Standards RoHs
Operating Temperature -10 to +40°C (14 to +104°F)
Operating Humidity (RH) 5% - 90%
Storage Temperature -20 to +85°C (-4 to +185°F)
Network Connector Type RJ45 Shielded
POE Type Passive POE ( Pins 4,5 V+, Pins 7,8 V-)

Compatible 24V Ubiquiti PoE:
UniFi AP/UAP
UAP-LR
UAP-AC-LR
UAP-AC-LITE
NanoStation M2 / NSM2
NanoStation M3 / NSM3
NanoStation M365 / NSM365
NanoStation M5 / NSM5
NanoStation Loco M2
NanoStation Loco M5
NanoStation Loco M9
Ubiquiti Rocket M5,M2,M9,M900
Ubiquiti Rocket M3/M365
Ubiquiti Rocket M2
Ubiquiti Rocket M9/M900
NanoBridge NBM9, NB-2G18, NBM3, NBM365
PowerBeam M5 PBE-M5-300-ISO
airGridM AG-HP-2G16, AG-HP-2G20, AG-HP-5G23, AG-HP-5G27
LiteBeamM LBE-M5-23, LBE-5AC-23, LBE-5AC-16-120
NanoBeamM NBE-M2-13, NBE-M5-16, NBE-M5-19
PowerBeam PBE-M5-300, PBE-M2-400
airMAX YAGI Antenna AMY-9M16
LiteBeam LBE-M5-23
