Detail Inotrix FC SOC Fast Connector Fiber Optic FTTH

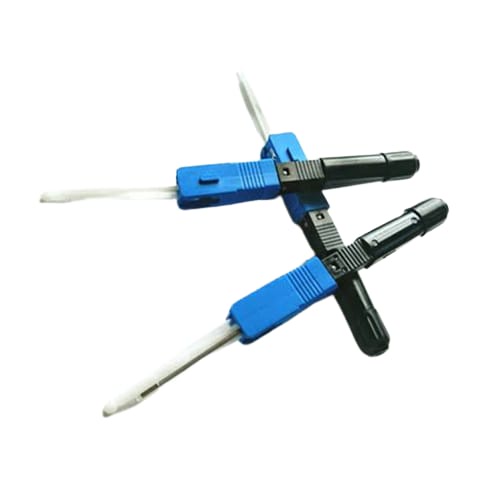

1Pc 60mm*9mm SC-UPC Optical Fiber Quick Fast Connector for FTTH
Quick assembly SC connector can provide quick and easy termination of fibers in the field.
Description: Product Name: Optical Fiber Quick Connector; Product Type: SC Product Loss: ?0.3dB Product Size: 60mm*9mm Product Overview: An Optical fiber quich connector is used to connect two tail fibers. The main component inside is a precise V type slot which can connect the ends of two tail fibers directly. Users do not have to weld with a fuse mechine.
Features: 1. Low insertion loss; 2. Good repeatbility; 3. Good Maintainance; 4. Easy to install.
Parameters: Product Loss: 0.3dB(MAX0.5) Return Loss: 50dB Product Type: SC/PC Variation with Temperature: 0.5dB (-40~75) Working Temperature: -40~75 degree centigrade
