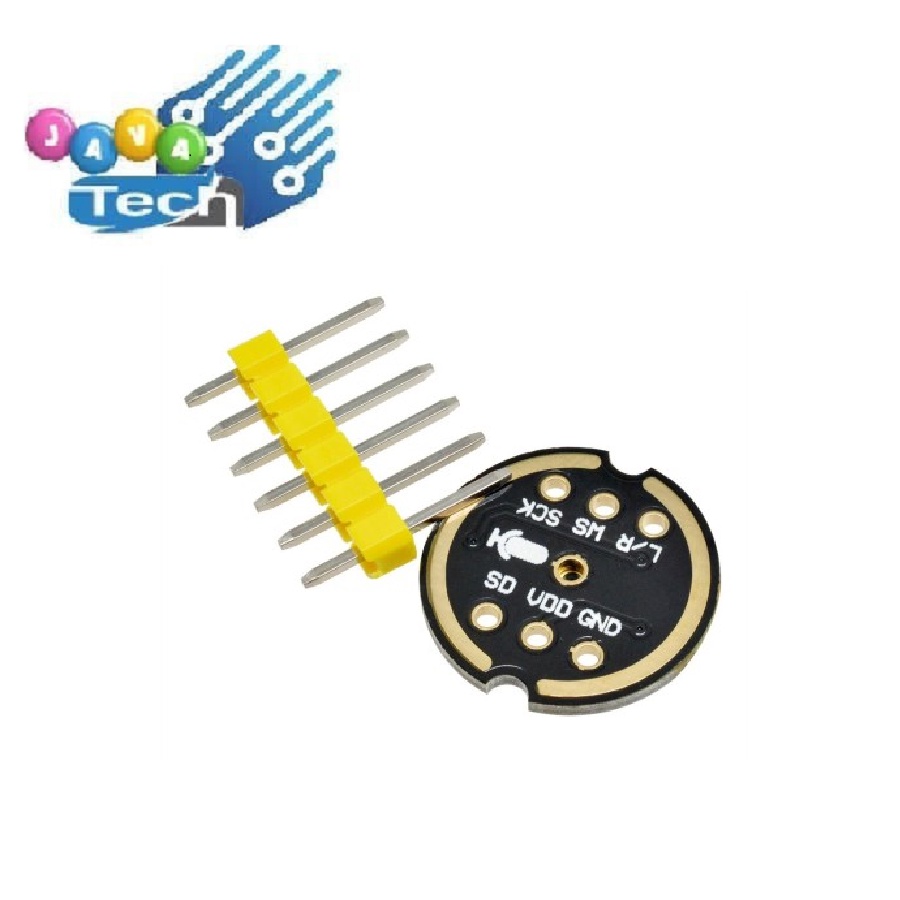

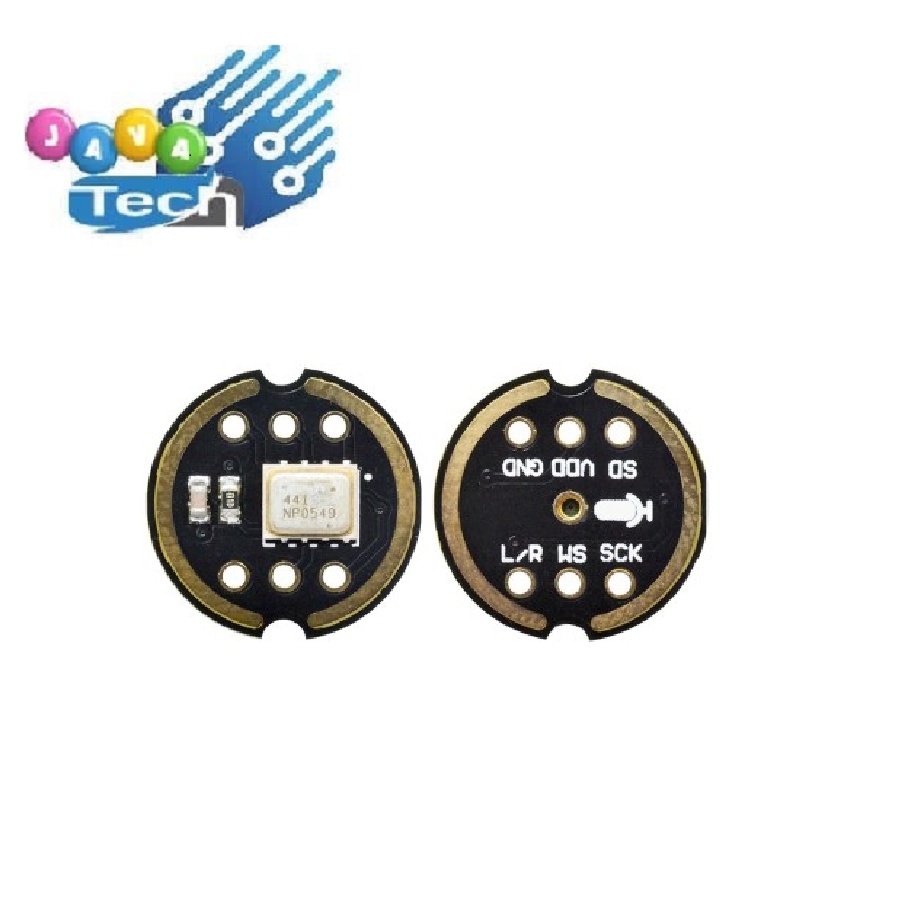

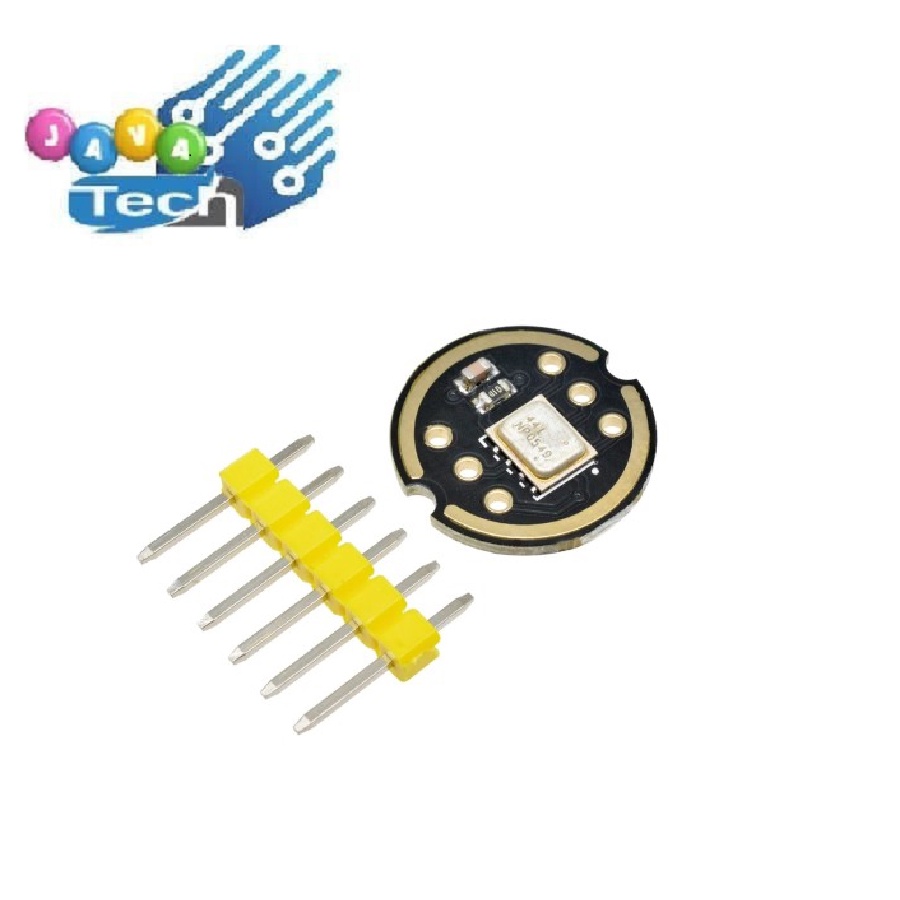

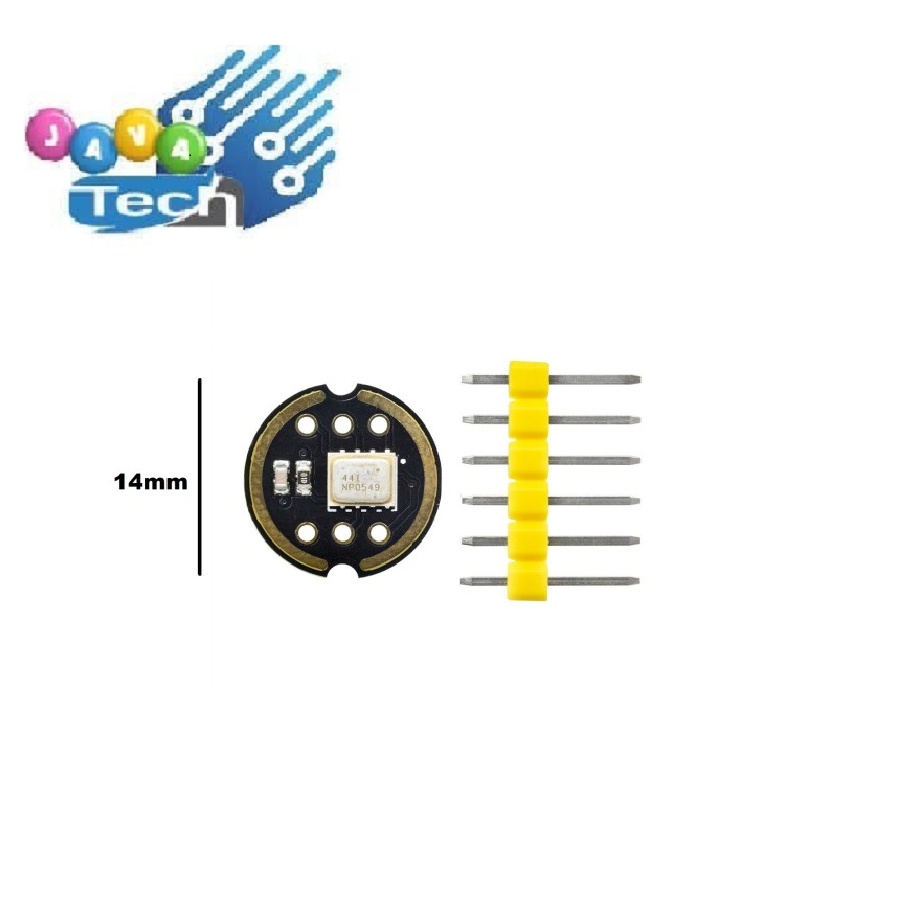

INMP441 Omnidirectional I2S Interface MEMS Microphone Sensor Module

Detail INMP441 Omnidirectional I2S Interface MEMS Microphone Sensor Module

Discription :
The INMP441 is a high-performance, low power, digital-output, omnidirectional MEMS microphone with a bottom port. The complete INMP441 solution consists of a MEMS sensor, signal conditioning, an analog-to-digital converter, anti-aliasing filters, power management, and an industry-standard 24-bit I²S interface. The I²S interface allows the INMP441 to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system. The INMP441 has a high SNR, making it an excellent choice for near field applications. The INMP441 has a flat wideband frequency response, resulting in natural sound with high intelligibility.

Aplications :
• Teleconferencing Systems
• Remote Controls
• Gaming Consoles
• Mobile Devices
• Laptops
• Tablets
• Security Systems

Features :
• Digital I²S Interface with High-Precision 24-Bit Data
• High SNR of 61 dBA
• High Sensitivity of -26 dBFS
• Flat Frequency Response from 60 Hz to 15 kHz
• Low Current Consumption of 1.4 mA
• High PSR of -75 dBFS
• Small 4.72 × 3.76 × 1 mm Surface-Mount Package
• Compatible with Sn/Pb and Pb-Free Solder Processes
• RoHS/WEEE Compliant
