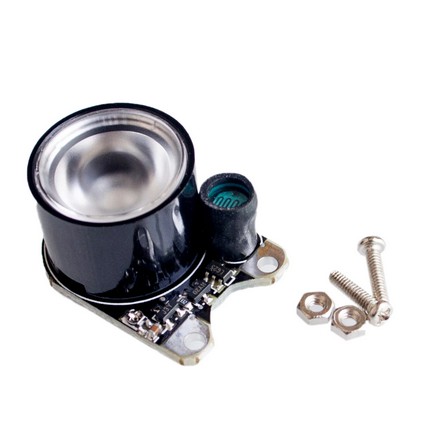

Infrared LED Light 3W for Raspberry Pi Night Vision Camera OV5647

Detail Infrared LED Light 3W for Raspberry Pi Night Vision Camera OV5647

Features:

3W high-power infrared LED.Light-sensing Infrared LED Board, Wider Field of View.Onboard photoresistor, the ambient light detector.Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED.Suitable for Raspberry Pi Night 500W Vision Camera .
Specifications:
Product Color: Black
Led: IR Led
Power: 3W
Application: Suitable for Raspberry Pi Night 500W Vision Camera
Package Weight: 20g

How to Use:
1.Connect the Infrared LED Board to the camera PCB by screws
2. The screw holes are used for both attachment and power supply
3. Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
4. When ambient light is lower than threshold value, the infrared LED is on, vice versa

Note :
1. Limited by the Raspberry Pi power supply, the ideal imaging distance is within 2m. When the distance is far than 2m, the image effect is not good.
2. The number of night vision camera applied to for Raspberry Pi is two. It is suggested to purchase 2 or even numbers.
