(infiniteforce.id) Papan Amplifier Audio Subwoofer 2.1 6wx2 + 25W Mini Bass HIFI YD1517P
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > (infiniteforce.id) Papan Amplifier Audio Subwoofer 2.1 6wx2 + 25W Mini Bass HIFI YD1517P
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

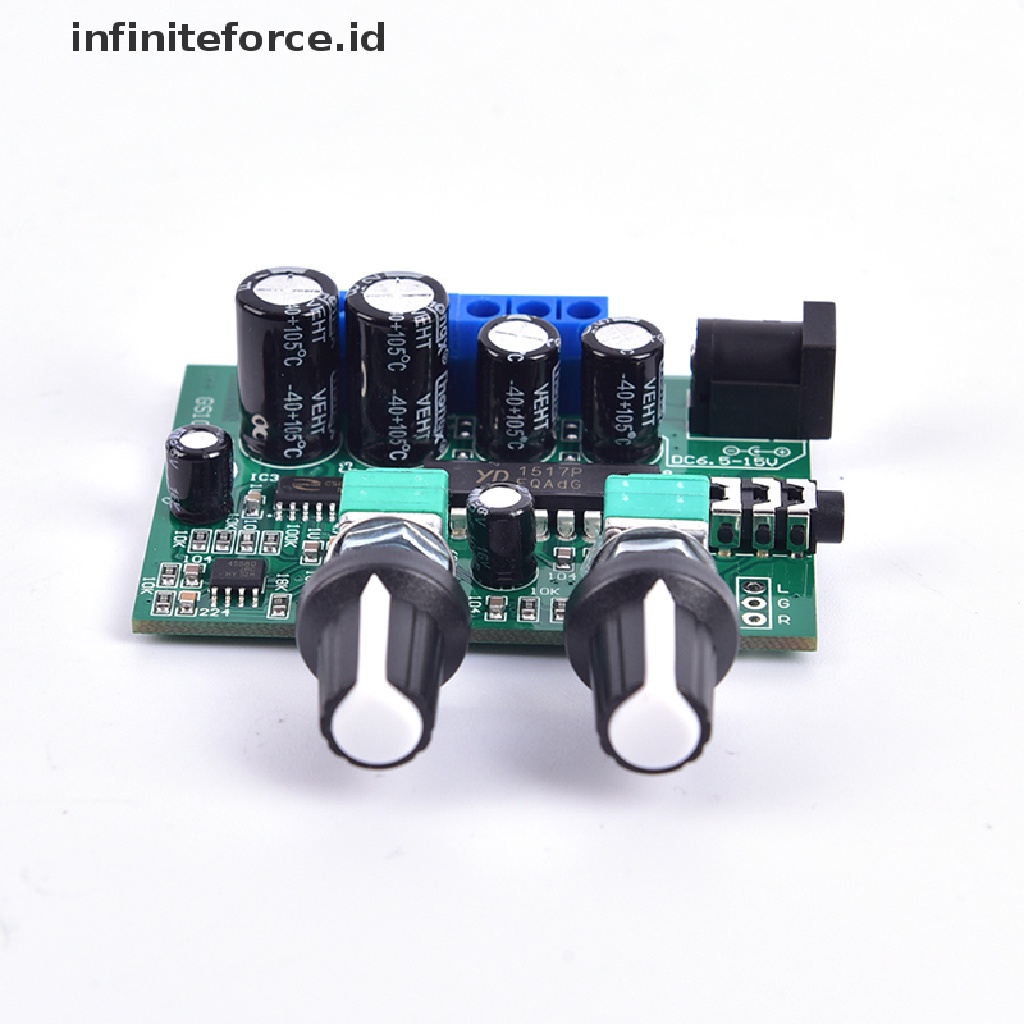

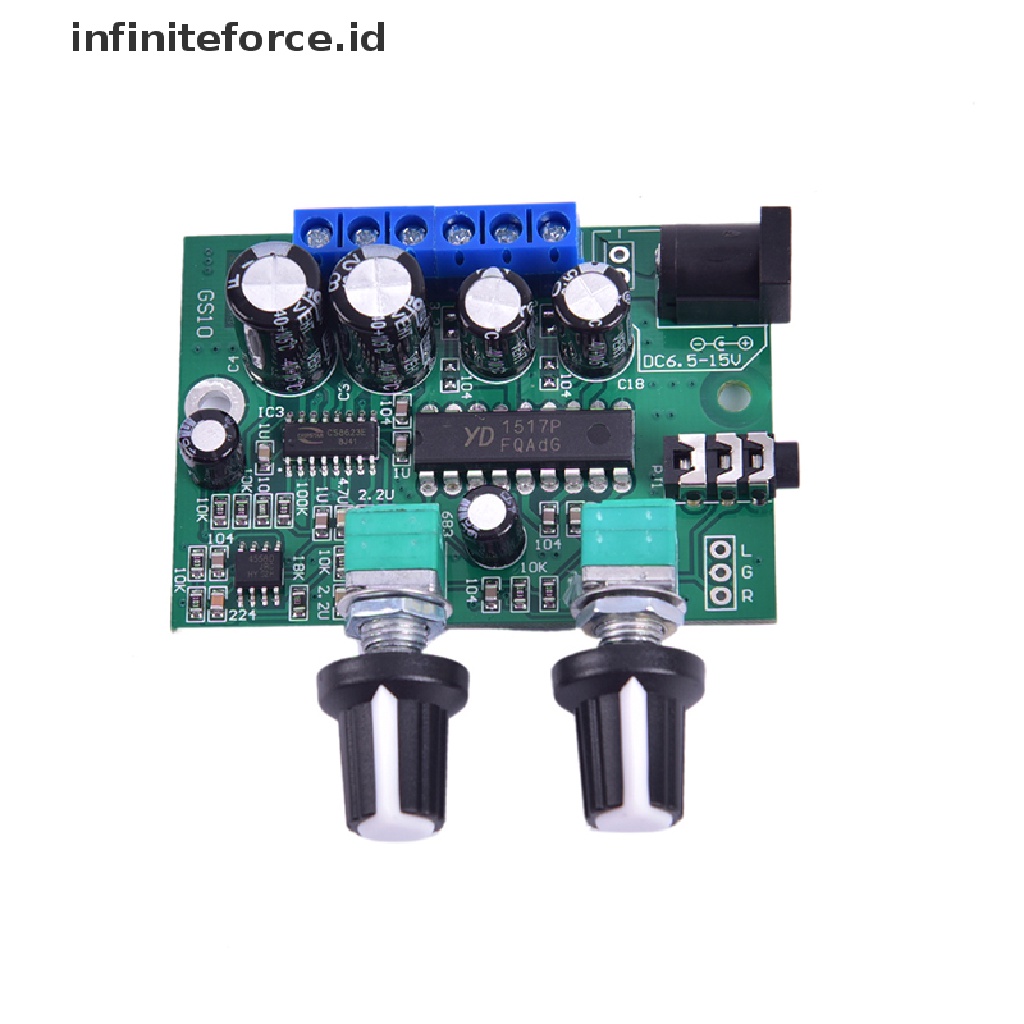

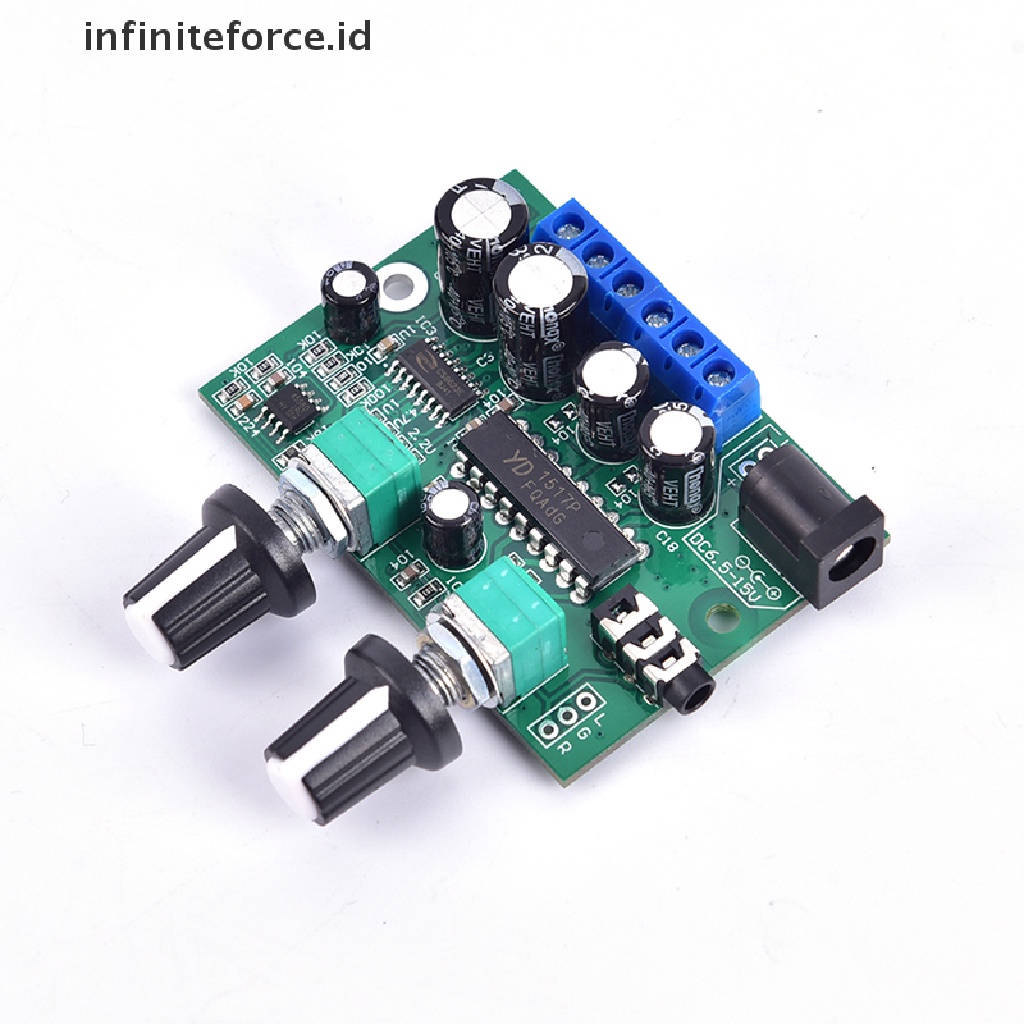

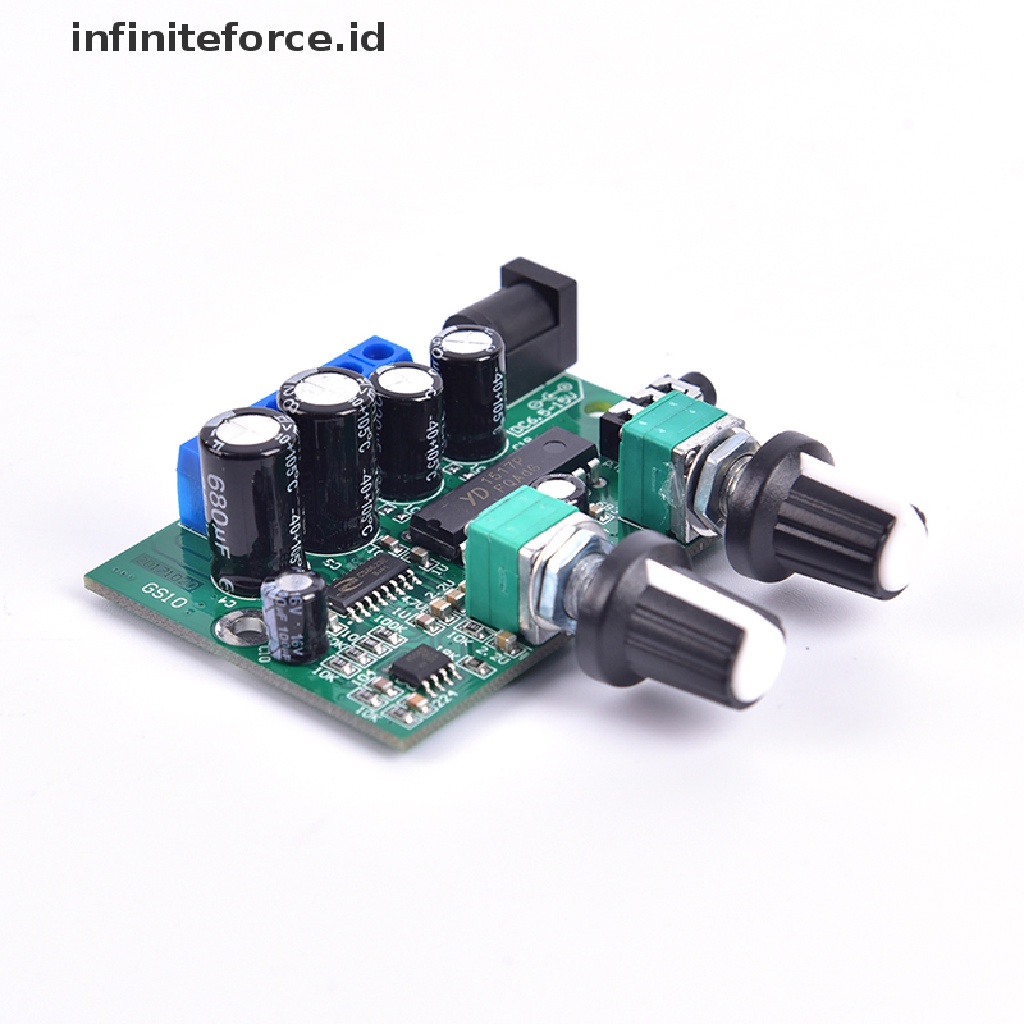

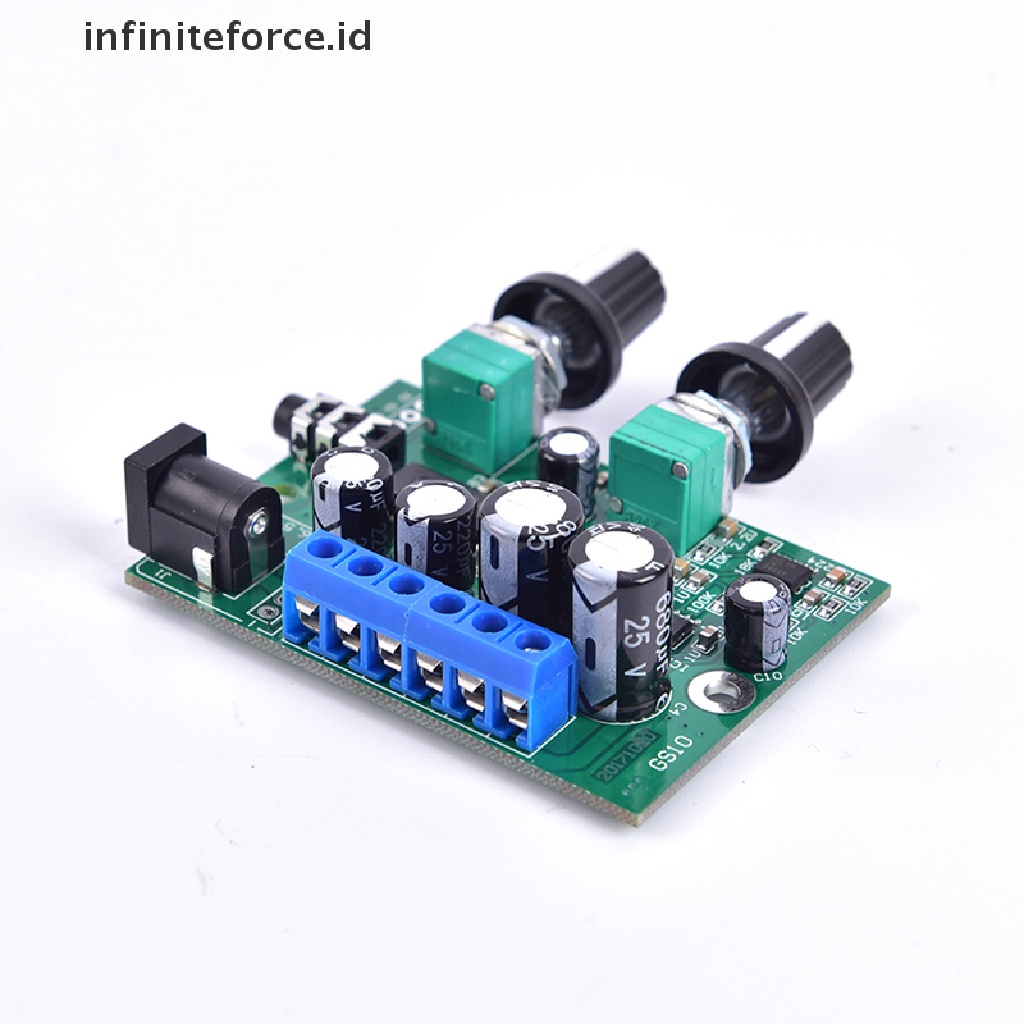

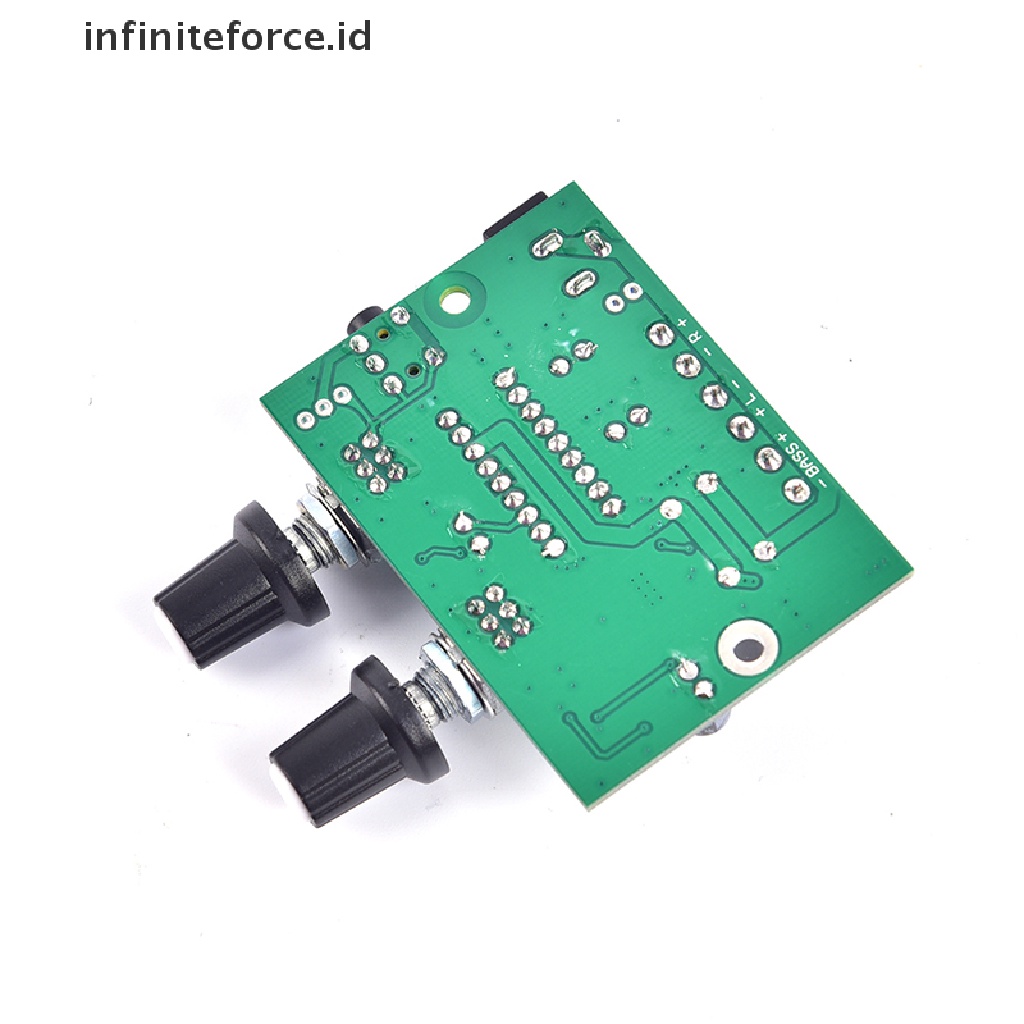

Detail (infiniteforce.id) Papan Amplifier Audio Subwoofer 2.1 6wx2 + 25W Mini Bass HIFI YD1517P
Feature:Input Power: DC DC6.5-15V (see the required output power setting), power adapter, switching power supply, battery can be, the recommended use of current in more than 3A.
Bass output power: maximum 25W, 4-6 inch, 4-6 Ohm 20W subwoofer is recommended.
Left and right channel output power: 6W+6W, it is recommended to use 2-4 inch, 4-8 Ohm 3-25W full frequency speaker.
The above power requires about 13.5V power supply.
The left and right channels use a low-power enthusiast audio dedicated chip YD1517P as an output stage, which really provides high quality results.
PCB material: FR-4 fiberglass board, thickness: 1.6mm.
Board size: 63x45x16mm (length x width x height) without potentiometer handle length.
Potentiometer shaft center distance: 24mm potentiometer mounting hole diameter needs 7mm.
Input interface: 3.5mm socket.
Packaging Including:
1xPC Amplifier board
2xPCS knobs(color send randomly)
Gambar produk
