Detail Industrial Pressure Transmitter 0-10Bar 10 Bar Output 4-20mA

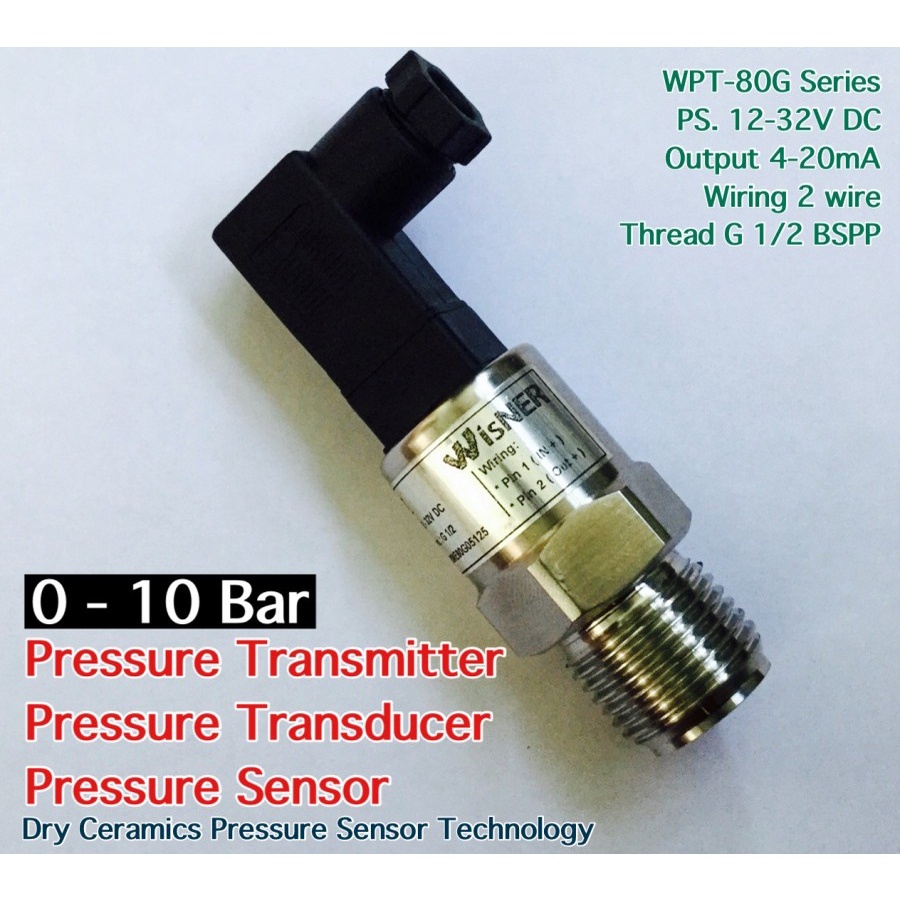

Industrial Pressure Transmitter 0-10Bar 10 Bar Output 4-20mA
INDUSTRIAL PRESSURE TRANSMITTER 0-10 BAR 1 MPa ****** Output 4-20mA, Power Supply 12-32V DC, 2 Wire, Drat G 1/2 BSPP ****** High Quality Pressore sensor technology Application for Corrosive or Non Corrosive Gas and Liquid ***
Specifications:
Sensor technology: Dry Ceramics pressure sensor
Capacity Range:0-10bar(gauge pressure)
Comprehensive Precision:0.5%FS
Output Signal:4-20mA
Overload Capacity: up to 50 times
Using Temperature Range:- 20 to 85 Deg C
Power Supply:12-32VDC;
Pressure Medium: Corrosive or Non-corrosive gas, liquid, chemicals, air, water and etc
Temperature Effect on Zero:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Temperature Drift on Sensitivity:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Shock Resistance:1000g;
Housing Material:Stainless Steel;
Pressure Connection: Mini DIN type;
Blast Proof Class:ExiaIICT6;
Long-term Stability:less than 0.1%FS/year;
Defend Grade:IP68;
Pressure Connection: G 1/2 BSPP
Cable Connection: Pin 1 (IN+); Pin 2 (OUT+)
