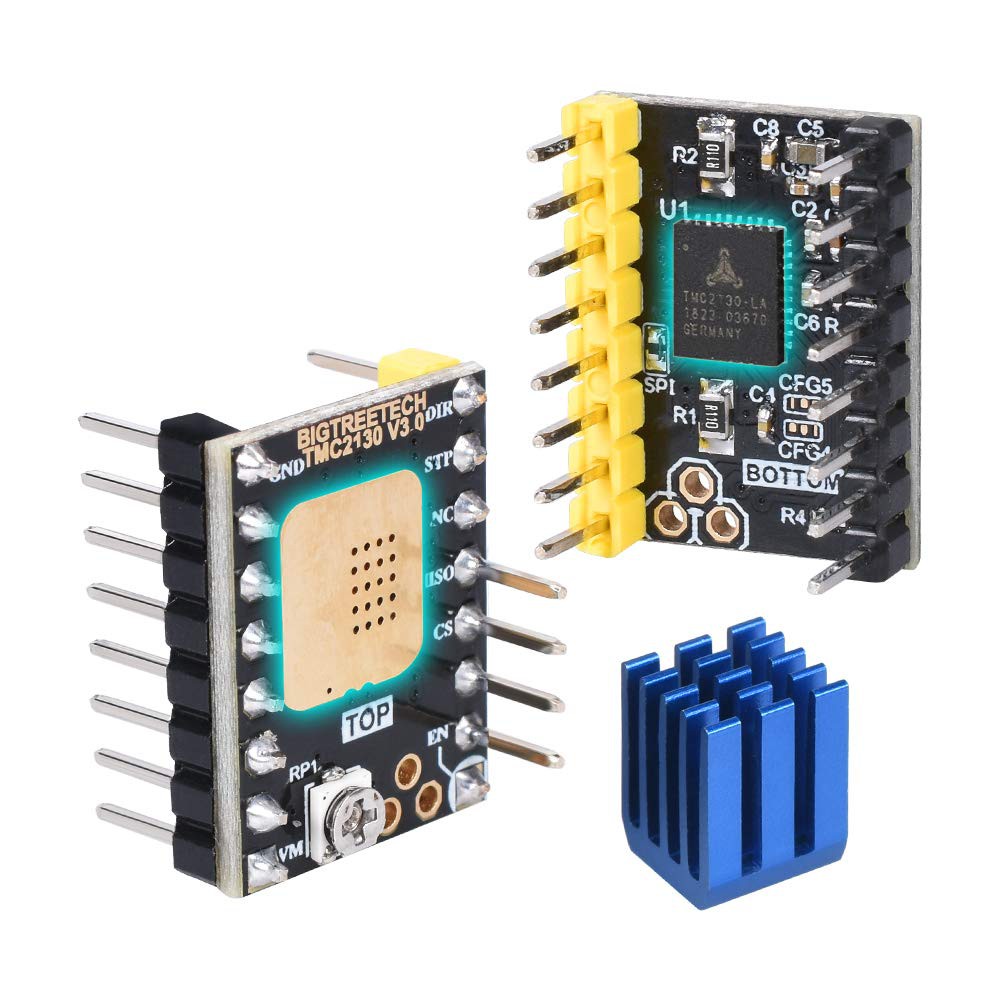

INDOCART Driver-Stepper Motor 3D Printer BTT TMC2130 V3.0

Detail INDOCART Driver-Stepper Motor 3D Printer BTT TMC2130 V3.0

INDOCART Driver-Stepper Motor 3D Printer BTT TMC2130 V3.0

Kode Produk:
V-F-DRV-TMC2130V3.0

Bisa digunakan pada type:
BTT SKR V1.4 Board
BTT SKR V1.4 Turbo Board
BTT SKR PRO V1.2 Board
BTT GTR V1.0 Board

Specification :
Configuratuon : STEP/ DIR or SPI
Microsteps : Up to 1/256
MicroPlyer : 1/256
Logic voltage : 3.3V/5V
Input voltage range : 12V/24V DC
Step/Dir Interface : With microstep interpolation
Motor Phase Current : 1.2A RMS, 2.0A Peak
COOLSTEP : Current control for energy savings up to 75%
Passive Braking : And freewheeling mode

- Good heat dissipation
Large heat dissipation area, good heat dissipation effect.
- Ultra-quiet
StealthChop can driver the motor to work under extreme silence.
- Avoid losing steps and jittering
SpreadCycle : The motor controlled by the PWM chopper mode operated more smoothly and without Jitter.
It can effectively avoid problem such as running deviation losing step and fault caused by the overlode of the chip.
- With limit switch function
Additional pins are provided with limit switch function.
- Immersion Gold process
Immersion Gold process, the better antioxidant.

Pastikan anda mendapatkan kualitas terbaik hanya di IndoCart.

Gambar produk
