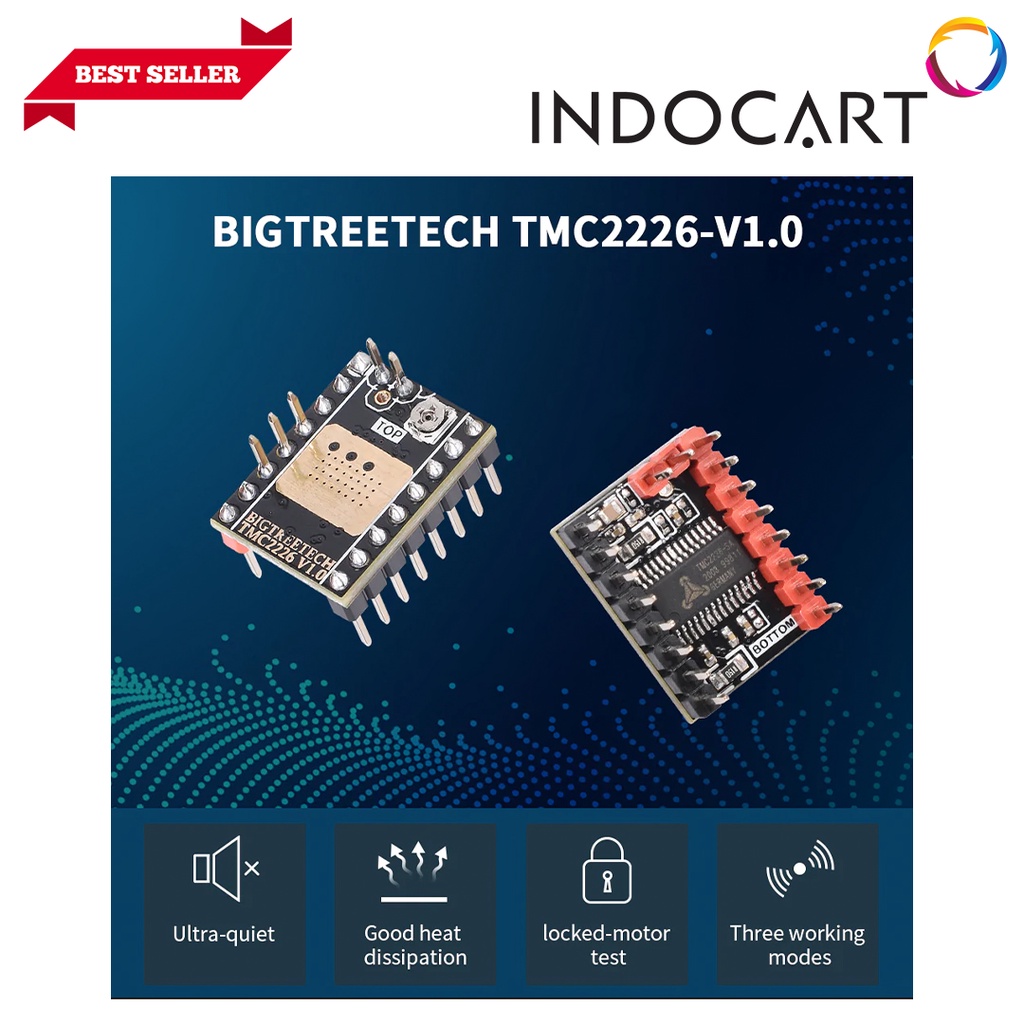

INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2226 V1.0

Detail INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2226 V1.0

INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2226 V1.0

Kode Produk:
V-F-DRV-TMC2226

The TMC2226 is an ultra-silent motor driver IC for two phase stepper motors. TRINAMICs sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow highly dynamic motion while adding. StallGuard for sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Store application tuning to OTP memory. Industries most advanced STEP/DIR stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.

Parameter description

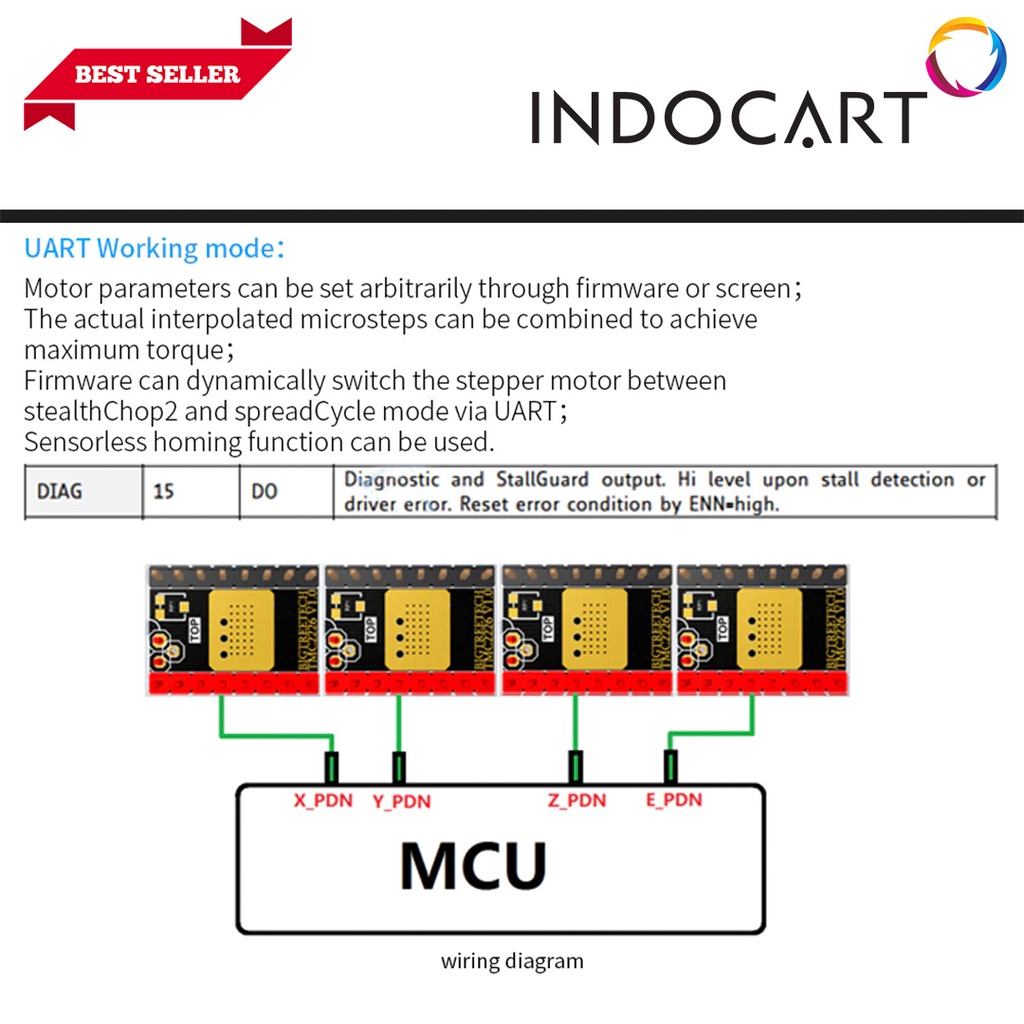

Oprating Mode: STEP/DIR or UART
Power Voltage (VM): 4.75V-28V DC
Peak Current: 2.8A
Current RMS: 2A
Max Microsteps: 256

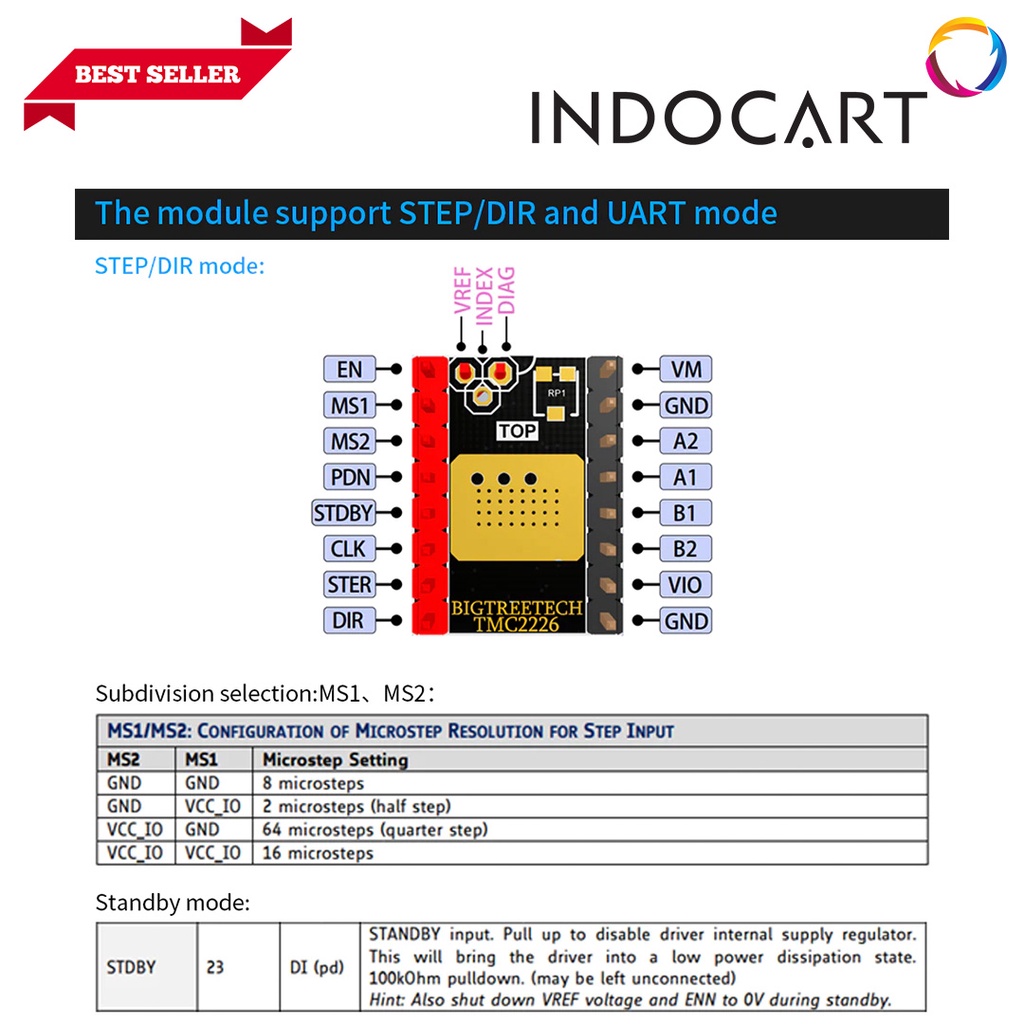

Microstep Setting: 2, 4, 8, 16 (can be divided into 256)

Note:
1.When selecting the working mode of hardware, use the soldering iron carefully to prevent scalding of hands. After treatment, carefully observe whether there is residual tin slag in the module, and clean it to prevent it from causing the module short circuit burning.
2.Pay attention to the line sequence and 10 port when wiring. Connecting the wrong line will directly cause the drive to not work, corresponding to the above connection carefully.
3.When inserting the driver into the motherboard, pay attention to the direction of the driver. Do not insert it backwards to prevent the driver from being burned.

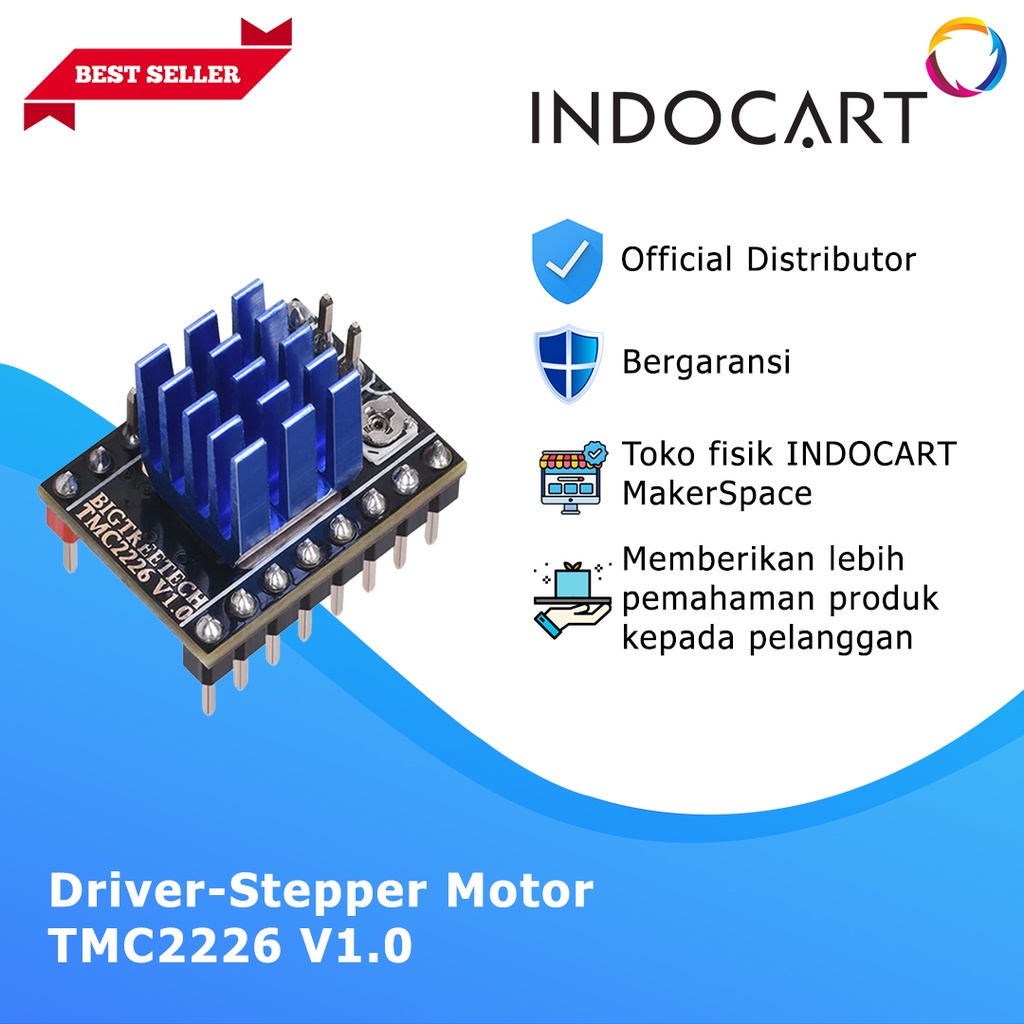

4.Be sure to do the heat dissipation work before the driving work (heat sink and cooling fan).

Pastikan anda mendapatkan kualitas terbaik hanya di IndoCart.

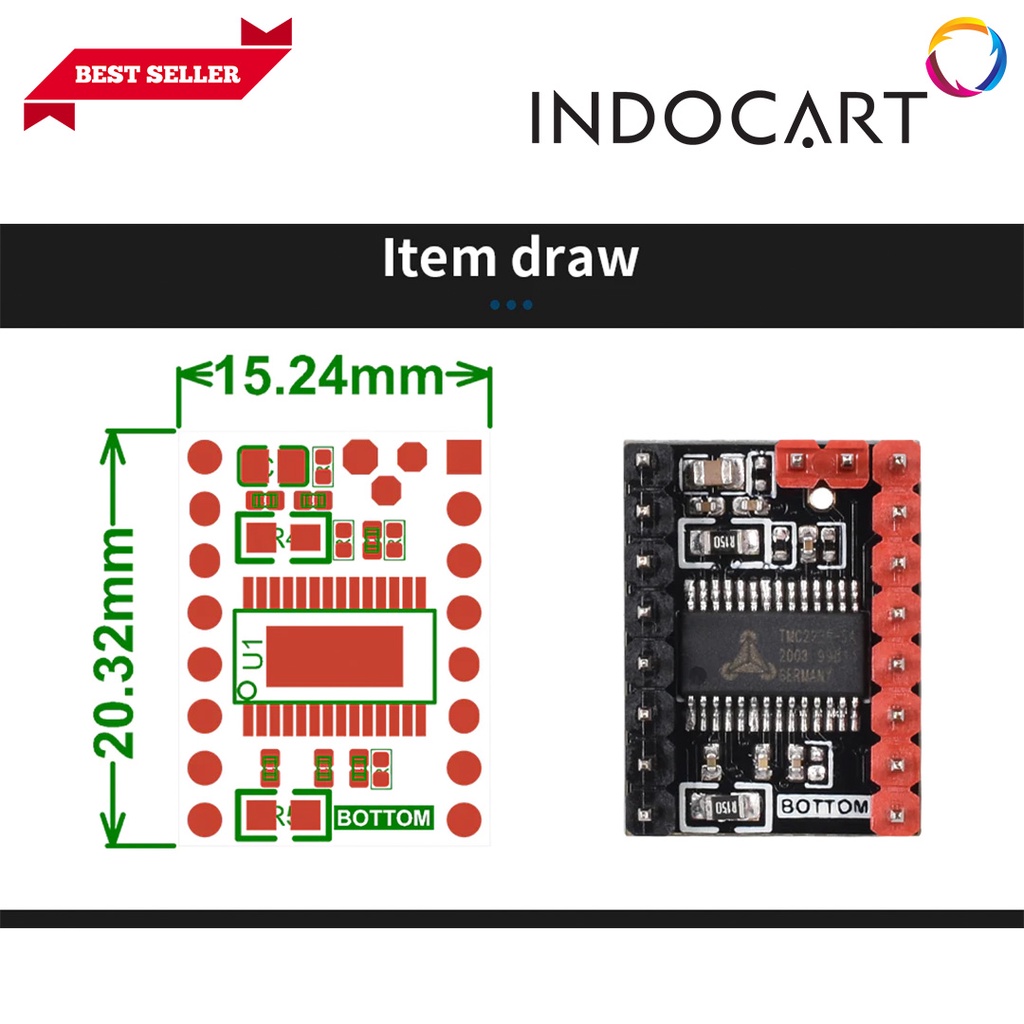

Gambar produk
