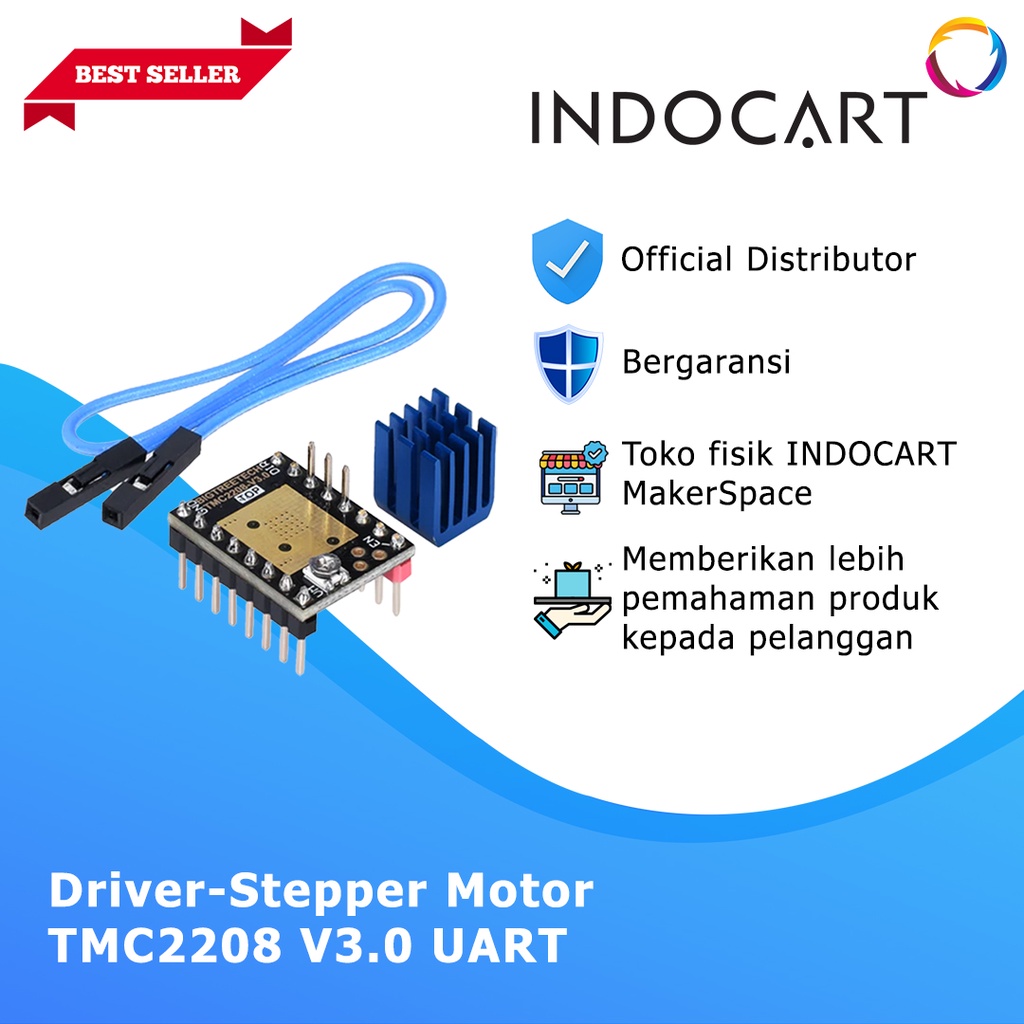

INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2208 V3.0 UART
Deskripsi singkat
Komputer & Aksesoris > Printer & Scanner > 3D Printer > INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2208 V3.0 UART
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2208 V3.0 UART
INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2208 V3.0 UARTKode Produk:
V-F-DRV-TMC2208V3.0-UART
TMC2208 V3.0 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle high chopper frequency, dcStep , stallGuard2 stall detection technology, CoolStep current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology.

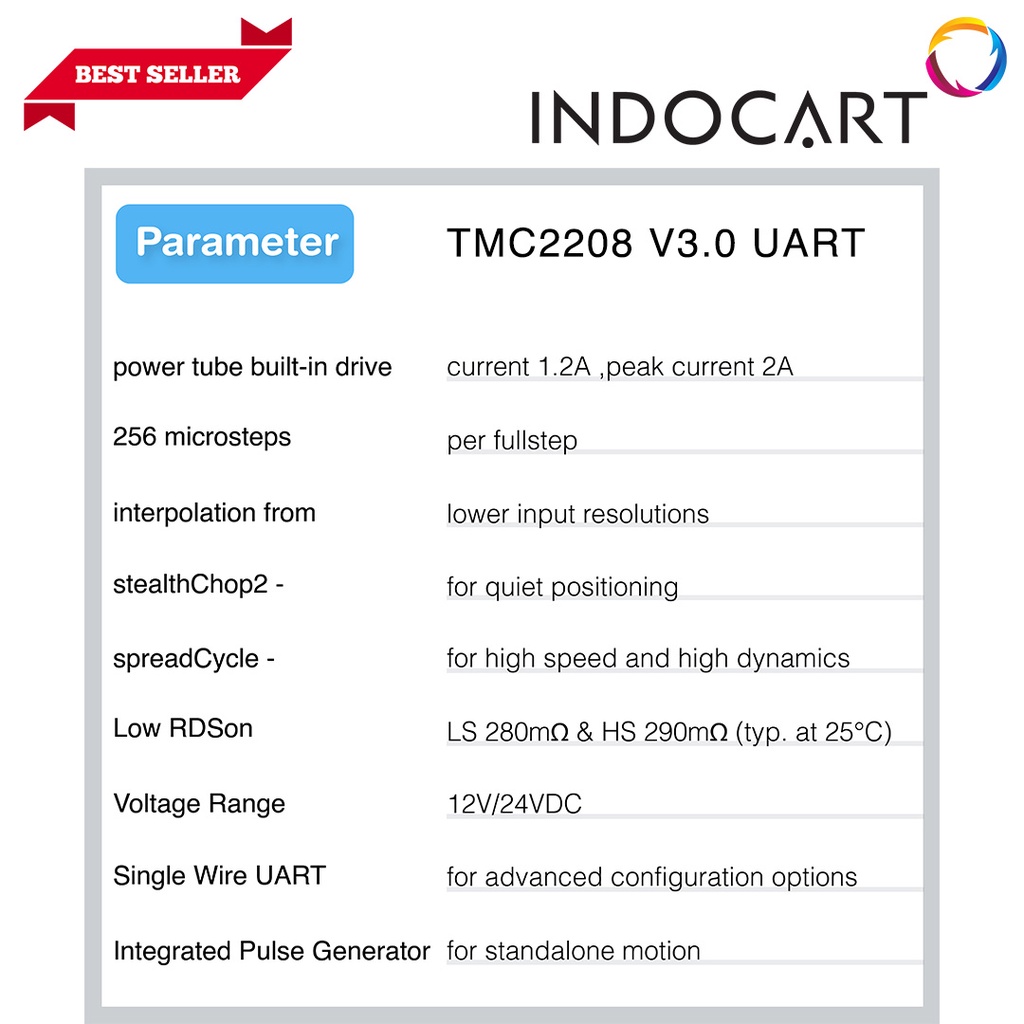

Parameter:
Configuration: CFG or UART
Microsteps: Up to 1/256
MicroPlyer: 1/256
Logic Voltage VI0: 3-5V
Motor Voltage : 5.5-36V
Motor Phase Current: 1.2A RMS, 2.0A Peak
Note:
TMC2208 v3.0 has two modes from our factory : step / dir and UART mode.
Customers can choose according to your own needs.
The user who purchases the step / dir mode driver shall perform the following hardwa re operations on the driver module before wiring (the user who purchases the UART mode driver does not need any welding operations): https://c-3d.niceshops.com/upload/file/TMC2208-V3.0_manual.pdf
