INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2225 V1.0

Detail INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2225 V1.0

INDOCART Driver-Stepper Motor 3D Printer Bigtreetech TMC2225 V1.0

Kode Produk:
V-F-DRV-TMC2225

The TMC2225 are ultra-silent motor driver ICs for two-phase stepper motors. Their pinning is compatible to a number of legacy drivers. TRINAMICs sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow for highly dynamic motion. Integrated power-MOSFETs handle motor current up to 1.4A RMS. Protection and diagnostic features support robust and reliable operation. A simple to use UART interface opens up more tuning and control options. Application specific tuning can be stored to OTP memory. Industries’ most advanced STEP/DIR stepper motor driver family upgrades designs to noiseless and most precise operation for cost_x0002_effective and highly competitive solutions.

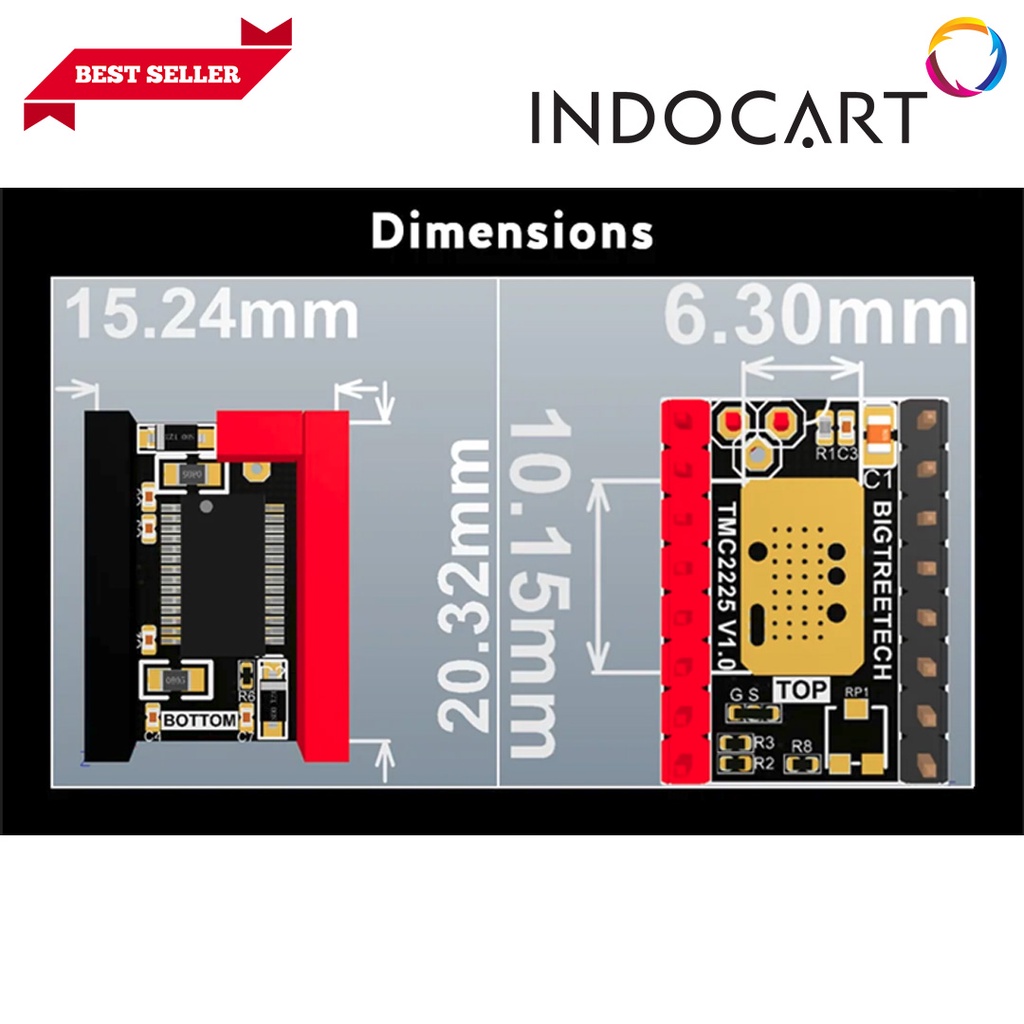

Parameter description

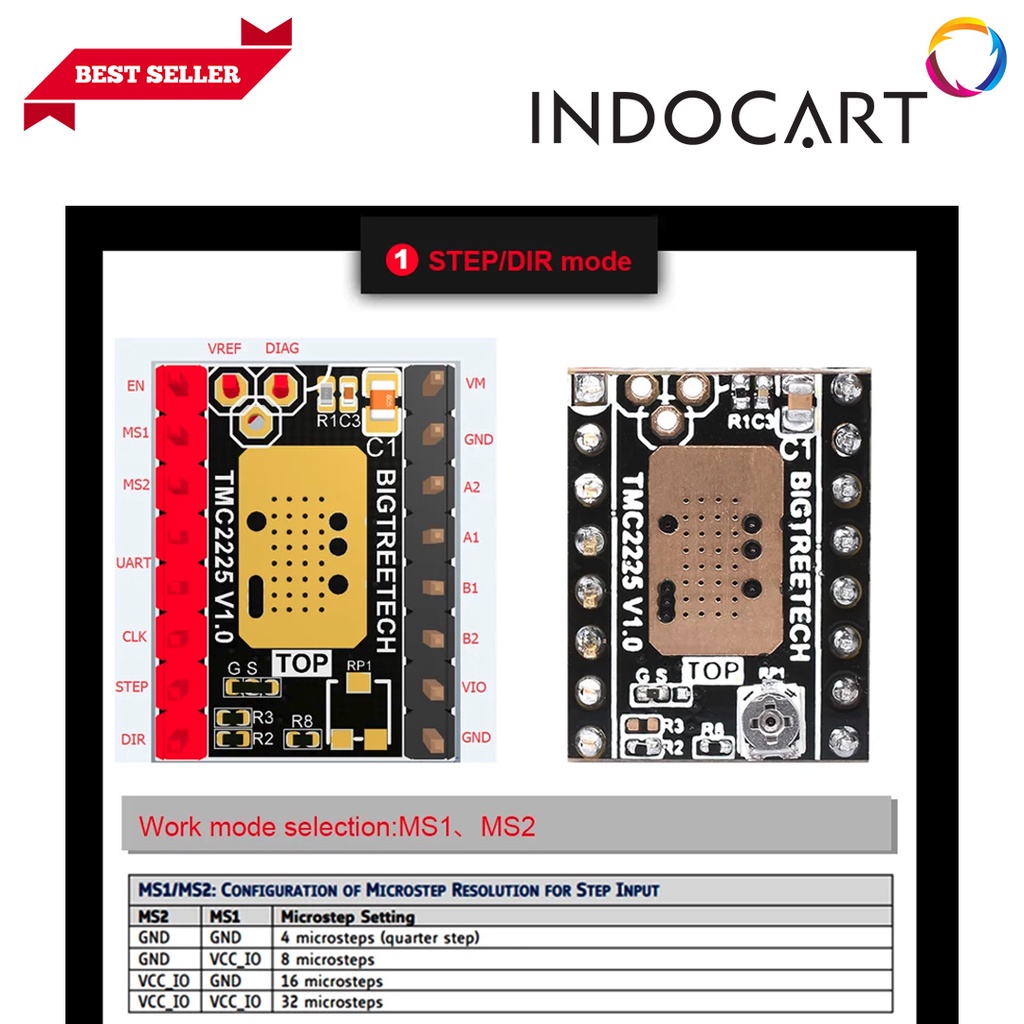

Oprating Mode: STEP/DIR or UART
Power Voltage (VM): 4.75V-28V DC
Peak Current: 2.8A
Current RMS: 2A
Max Microsteps: 256
Microstep Setting: 2, 4, 8, 16 (can be divided into 256)

Note:

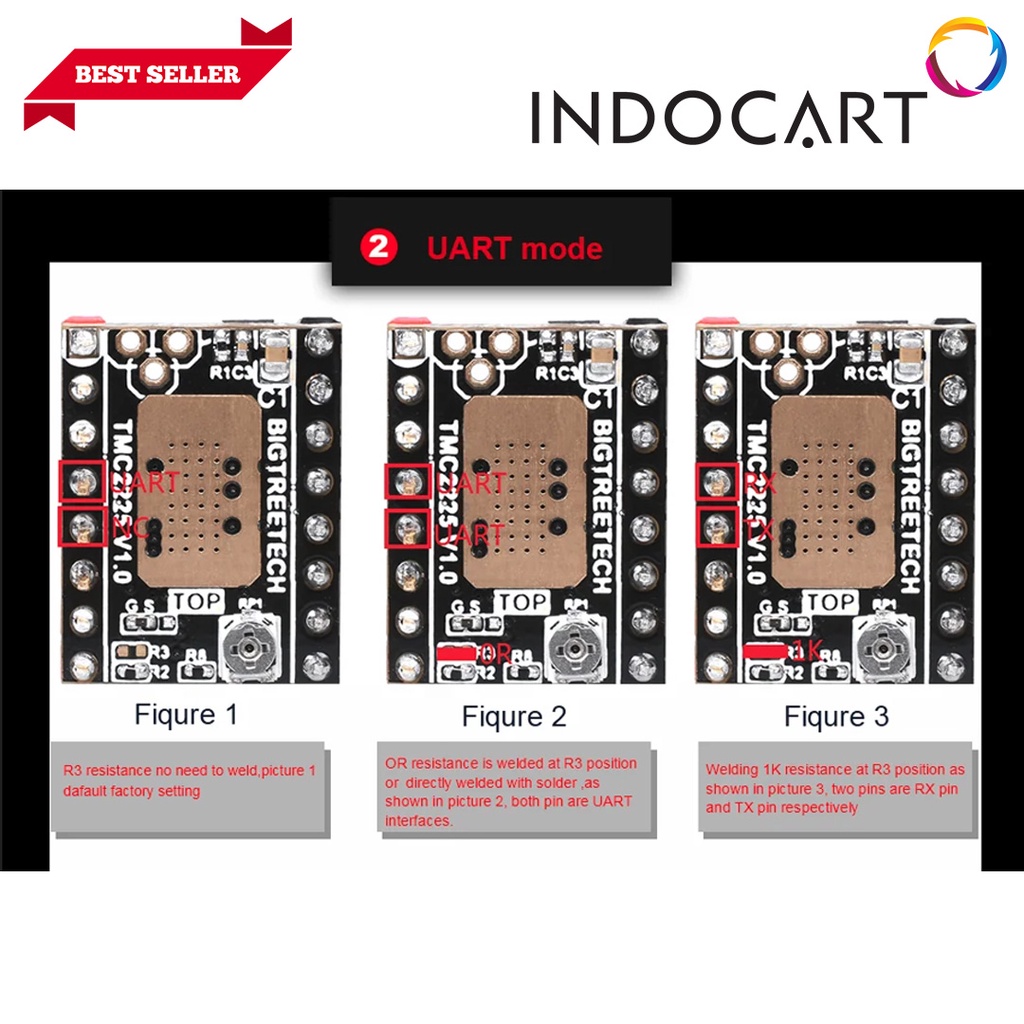

1.When hardware chooses UART working mode, cautiously use soldering iron to prevent scalding hands. After treatment, carefully observe whether there is residual tin slag in the module. It must be cleaned up to prevent short circuit burning of the module.
2.Pay attention to the line sequence and IO port when wiring. If the wrong line is connected, the drive will not work.
3.When inserting drive into the main board, pay attention to see the direction of drive, can not insert backward, to prevent drive from burning.
4.Make sure to take action in heat dissipation (heat sink and heat dissipation fan) before the driver works.

Pastikan anda mendapatkan kualitas terbaik hanya di IndoCart.
