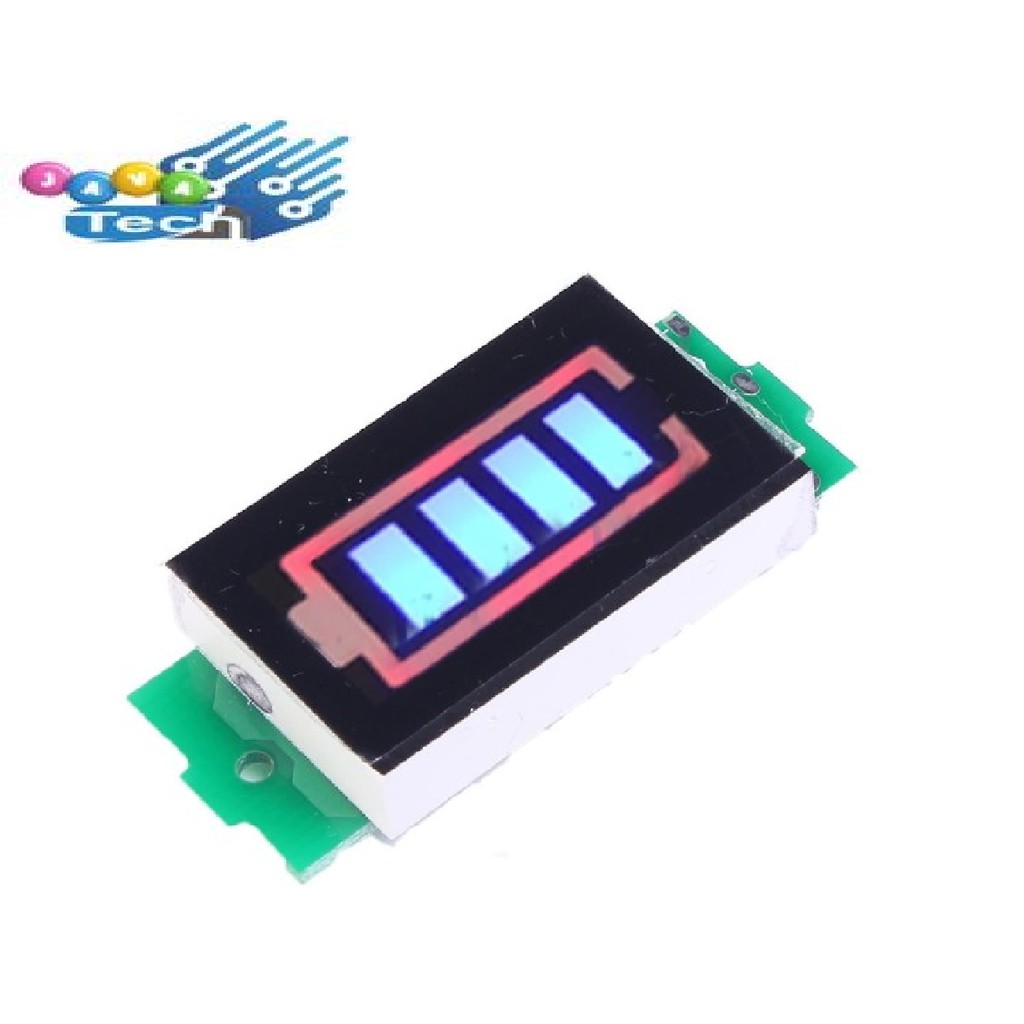

Indikator Baterai 2S 3.7V Lithium Battery Capacity Indicator LED

Detail Indikator Baterai 2S 3.7V Lithium Battery Capacity Indicator LED

Deskripsi Indikator Baterai 2S 3.7V Lithium Battery Capacity Indicator LED
Features:
2s; 7.4V-8.4V lithium battery detection
Battery type electricity quantity display
Wide application fields: lithium battery
Using Method: connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity
Digital Color: outline red,display block blue (when battery electricity quantity is full,it will be all on)

Display Electricity Quantity Parameter:
When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity)
When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery

Gambar produk
